Exhaust Gas RECIRCULATION (EGR): Notes
WARNING: This page is about a different car, the 1993 Toyota Celica. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

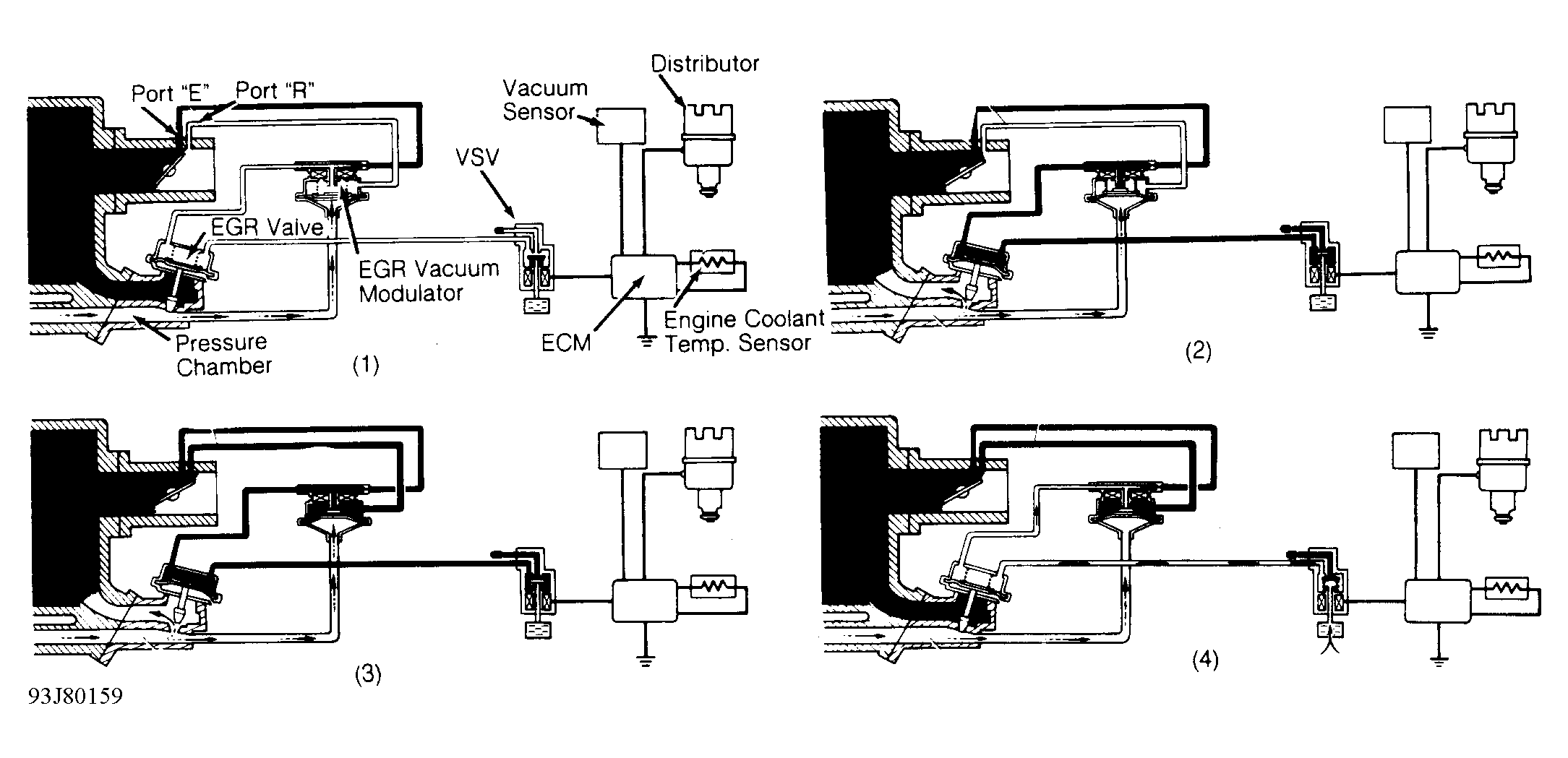

EGR systems contain different components and have different operating parameters depending on application. See Figure-63. When testing EGR system and components, use proper illustration to determine component location.
