Fuel Injector Solenoid Resistor (Turbo)
WARNING: This page is about a different car, the 1993 Toyota Celica. However, it is still accessible from the selected car via links, so may be relevant.
- Ensure ignition is off. Disconnect fuel injector solenoid resistor electrical connector. See FUEL INJECTOR SOLENOID RESISTOR LOCATION table.NOTE: Fuel injector solenoid resistor may also be identified using appropriate illustration in THEORY/OPERATION article. On Celica Turbo, ensure proper resistor is checked, as fuel pump resistor is located near fuel injector solenoid resistor.

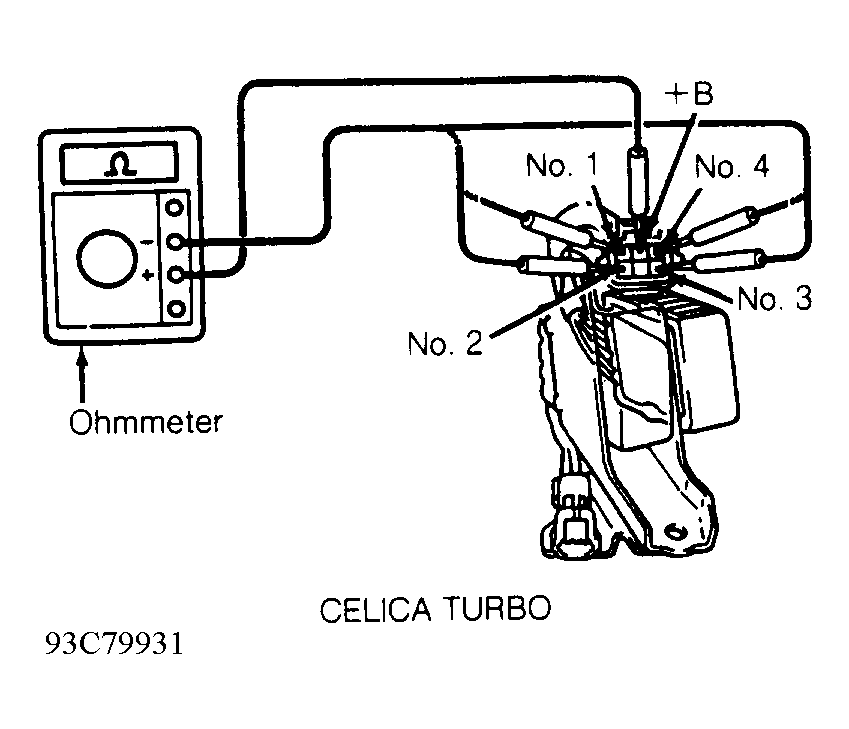

- Using ohmmeter, measure resistance between terminal +B and other fuel injector solenoid resistor electrical terminals. See Fig 1. Replace fuel injector solenoid resistor if resistance is not within specification. See FUEL INJECTOR SOLENOID RESISTOR SPECIFICATIONS table.
FUEL INJECTOR SOLENOID RESISTOR LOCATION
| Application | Location |
|---|---|
| Celica Turbo | Driver's Side Front Corner Of Engine Bay & Contains 5-Wire Connector |
FUEL INJECTOR SOLENOID RESISTOR SPECIFICATIONS
| Application | Ohms |
|---|---|
| Celica Turbo | 4-6 |
