Code 71 - EGR System Malfunction

WARNING: This page is about a different car, the 1993 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

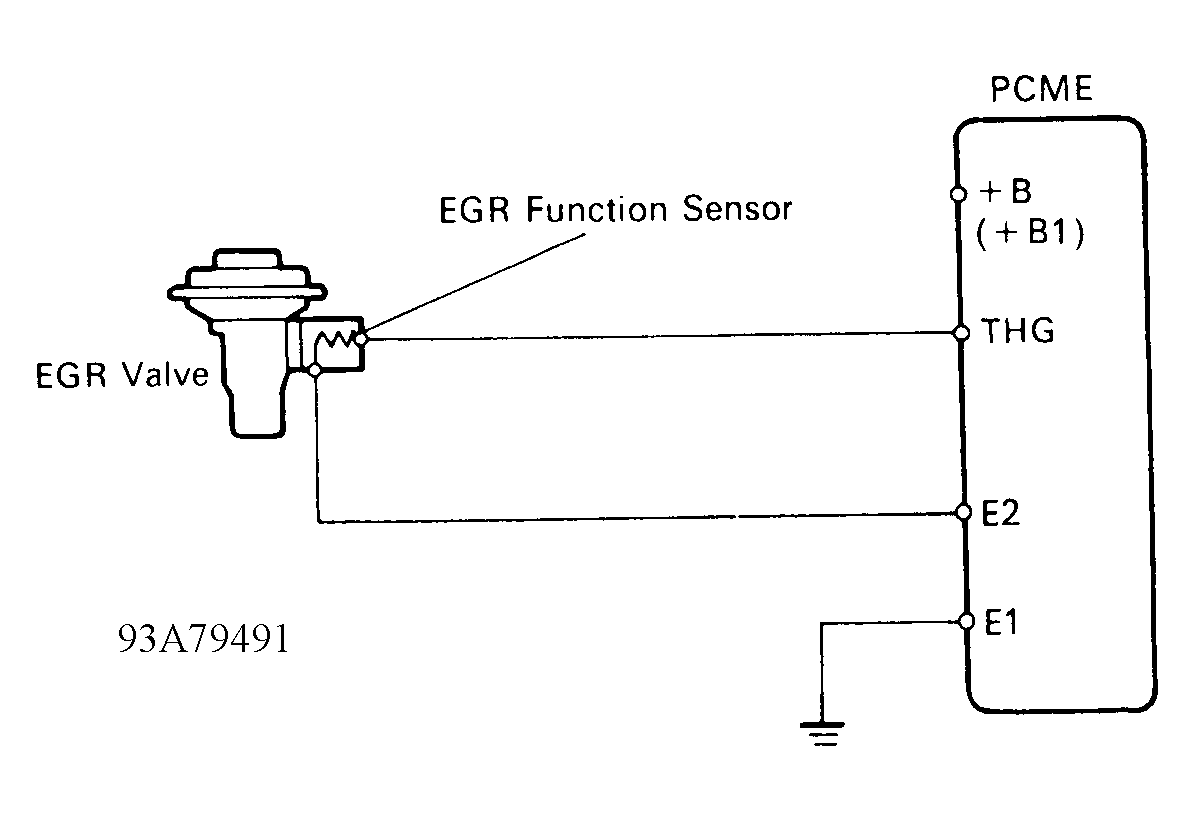

Fig 1: Code 71 Schematic - EGR System Malfunction
G93A79491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

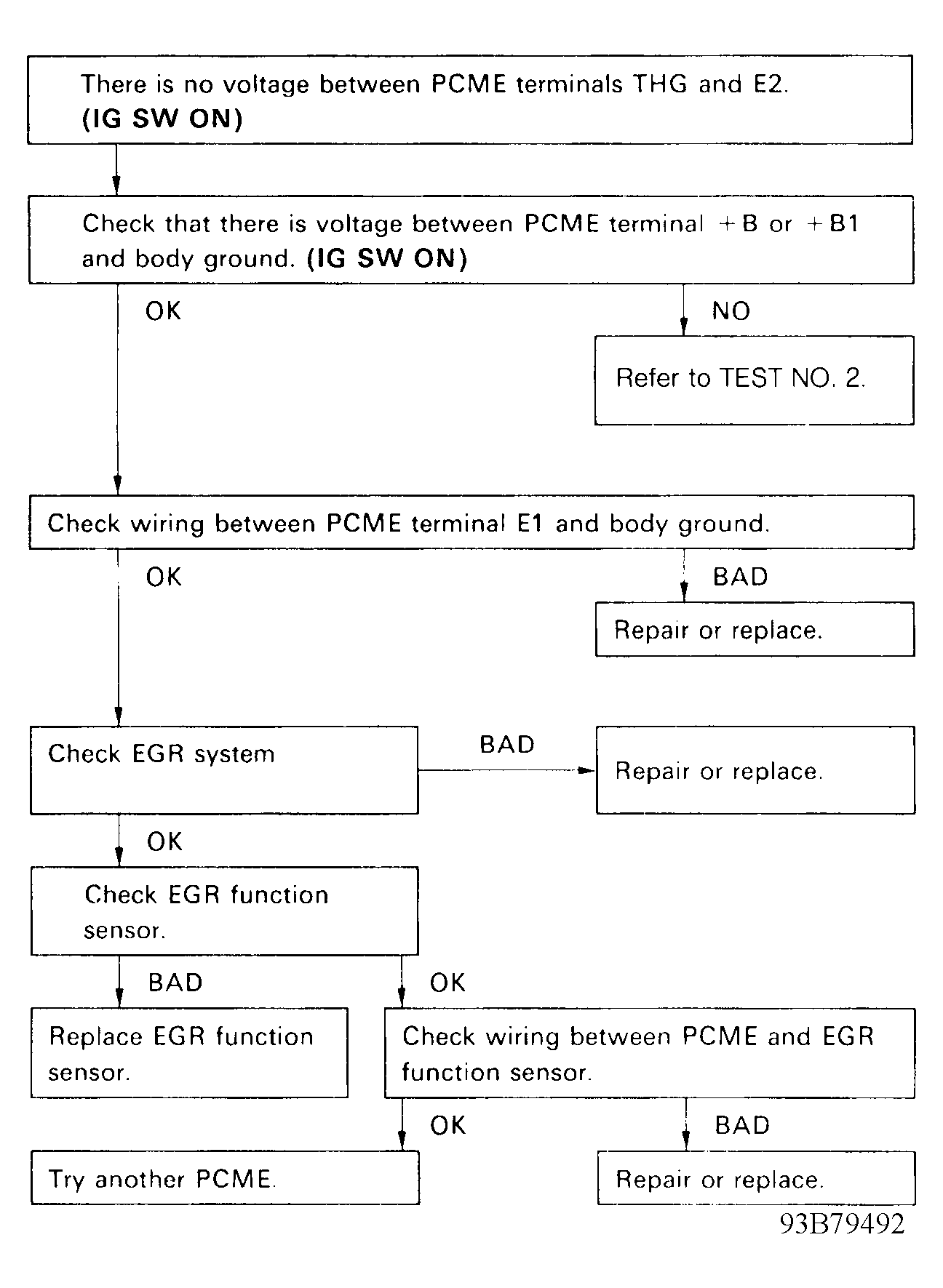

Fig 2: Code 71 Flow Chart - EGR System Malfunction
G93B79492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
