Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

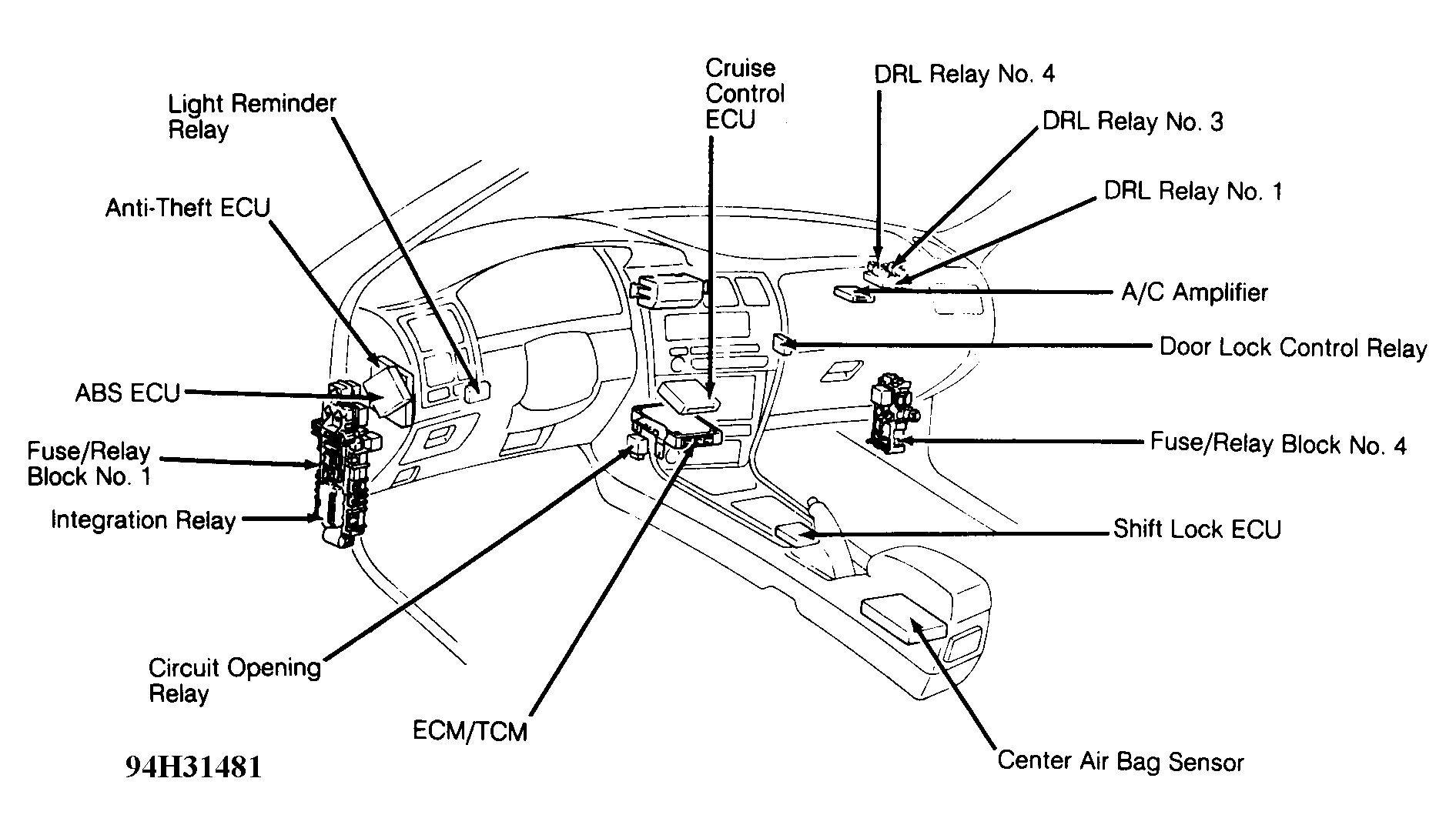

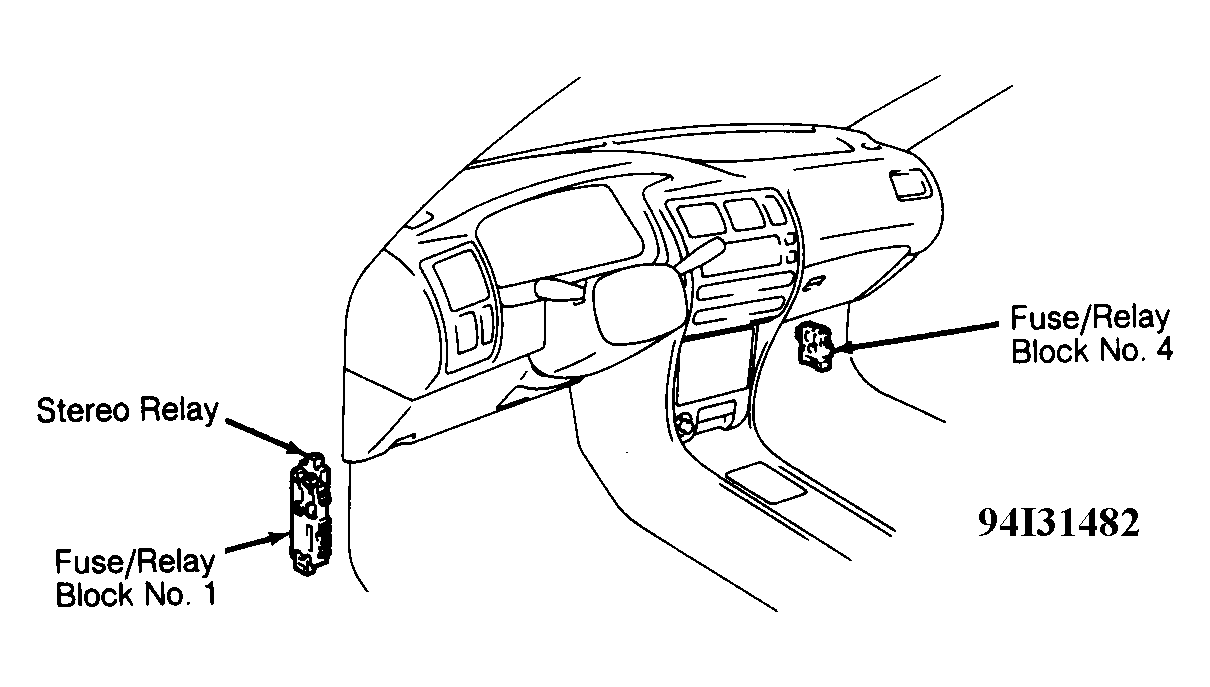

Fuse/Relay Block No. 1 Behind left kick panel. See Figure & Figure .
Fuse/Relay Block No. 2 On left front inner fender panel, near shock tower. See Figure.
Fuse/Relay Block No. 4 Behind right kick panel. See Figure & Figure .
Fuse/Relay Block No. 5 On left front inner fender panel, ahead of fuse/relay block No. 2. See Figure.
Fuse/Relay Block No. 6 Behind right headlight. See Figure.
