Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS ECU | Behind left side of dash. See Figure. |
| Anti-Theft ECU | Behind left side of dash. See Figure. |
| Cruise Control ECU | Behind center of dash, forward of center console. See Figure. |

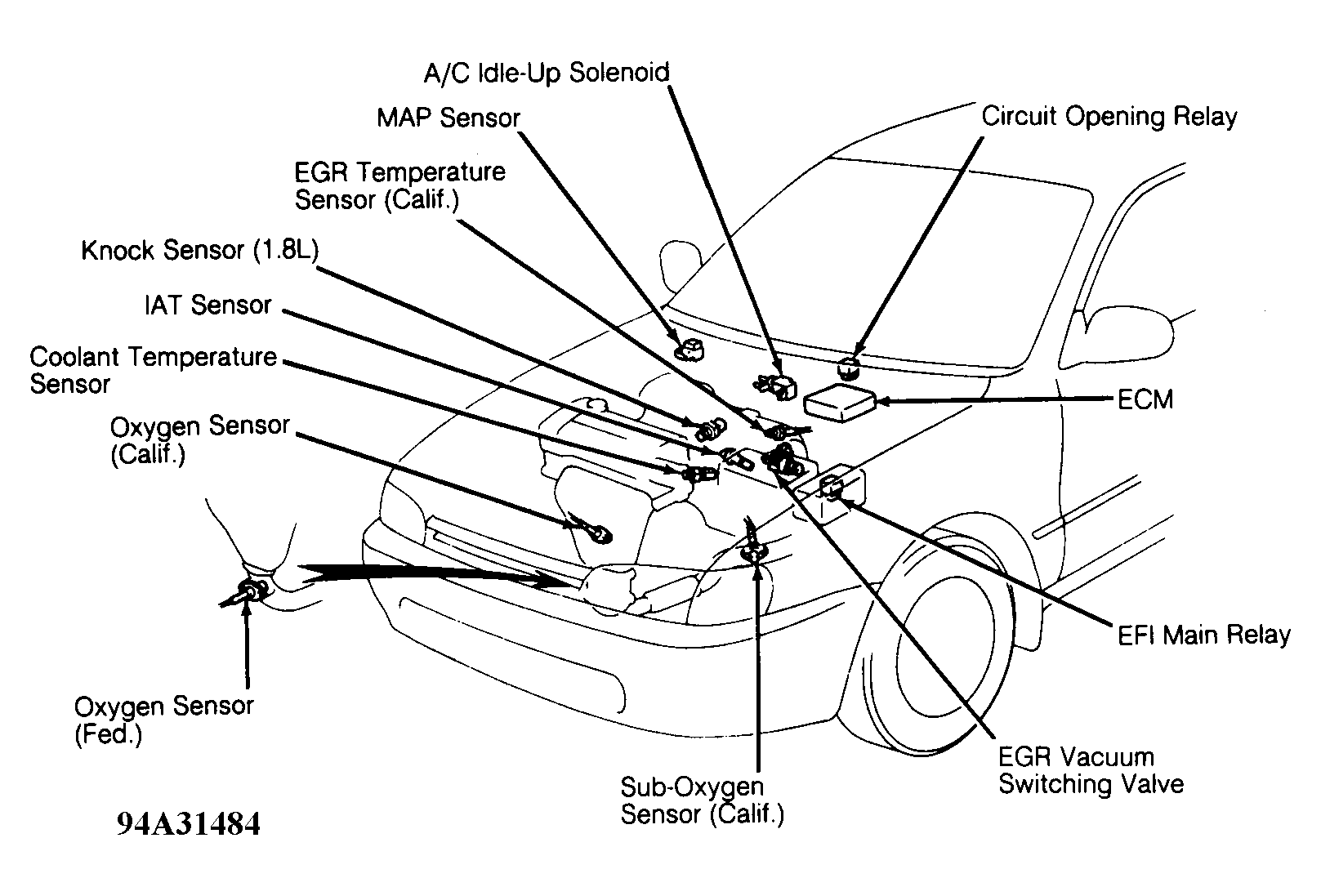

| ECM (Engine Control Module) | Under center of dash, behind center of console. See Figure & Figure . |
| Shift Lock Control ECU | Under center console. See Figure. |
| Transmission Control Module (TCM) | Under center of dash, behind center of console. See Figure. |
