Diagnostic Circuit Check

CAUTION: Perform all voltage measurements with ECM harness connector installed. Use a high-impedance DVOM (10,000-ohm minimum). Verify battery voltage is greater than 11 volts.

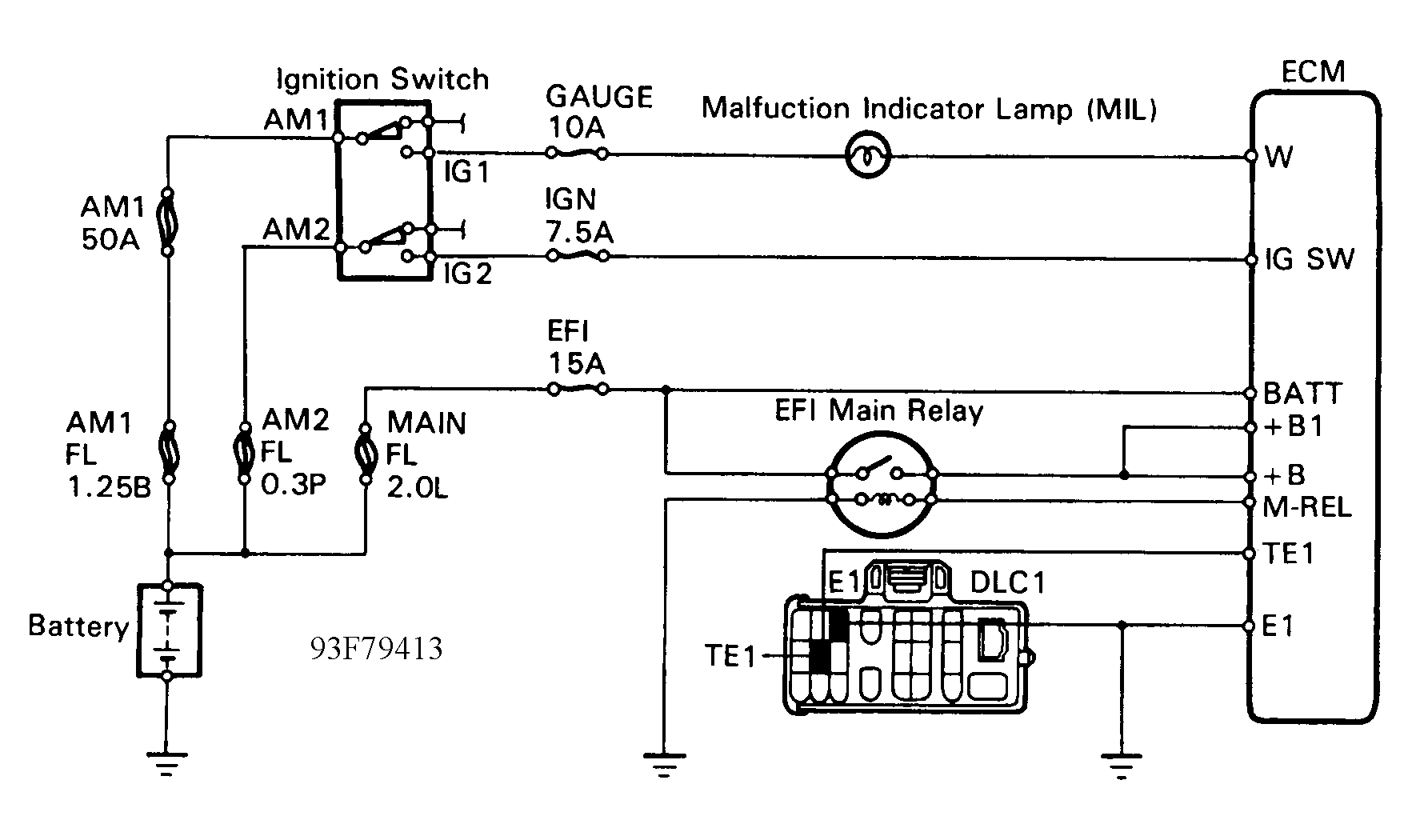

Fig 1: Diagnostic Circuit Check - Schematic
G93F79413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

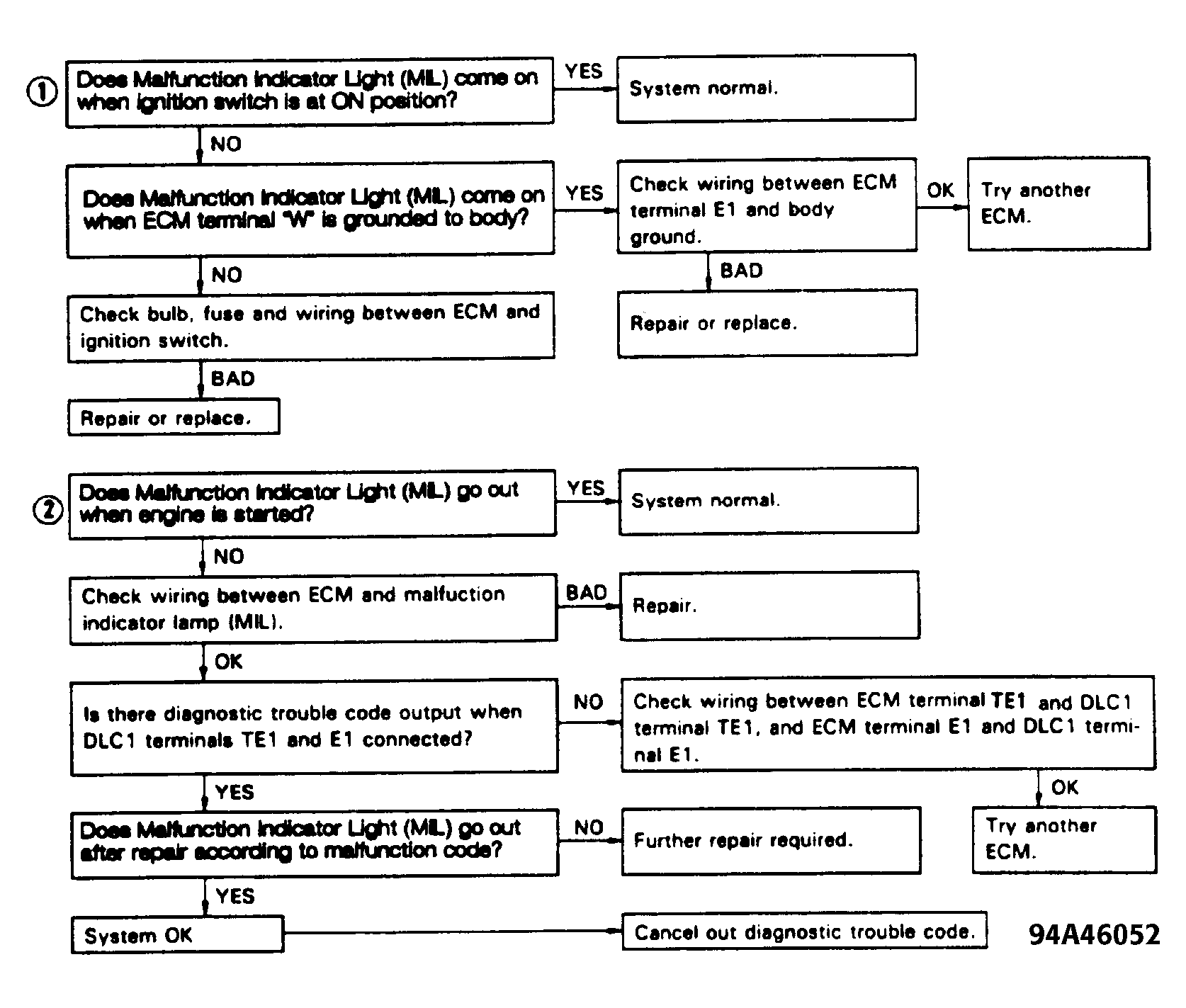

Fig 2: Diagnostic Circuit Check - Diagnostic Flowchart
G94A46052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
