Engine Performance
>>
System
>>
Engine Controls - Tests W/Codes
>>
Trouble Code Charts
>>
ECM Terminal Identification
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
ECM Terminal Identification

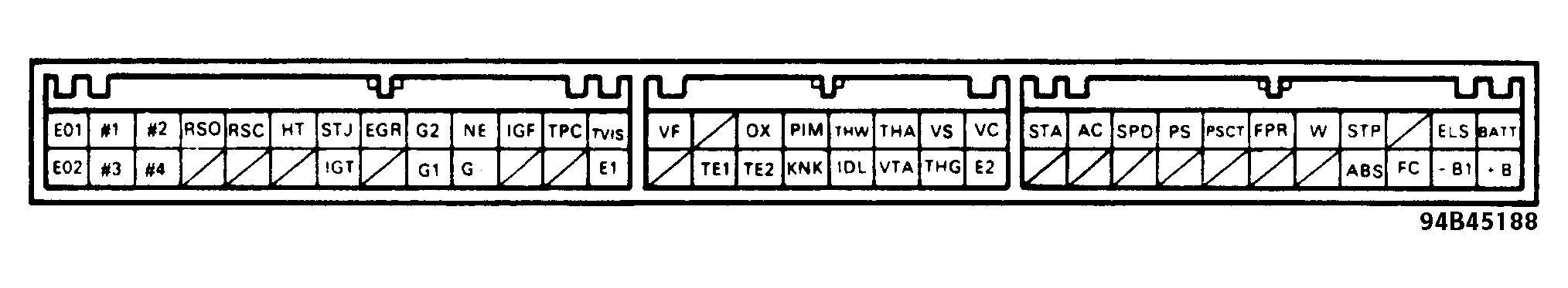

Fig 1: ECM Terminal Identification (2.0L)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

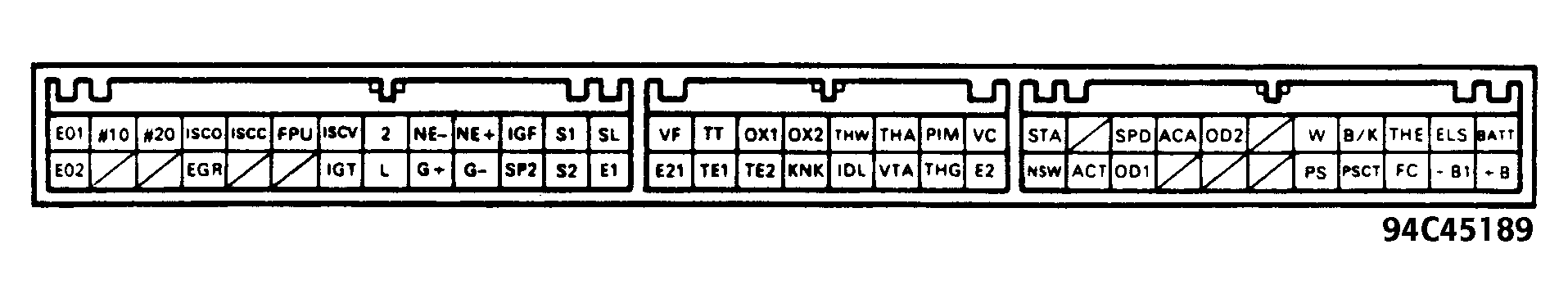

Fig 2: ECM Terminal Identification (2.2L A/T)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

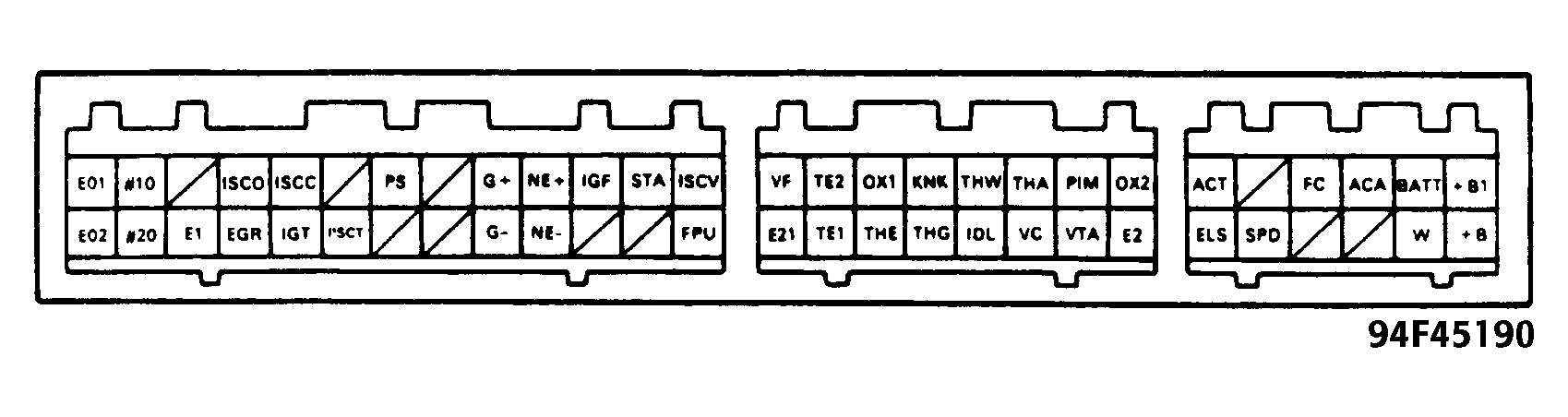

Fig 3: ECM Terminal Identification (2.2L M/T)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
