Component Testing: Computer

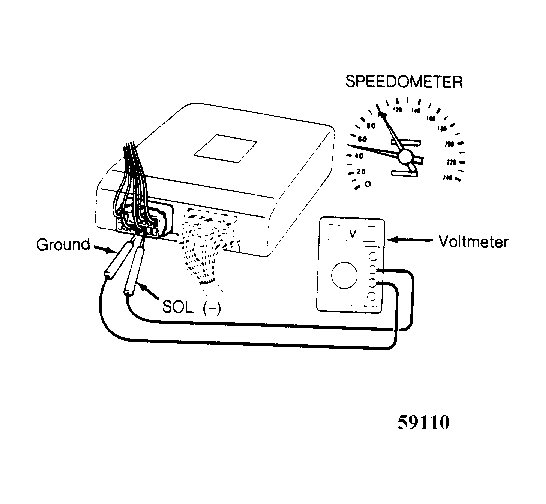

Raise and support vehicle. Remove center console. DO NOT disconnect computer connector. Start engine. Using a voltmeter, measure voltage between terminals GND and SOL (-) of computer connector. See COMPUTER VOLTAGE SPECIFICATIONS table. See Fig 1. If voltage is not as specified, replace computer.
COMPUTER VOLTAGE SPECIFICATIONS
| Test Between | Vehicle Speed - MPH (km/h) | Volts | |
|---|---|---|---|
| SOL (-) & GND | |||
| Vehicle Moving | 31 (50) | .12-.24 | |
| Vehicle Stopped (idling) | 0 | 0-.05 | |
