DTC 43 - Starter Signal

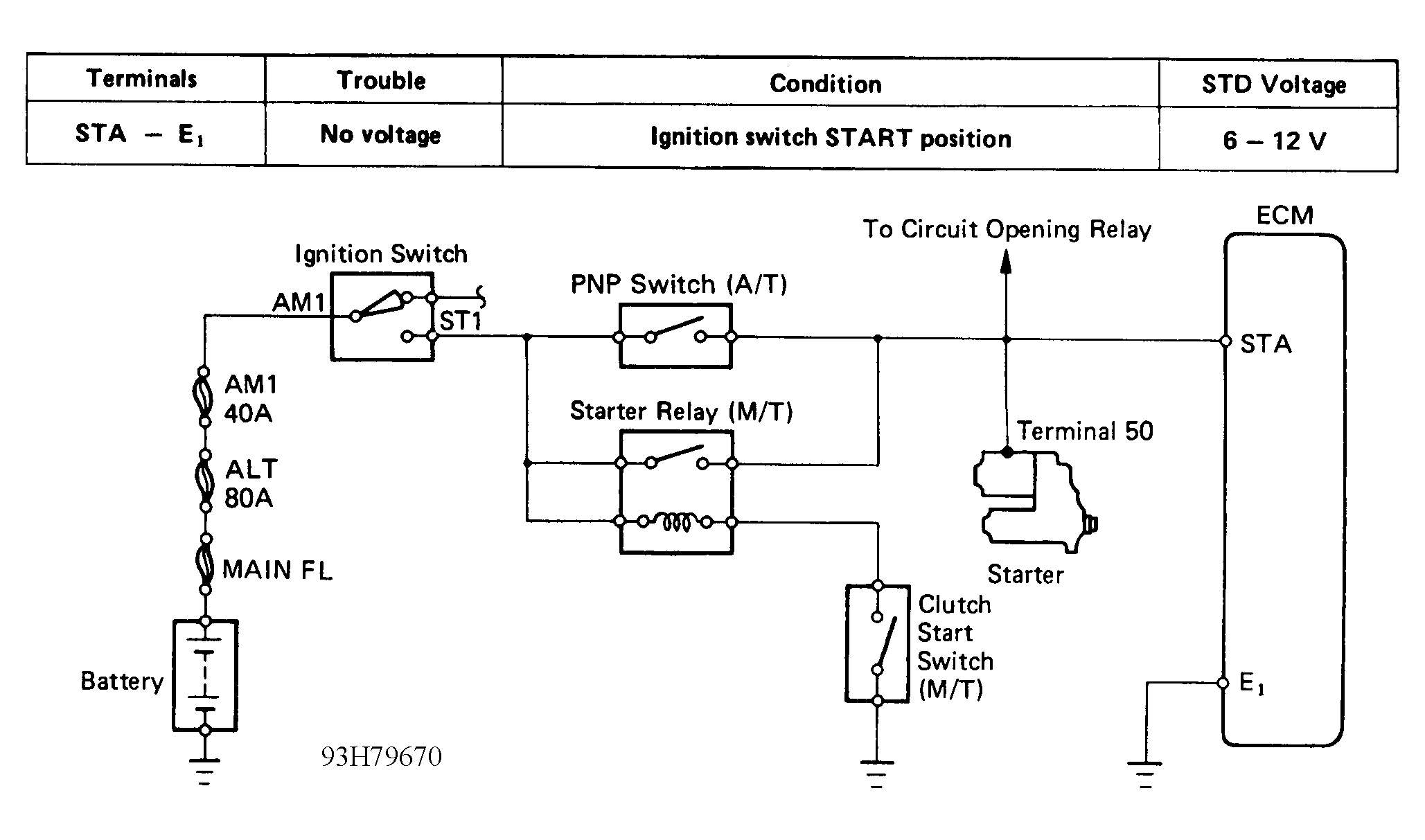

Fig 1: DTC 43 - Schematic
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

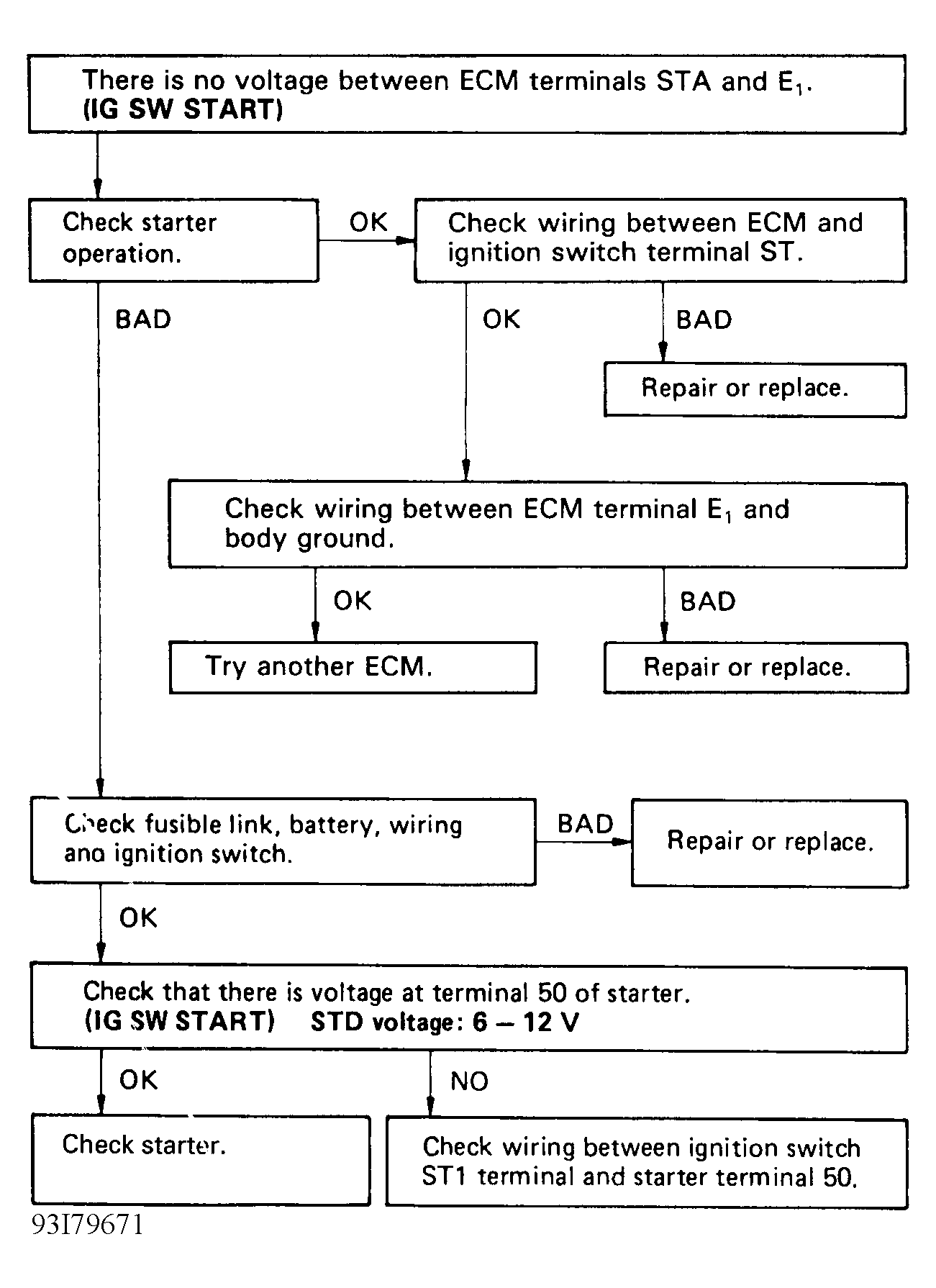

Fig 2: DTC 43 - Diagnostic Flowchart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
