Wheel Alignment Specifications
NOTE:

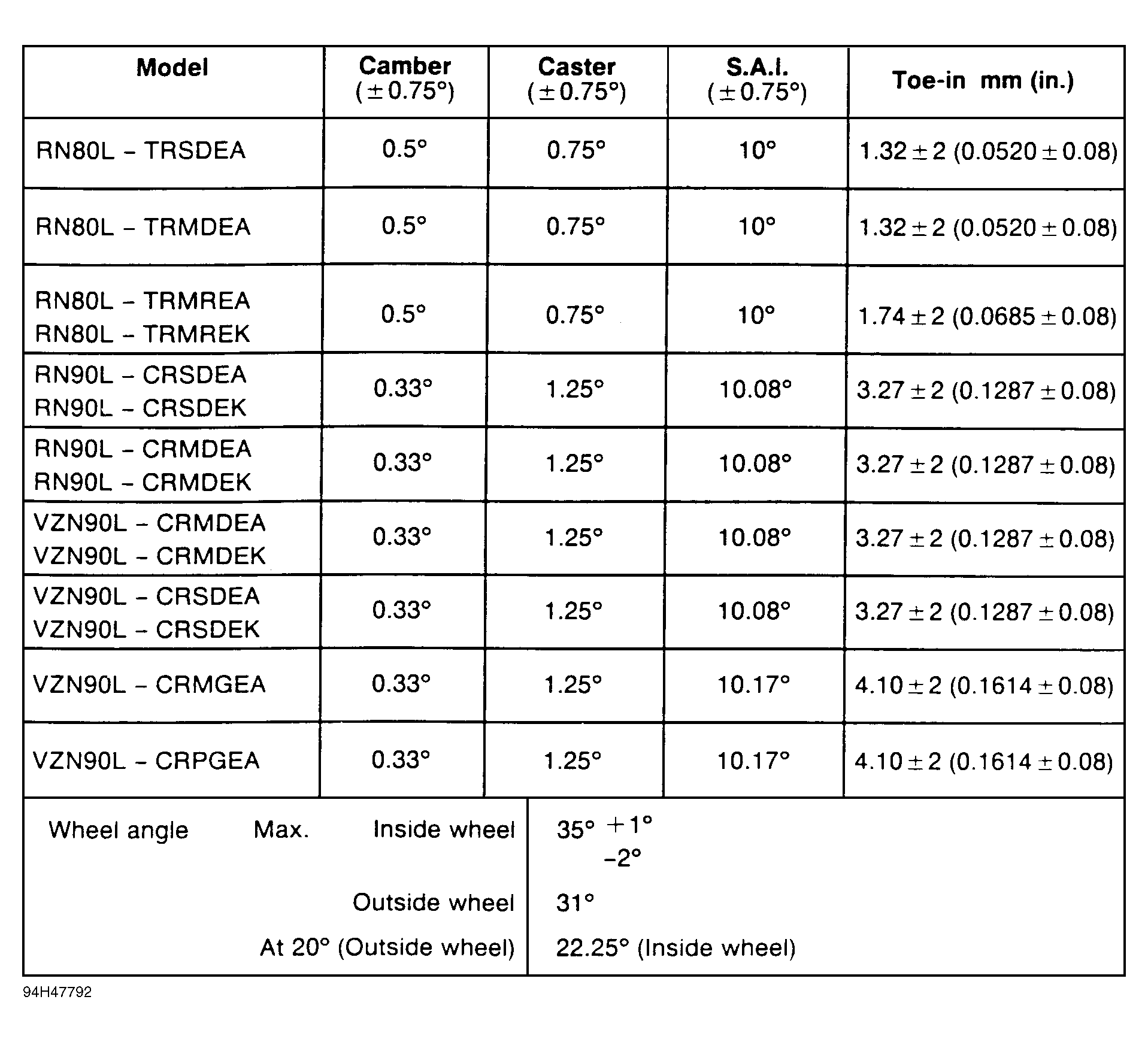

For 2WD, see Fig 1.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002 WHEEL ALIGNMENT SPECIFICATIONS
| Application |
Preferred |
Range |
| Camber |
0.75 |
0 To 1.5 |
| Caster |
2.5 |
1.75 To 3.25 |
| Steering Axis Inclination |
11.83 |
N/A |
| Toe-In |
0.4 (1) |
-0.04 To 0.12 (-1 To 3) |
| Toe-In |
0.08 |
-0.08 To 0.24 |
| Toe-Out On Turns |
| Inner |
32 |
N/A |
| Outer |
31 |
N/A |
