Throttle Position Sensor

Disconnect electrical connector from Throttle Position Sensor (TPS). Loosen TPS mounting screws. Connect ohmmeter between terminals IDL and E2. See Fig 1 and Fig 2.
Apply vacuum to throttle opener (if equipped). To set initial clearance, insert proper thickness feeler gauge between throttle stop screw and throttle lever. Refer to the appropriate THROTTLE POSITION SENSOR ADJUSTMENT table.
With ohmmeter showing no continuity, rotate TPS clockwise until continuity exists. Tighten TPS mounting screws. Using specified feeler gauge, recheck adjusted clearance. Disconnect ohmmeter. Install electrical connector on TPS.

THROTTLE POSITION SENSOR ADJUSTMENT

Engine/ Application

Initial Clearance In. (mm)

Adjusted Clearance In. (mm)

Ohmmeter Reading

2TZ-FZE ⁽¹⁾

.029 (.74)

.020 (.51)

Continuity

.037 (.95)

No Continuity

2TZ-FE ⁽²⁾

.032 (.81)

.024 (.61)

Continuity

.041 (1.04)

No Continuity

⁽¹⁾	This is the supercharged model.

⁽²⁾	This is the non-supercharged model.

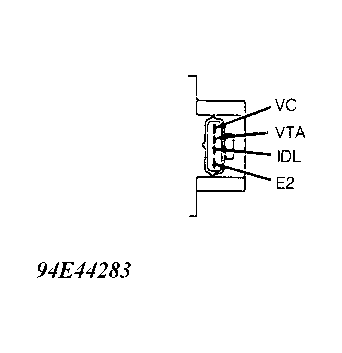

Fig 1: Adjusting Throttle Position Sensor (2.4L Supercharged)

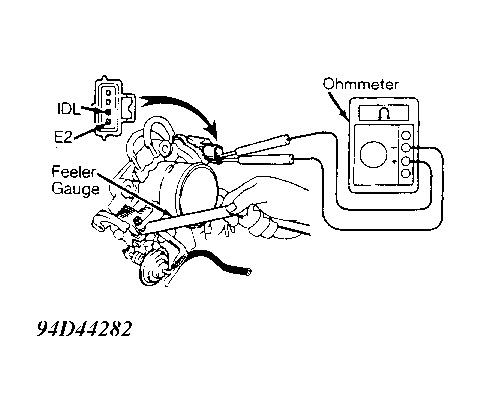

Fig 2: Adjusting Throttle Position Sensor (2.4L Non-Supercharged)
