DTC P0120 - Throttle Position Sensor Circuit

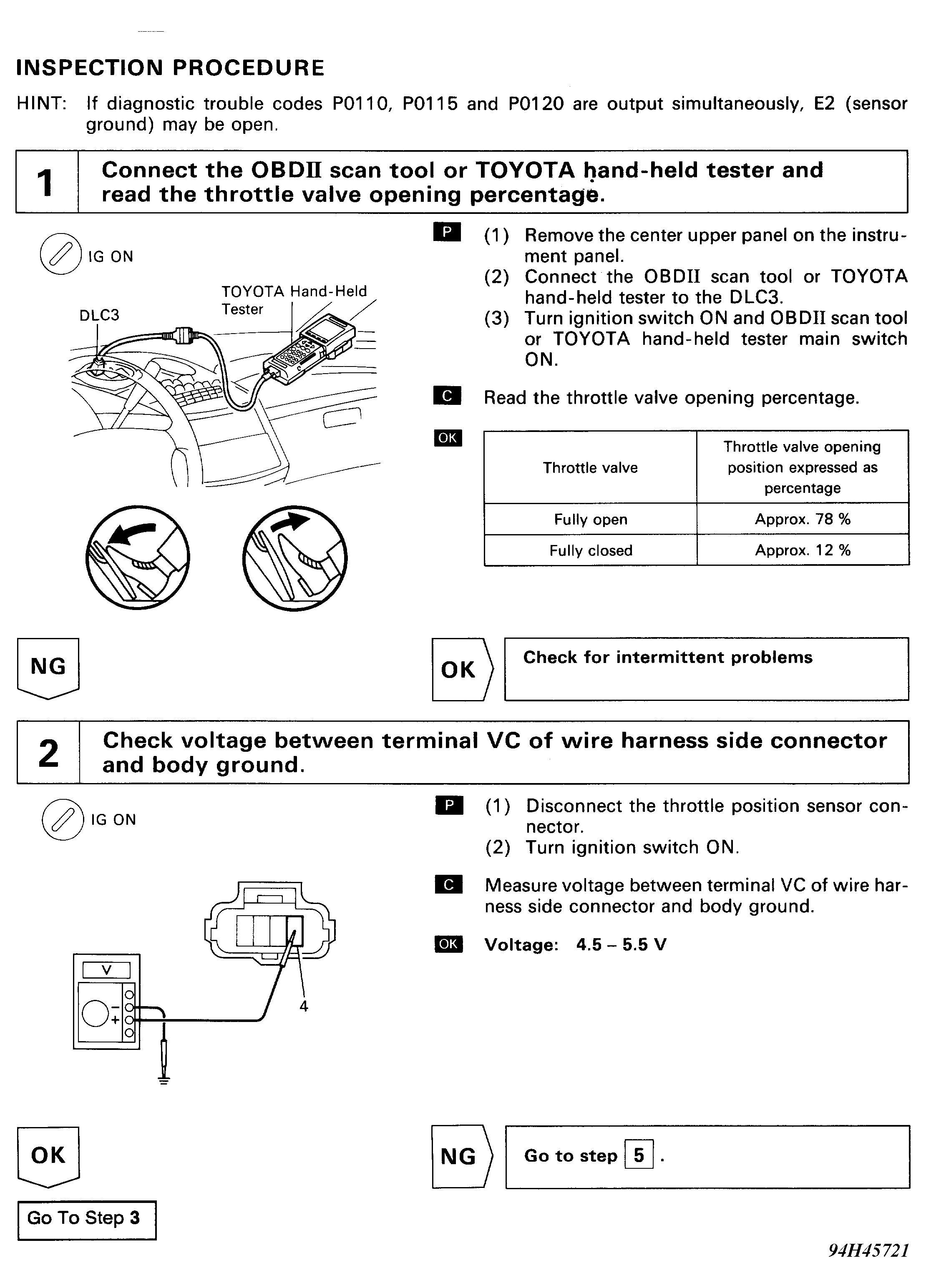

Fig 1: DTC P0120 - Diagnostic Flowchart (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

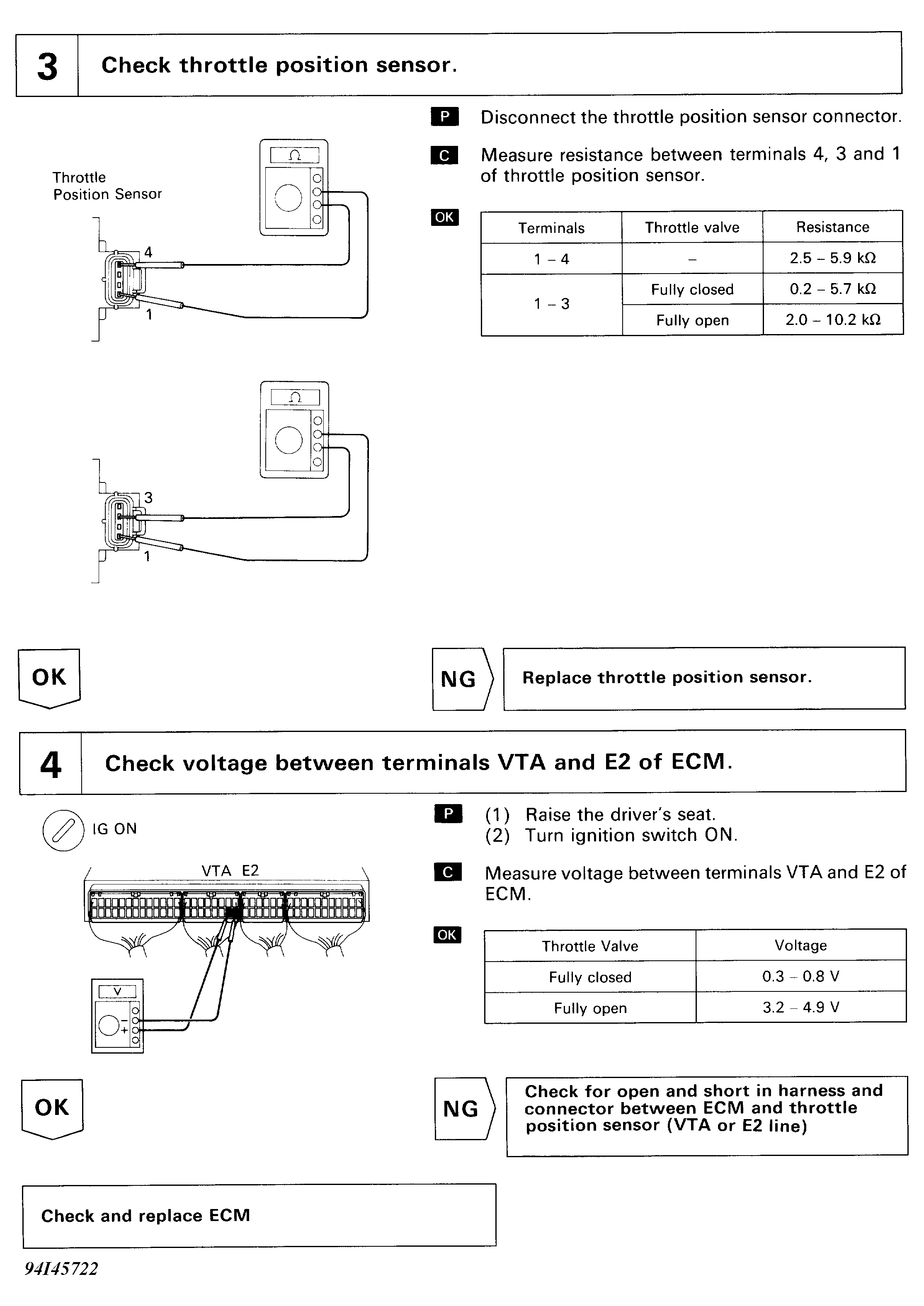

Fig 2: DTC P0120 - Diagnostic Flowchart (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

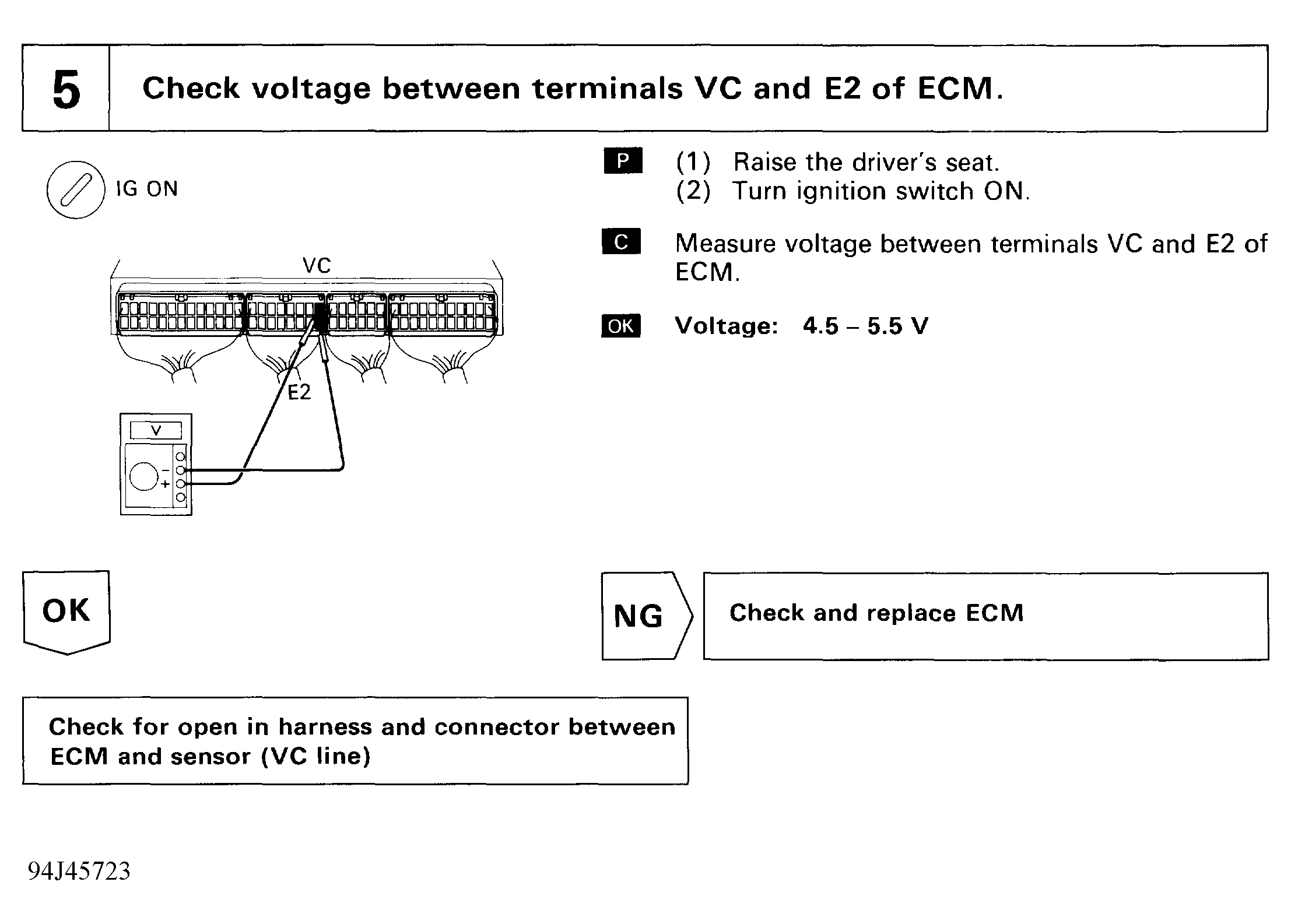

Fig 3: DTC P0120 - Diagnostic Flowchart (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
