ECM Power Source Circuit Check

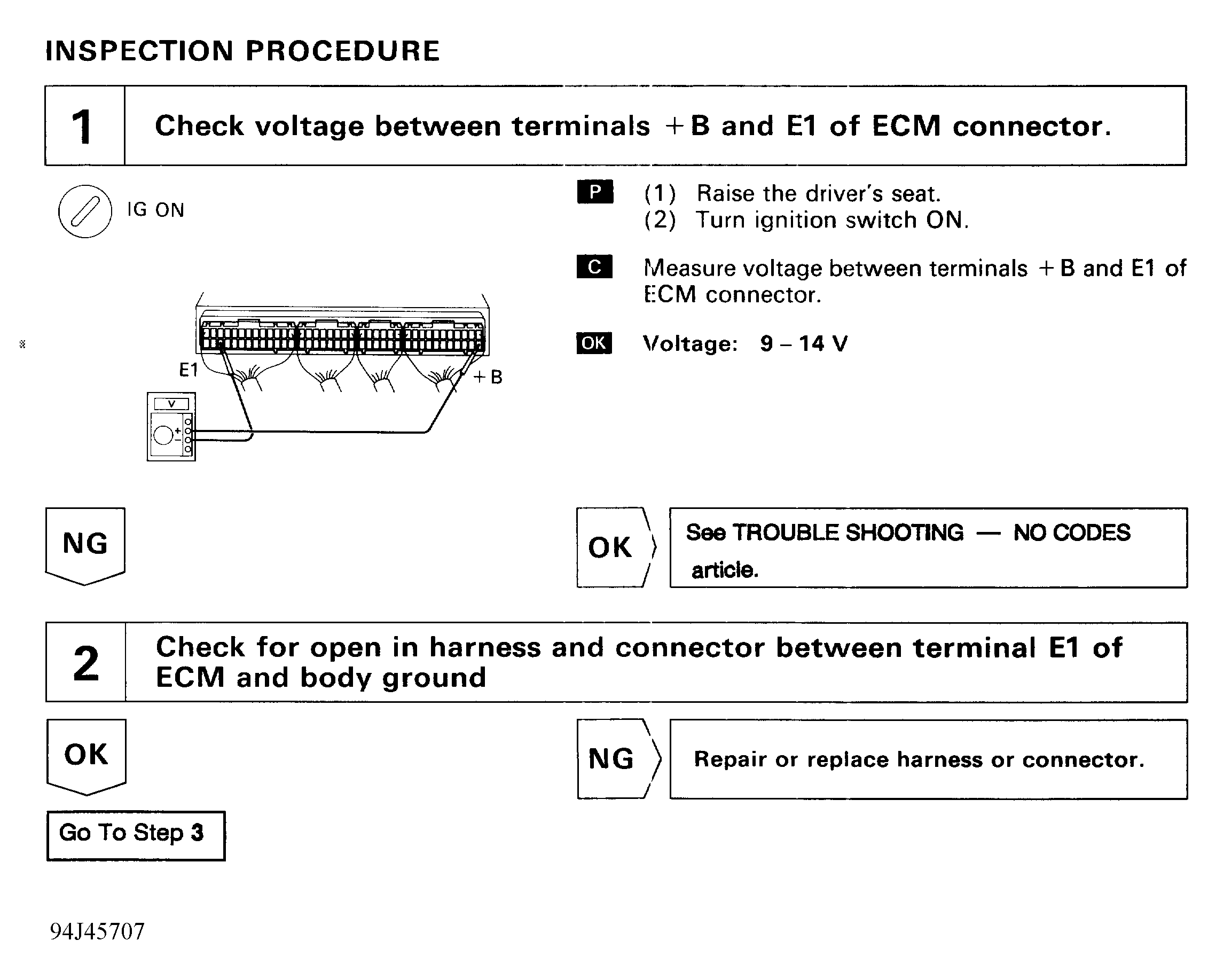

Fig 1: ECM Power Source Circuit Check - Diagnostic Flowchart (1 Of 3)
G94J45707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

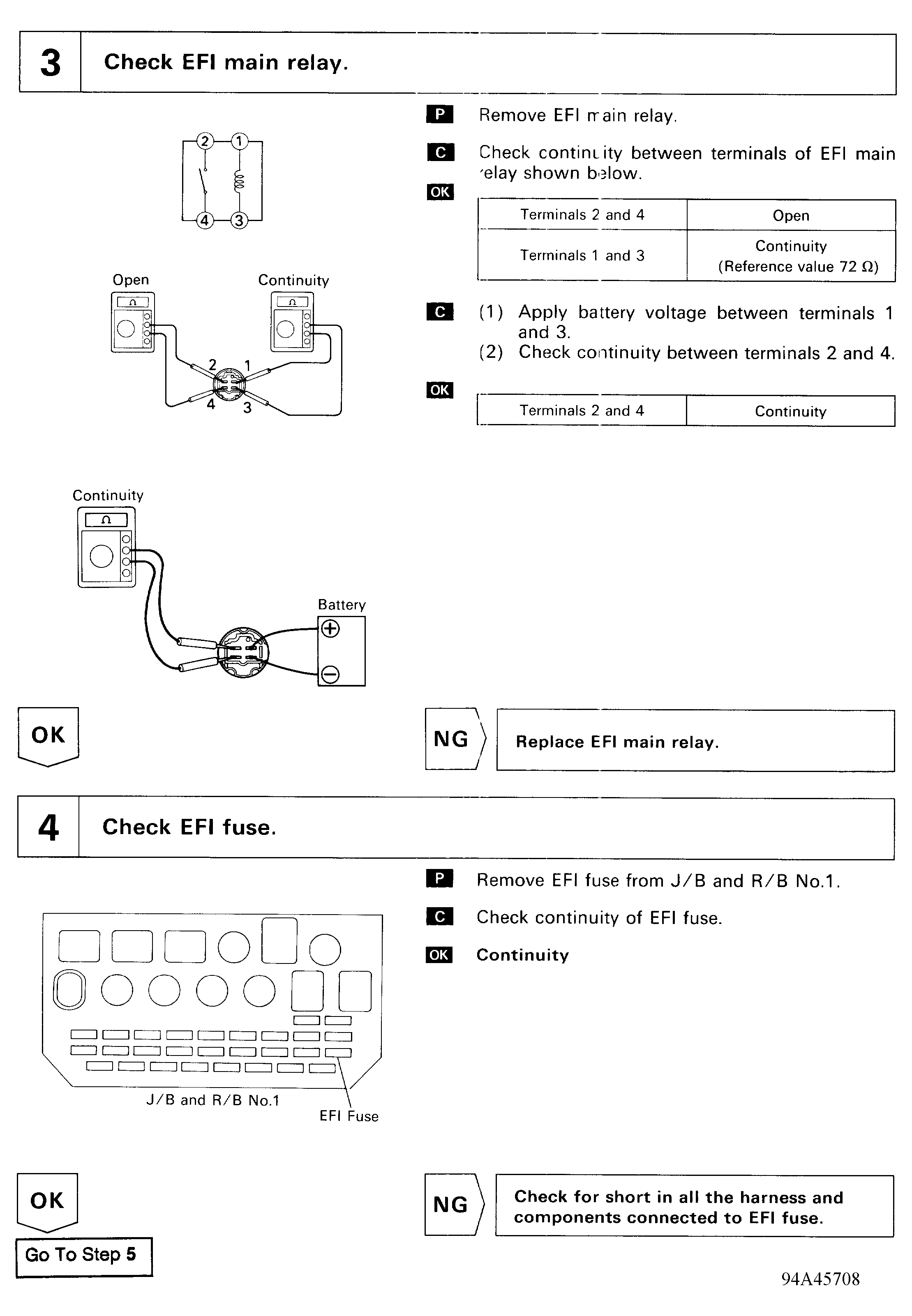

Fig 2: ECM Power Source Circuit Check - Diagnostic Flowchart (2 Of 3)
G94A45708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

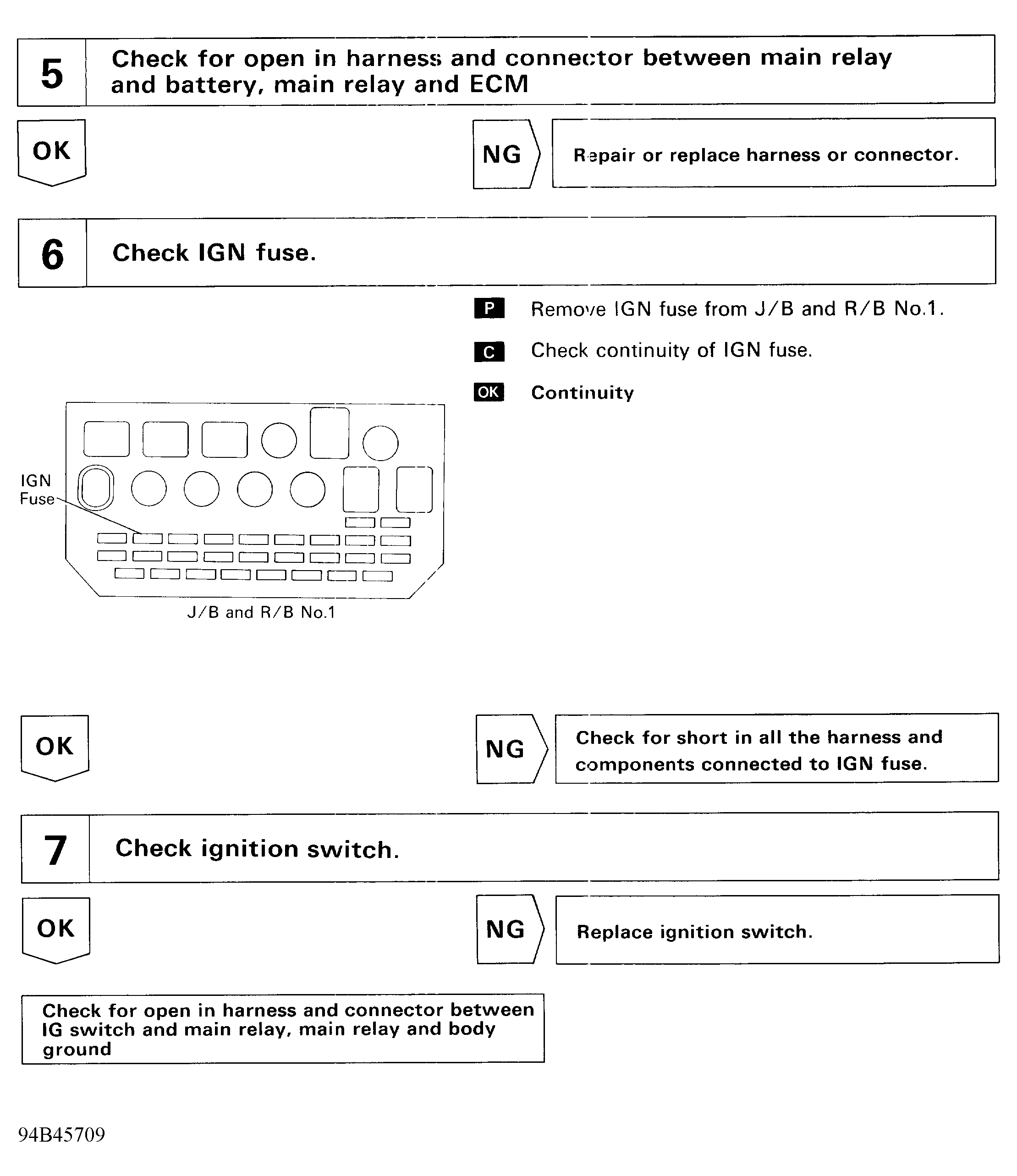

Fig 3: ECM Power Source Circuit Check - Diagnostic Flowchart (3 Of 3)
G94B45709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
