Spark Test

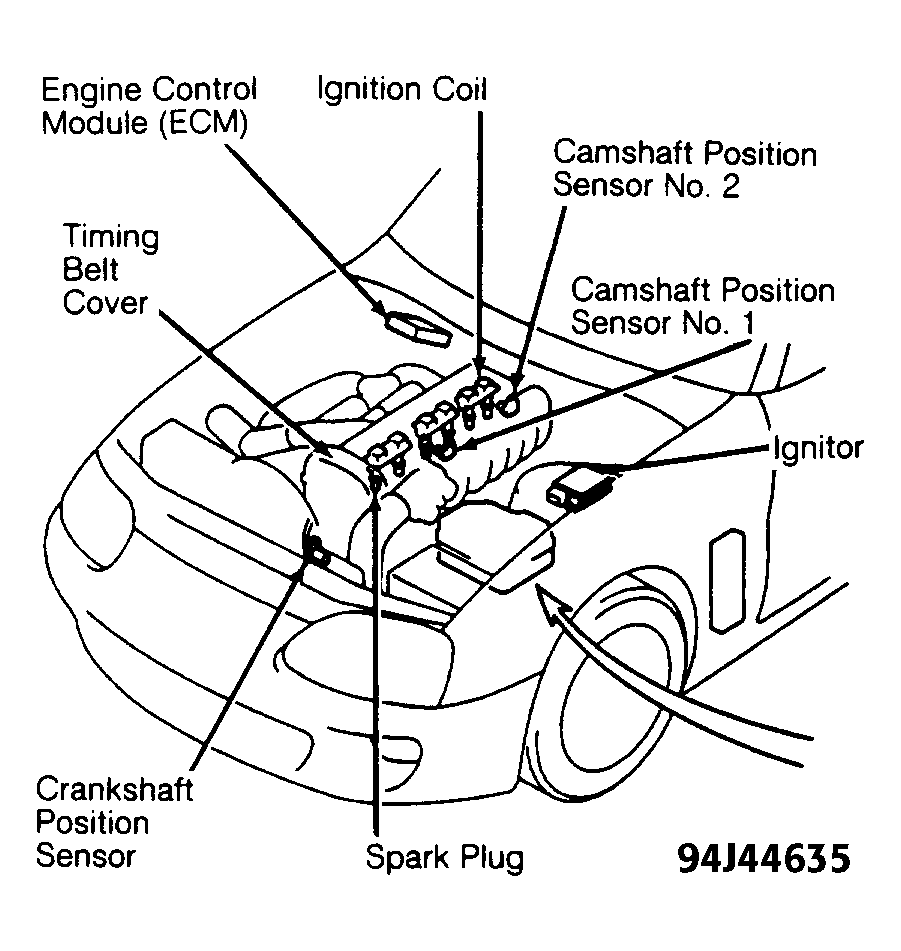

- Disconnect negative battery cable. Remove oil filler cap. Remove timing belt cover and gasket, located above ignition coils. See Fig 1. Remove PCV hoses. Disconnect engine wiring clamps on ignition coils.
- Disconnect electrical connectors from ignition coils. Remove bolts and ignition coil assemblies. Reconnect negative battery cable and electrical connectors on ignition coils.
- Remove spark plugs. Install spark plug on each ignition coil. Ground spark plug against cylinder block.CAUTION: To prevent gasoline from being injected, DO NOT crank engine for longer than 2 seconds.
- Crank engine and check for spark. If spark does not occur, check ignition coil and ignitor electrical connections.
- If electrical connections are okay, turn ignition on. Ensure voltage exists at ignition coil positive terminal. If voltage exists, proceed to step 6). If voltage does not exist, check wiring between ignition switch, ignition coil and ignitor. See WIRING DIAGRAMS article for wiring circuit.
- Check ignition coil resistance. See IGNITION COIL RESISTANCE under IGNITION CHECKS. Replace ignition coil if resistance is not within specification. If ignition coil resistance is within specification, proceed to step 7).
- Check resistance of camshaft position sensor(s) and crankshaft position sensor. See CAMSHAFT POSITION SENSOR and CRANKSHAFT POSITION SENSOR under IGNITION CHECKS.
- Replace camshaft position sensor or crankshaft position sensor if resistance is not within specification. If camshaft position sensor and crankshaft position sensor resistance values are within specification, proceed to step 9).
- Check ignition IGT signal from ECM. If ignition IGT signal from ECM is defective a diagnostic trouble code will be set in the ECM memory to indicate a ignitor circuit malfunction. See information in articles listed below for diagnostic trouble code.
If IGT signal is okay, replace ignitor. Reinstall ignition coils, spark plugs and remaining components.
