Power & Ground Circuits
For testing of power and ground circuits, see information in PIN VOLTAGE CHARTS article. See ECM LOCATION table for identifying ECM mounting locations.
ECM LOCATION
| Model | Location |
|---|---|
| Supra | Below Passenger Side Of Dash Underneath Carpet On The Floor |
NOTE:

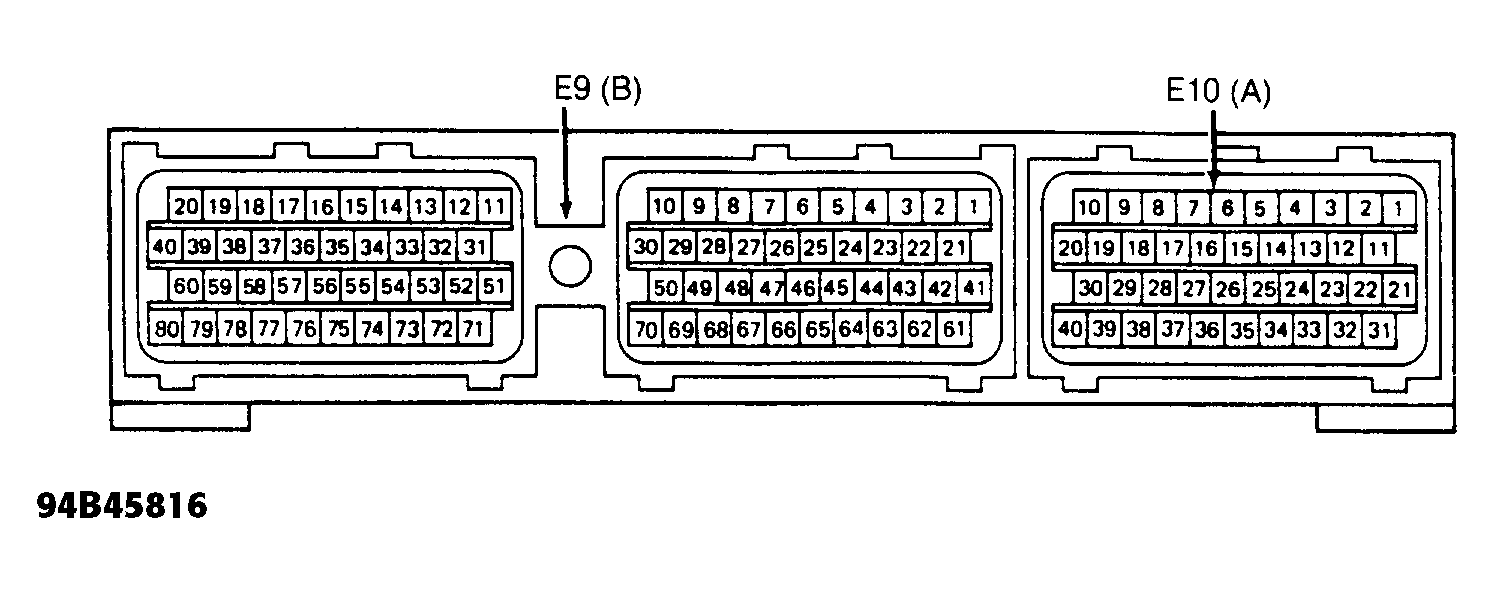

Fig. Fig 1 identifies ECM terminals used for performing tests on various components in this article.
