Power Mirror Switch Test
NOTE:
Mirror motor connectors may vary in configuration from vehicle to vehicle of the same model.

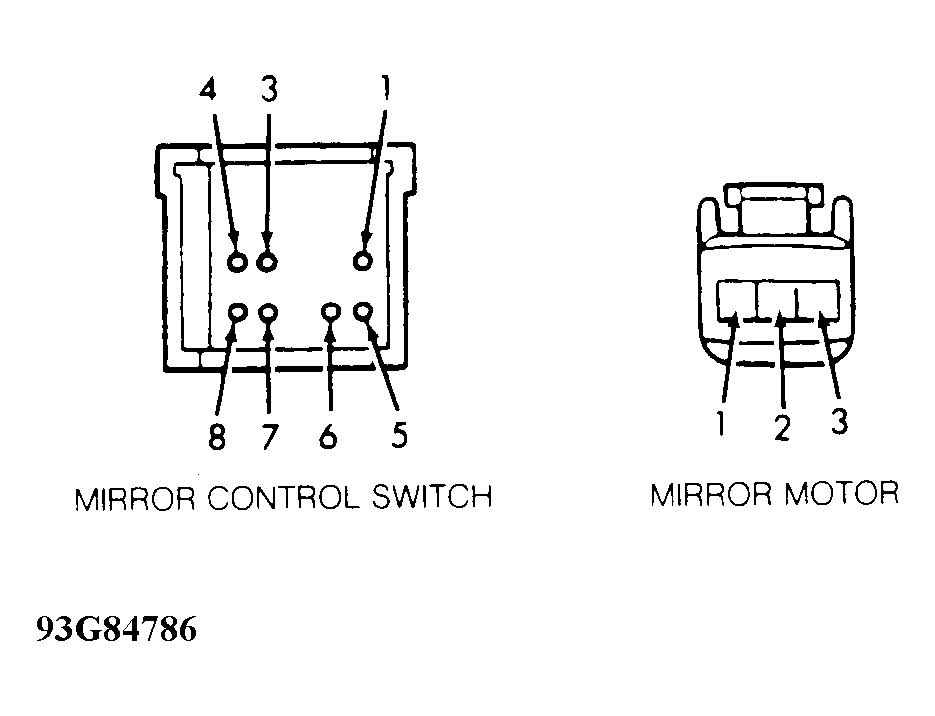

Remove power mirror switch. See POWER MIRROR SWITCH under REMOVAL & INSTALLATION. Using ohmmeter, check continuity between appropriate mirror switch terminals. See Fig 1. See POWER MIRROR SWITCH CONTINUITY TEST table. If switch fails any test, replace switch.
POWER MIRROR SWITCH CONTINUITY TEST
| Application | Terminals | |
|---|---|---|
| Switch In Left Position | ||
| Up | 1 & 8; 3 & 4 | |
| Down | 1 & 3; 4 & 8 | |
| Left | 1 & 7; 3 & 4 | |
| Right | 1 & 3; 4 & 7 | |
| Switch In Right Position | ||
| Up | 1 & 5; 3 & 4 | |
| Down | 1 & 3; 4 & 5 | |
| Left | 1 & 6; 3 & 4 | |
| Right | 1 & 3; 4 & 6 | |
