Speed Sensor

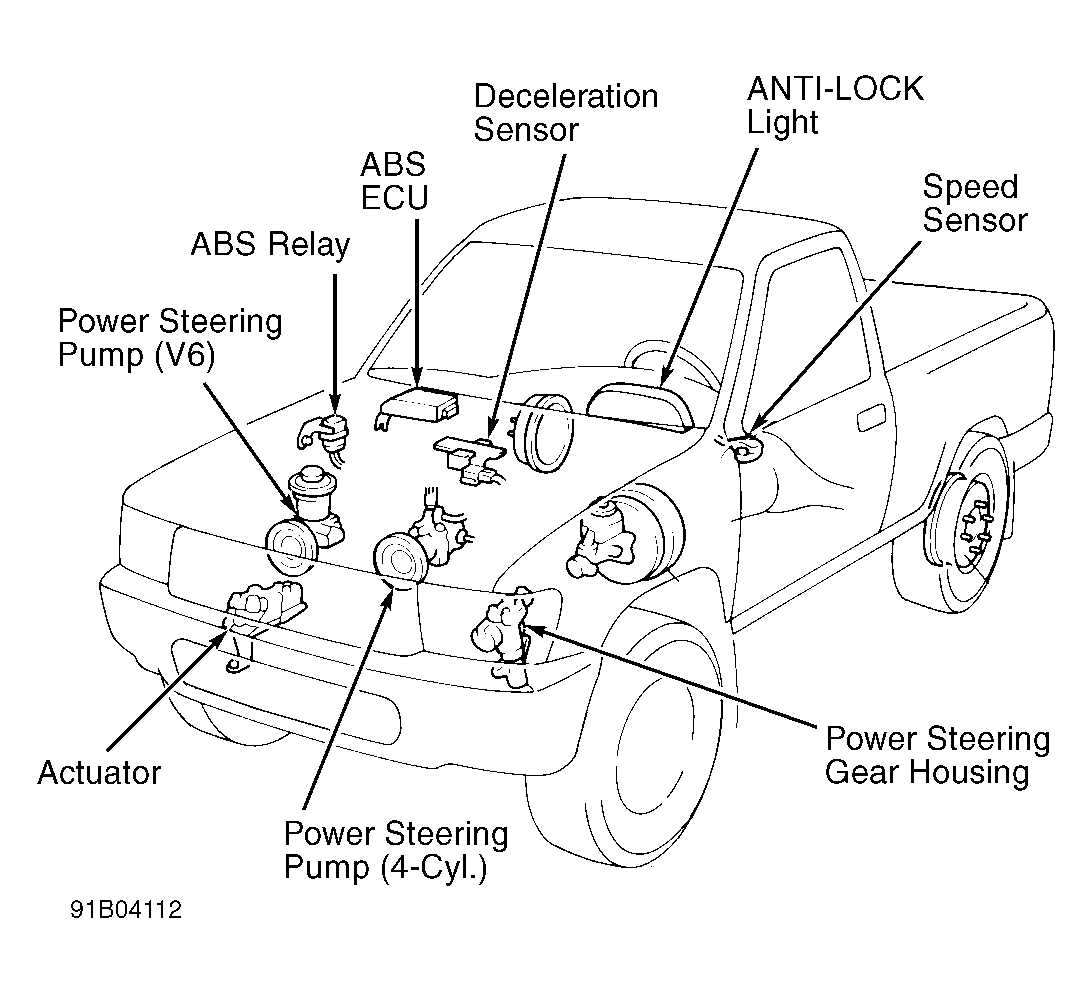

Unplug speed sensor connector. See Figure. Measure resistance between speed sensor terminals. Resistance should be 770-890 ohms. Continuity should not exist between sensor terminal and sensor body. If resistance and continuity are not as specified, replace speed sensor.
