Starter Relay Test

  1. Locate and remove starter relay. See STARTER RELAY LOCATION  table. See Fig 2. Using ohmmeter, verify continuity between relay terminals No. 1 and 2. See Fig 1. Continuity should not exist between terminals No. 3 and 5. If continuity is not as indicated, replace relay.
  2. Check relay operation by applying battery voltage through terminals No. 1 and 2. See Fig 1. Continuity should now exist between terminals No. 3 and 5. If relay does not test as indicated, replace relay.
Fig 1: Testing Starter Relay
G93A82271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

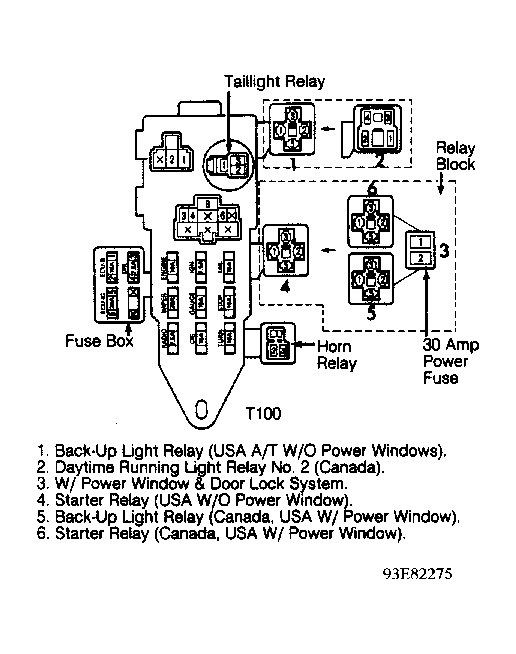

Fig 2: Locating Starter Relay
G93E82275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
STARTER RELAY LOCATION

Application Location
T100 (1) Driver Side Relay Box No. 1
(1) On US models without power windows, relay is on side of relay box above horn relay. On Canadian and US models with power windows, relay is on side of relay above back-up light relay.
