DTC P0121 - Throttle Position Sensor Circuit Range/Performance Problem

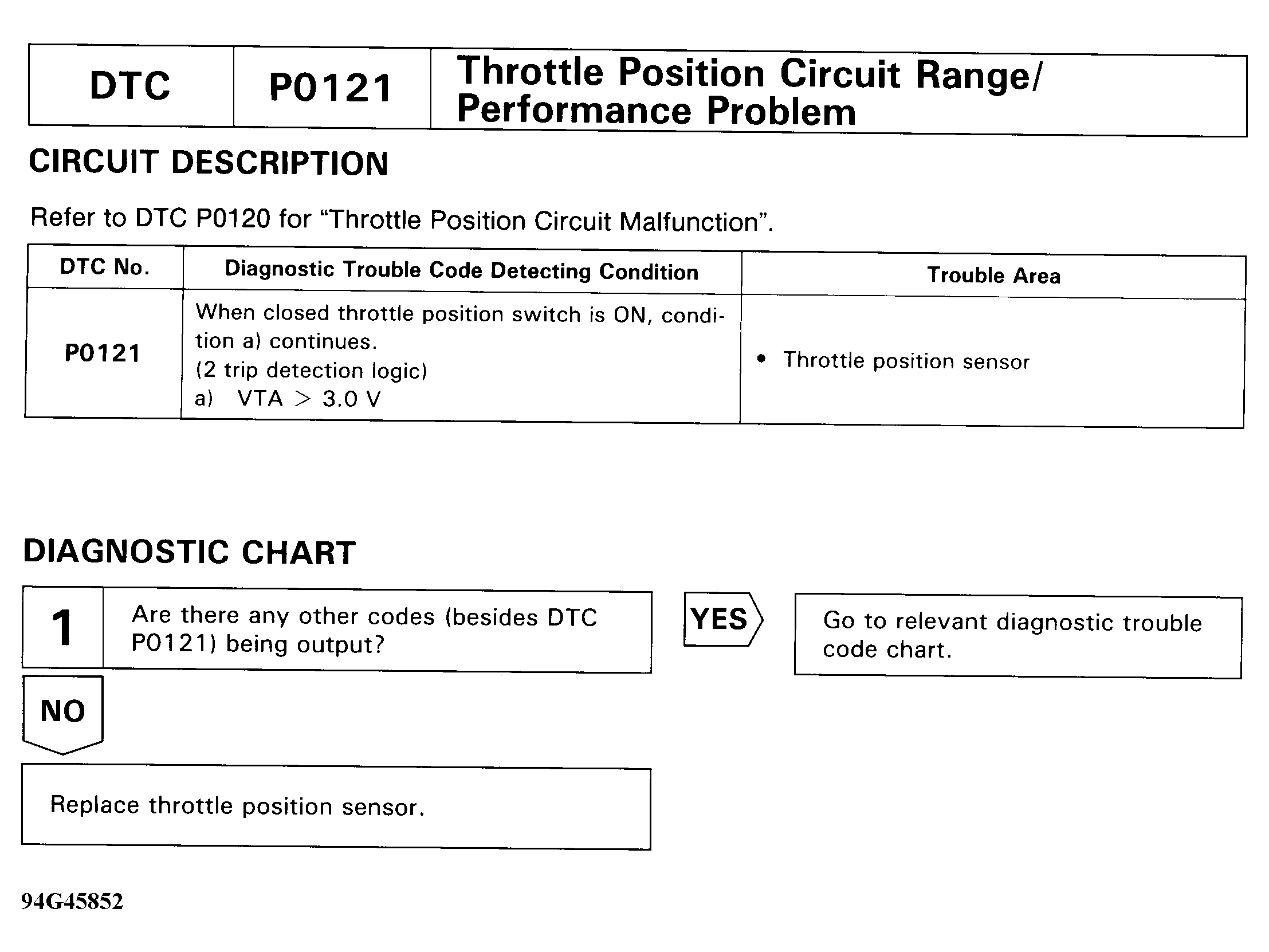

Fig 1: DTC P0121 - Diagnostic Flowchart
G94G45852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
