DTC P0125 - Insufficient Engine Coolant Temp. For Closed Loop Fuel Control

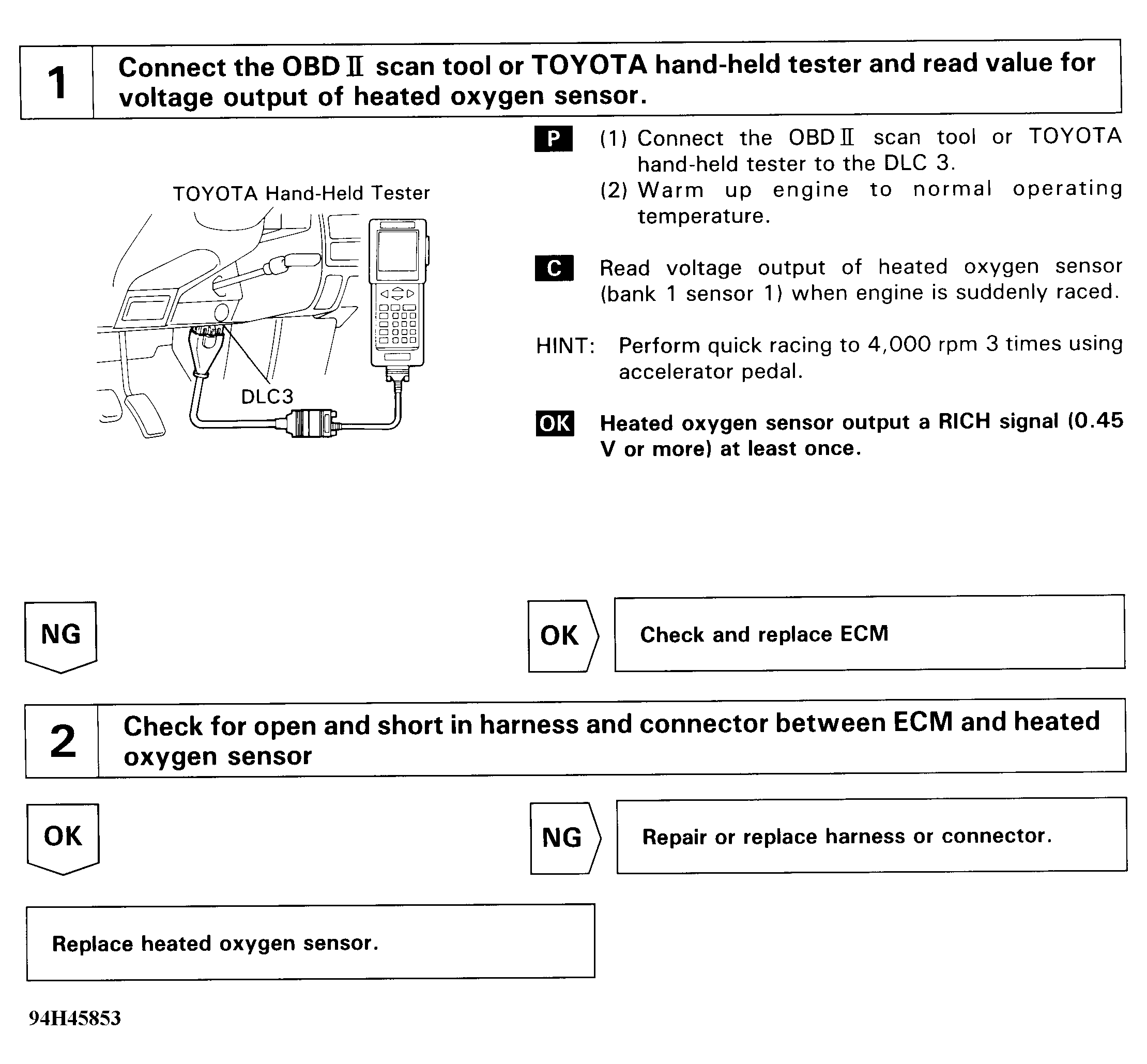

Fig 1: DTC P0125 - Diagnostic Flowchart
G94H45853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
