Testing Anti-Theft Circuits: Notes

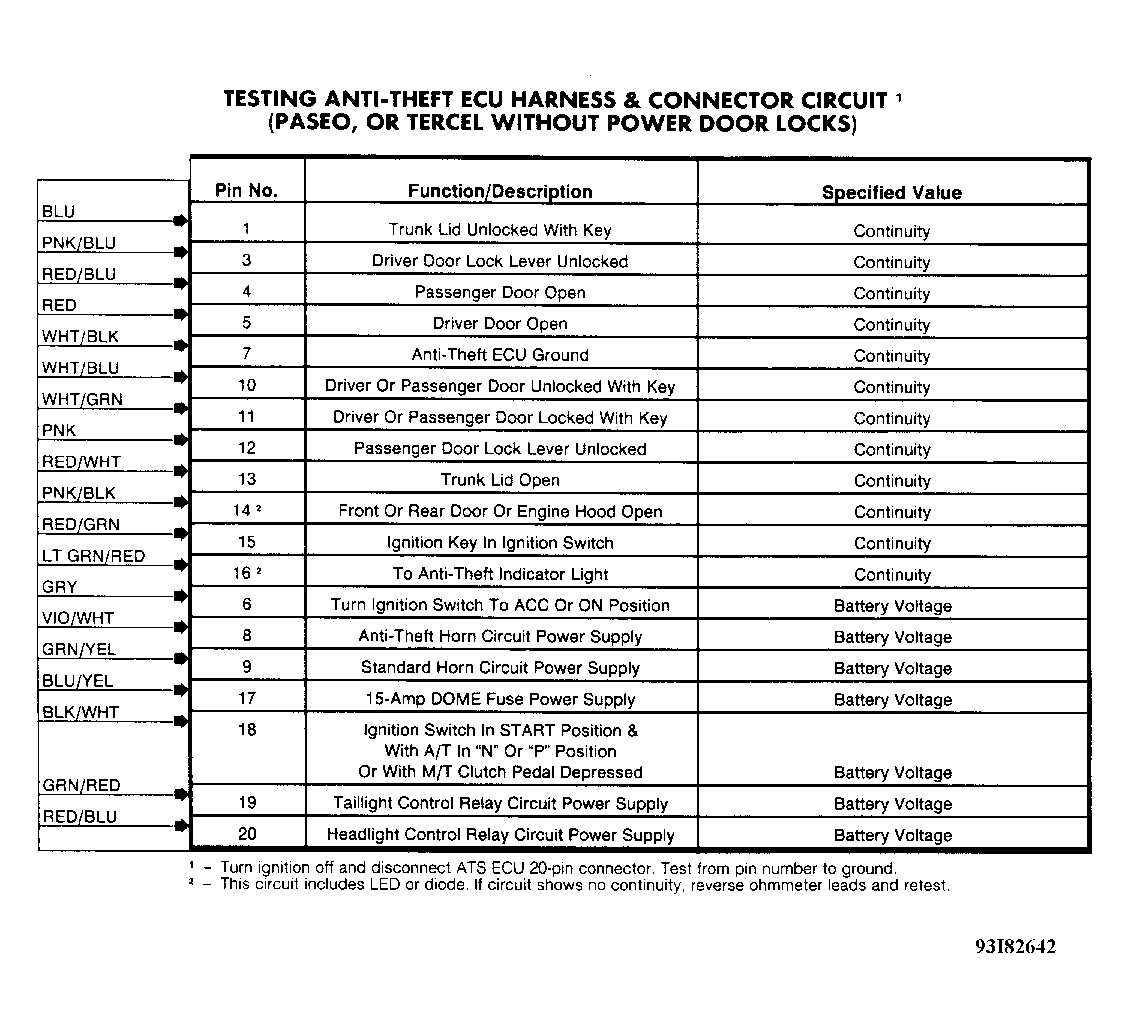

NOTE: Perform all tests using a volt-ohmmeter with a minimum 10-megohm input impedance. See Figure for additional circuit testing.
