Stoplight Switch

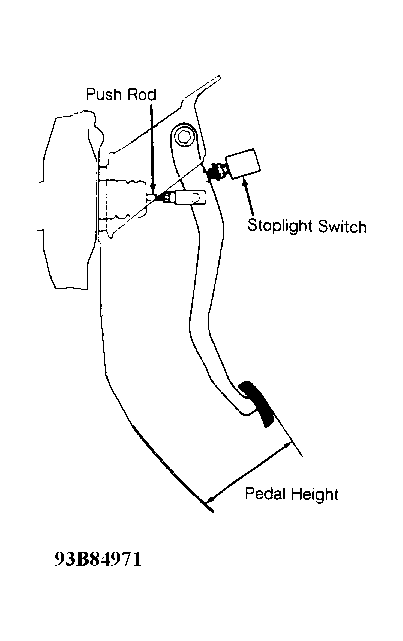

Remove lower instrument panel and air duct (if necessary). Loosen lock nut. Rotate switch until clearance between switch and pedal stop is .02-.09" (0.5-2.3 mm). See Figure. Check brake pedal height. See BRAKE PEDAL HEIGHT under ADJUSTMENTS. Check brakelight operation.
