DTC 31 - Vacuum Sensor Signal

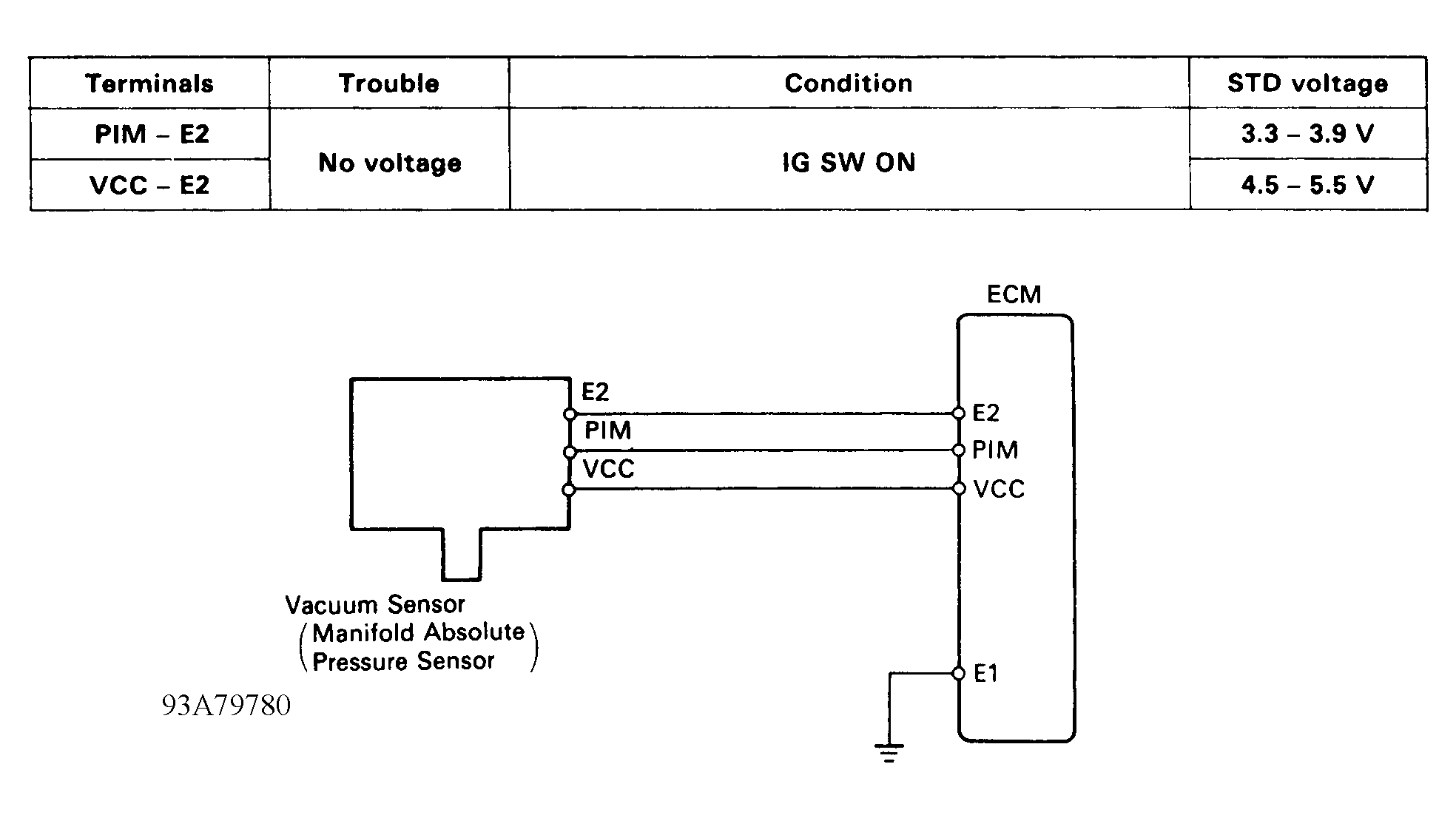

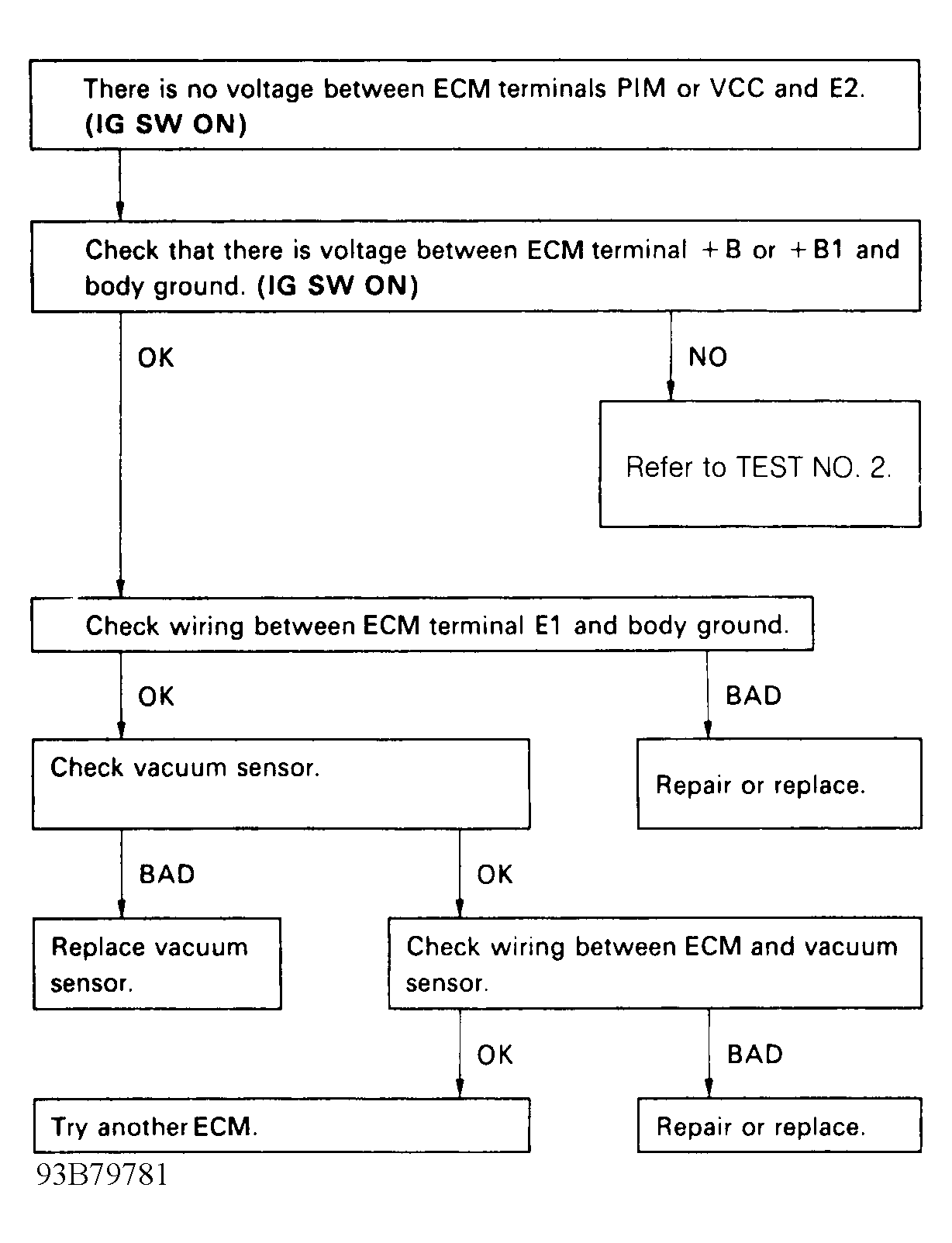

DTC 31 VACUUM SENSOR SIGNAL TROUBLE
| Terminals |
Trouble |
Condition |
STD Voltage |
| PIM-E2 |
No Voltage |
Ignition Switch ON |
3.3-3.9V |
| VCC-E2 |
No Voltage |
Ignition Switch ON |
4.5-5.5V |
