Diagnostic Circuit Check

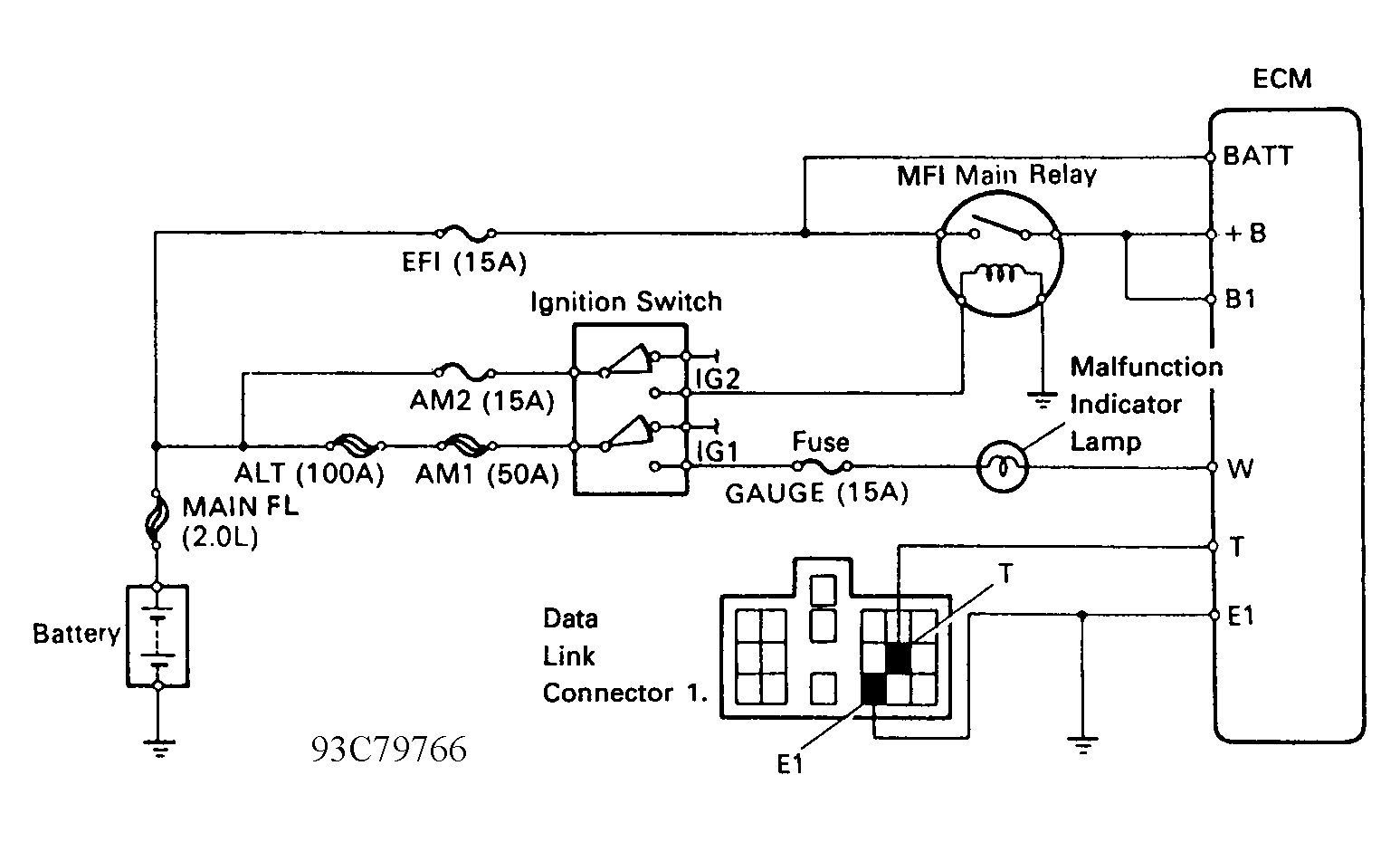

Fig 1: Diagnostic Circuit Check - Schematic

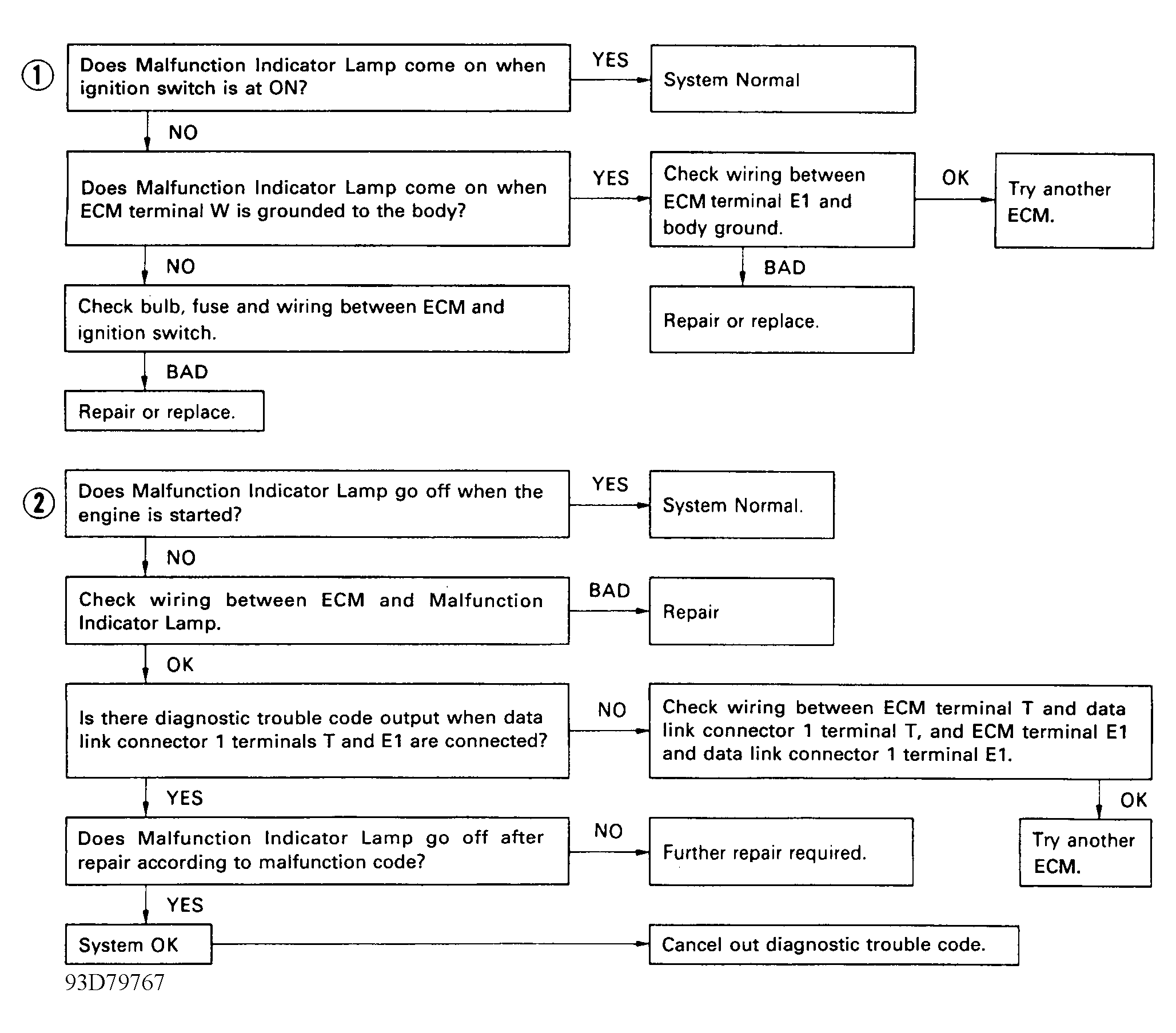

Fig 2: Diagnostic Circuit Check - Diagnostic Flowchart
