DTC 24 - Intake Air Temperature Sensor Signal

WARNING: This page is about a different car, the 1994 Toyota Paseo. However, it is still accessible from the selected car via links, so may be relevant.

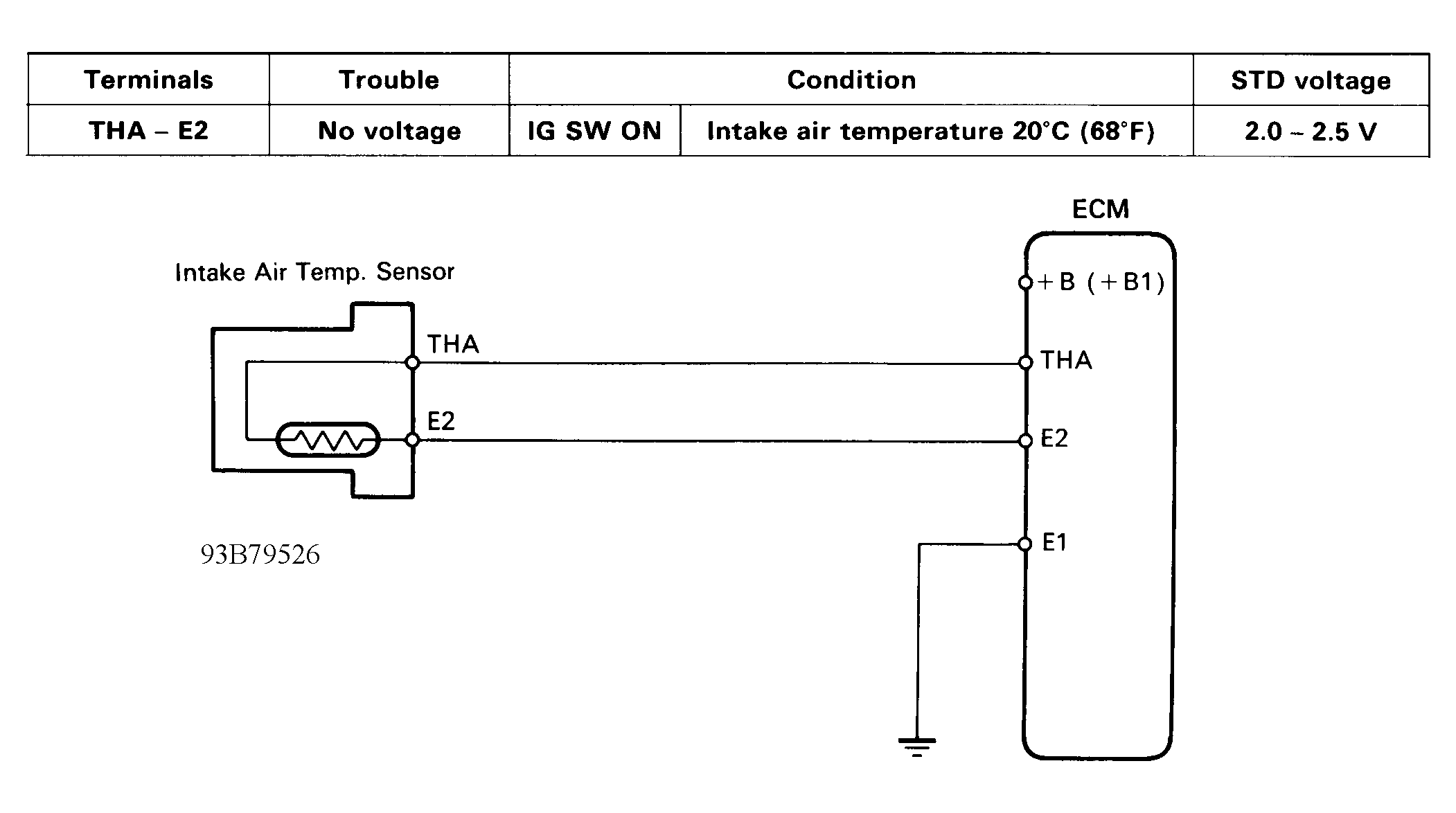

Fig 1: DTC 24 - Schematic
G93B79526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

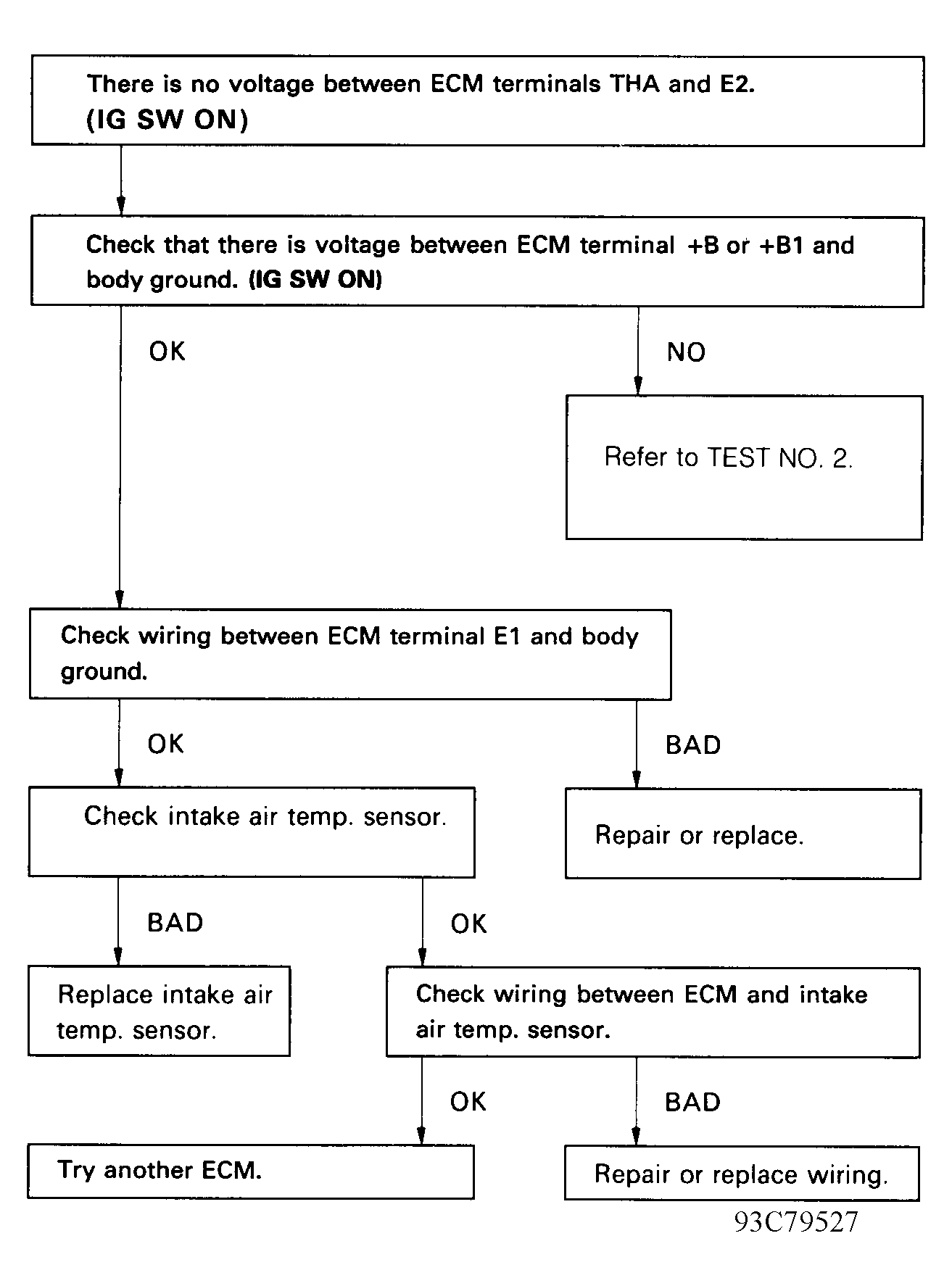

Fig 2: DTC 24 - Diagnostic Flowchart
G93C79527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
