DTC 41 - Throttle Position Sensor Signal

WARNING: This page is about a different car, the 1994 Toyota Paseo. However, it is still accessible from the selected car via links, so may be relevant.

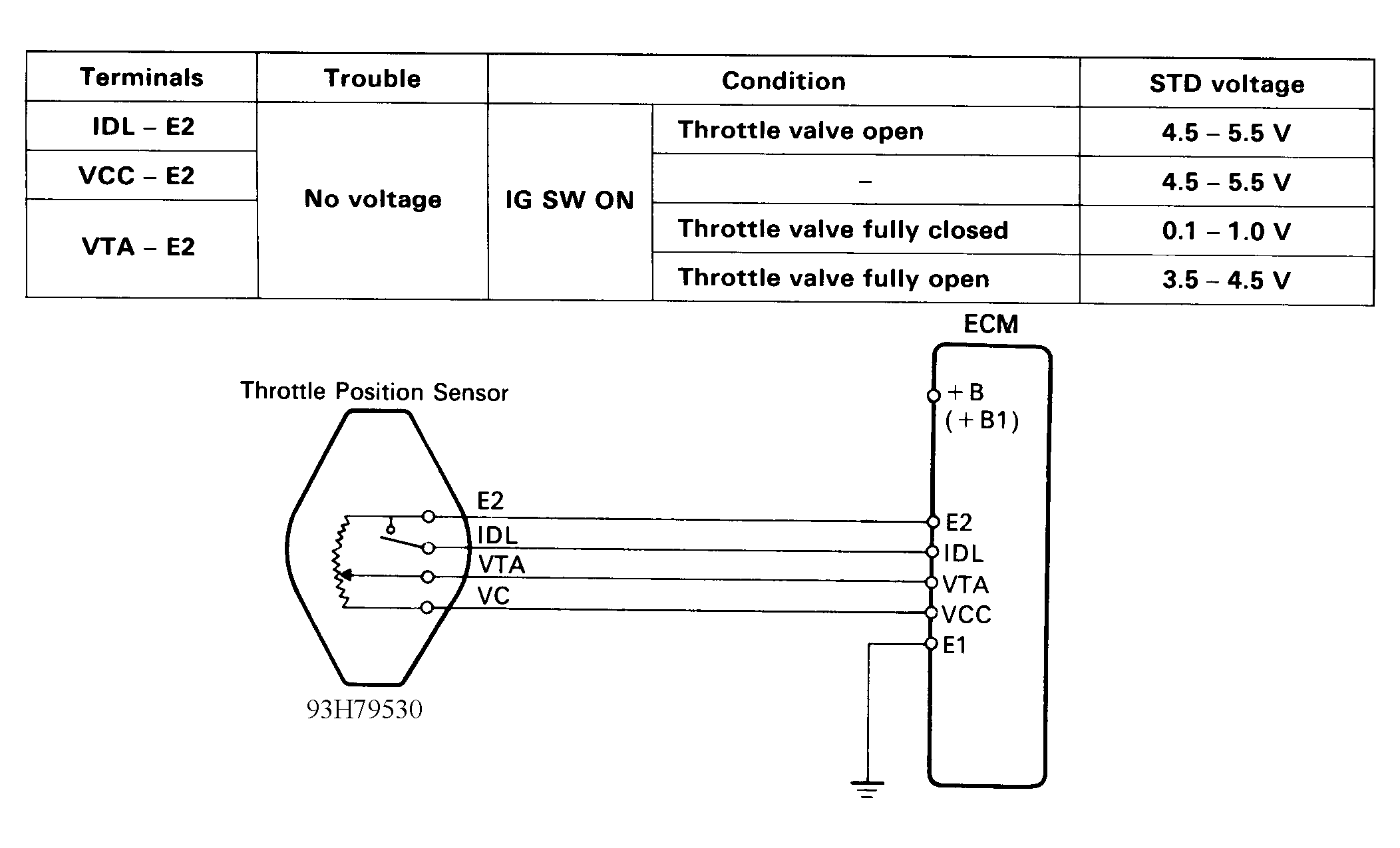

Fig 1: DTC 41 - Schematic

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

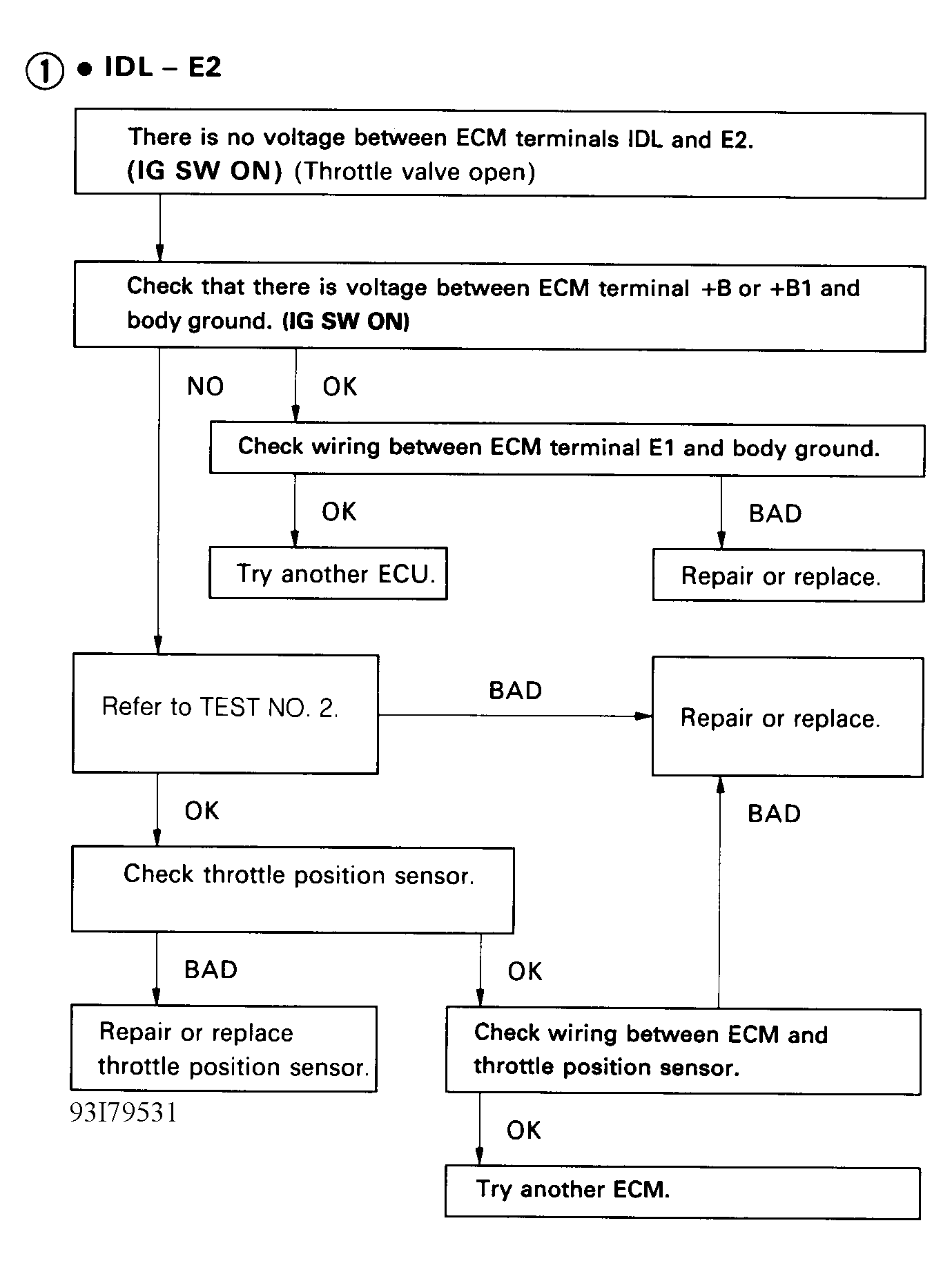

Fig 2: DTC 41 - Diagnostic Flowchart (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

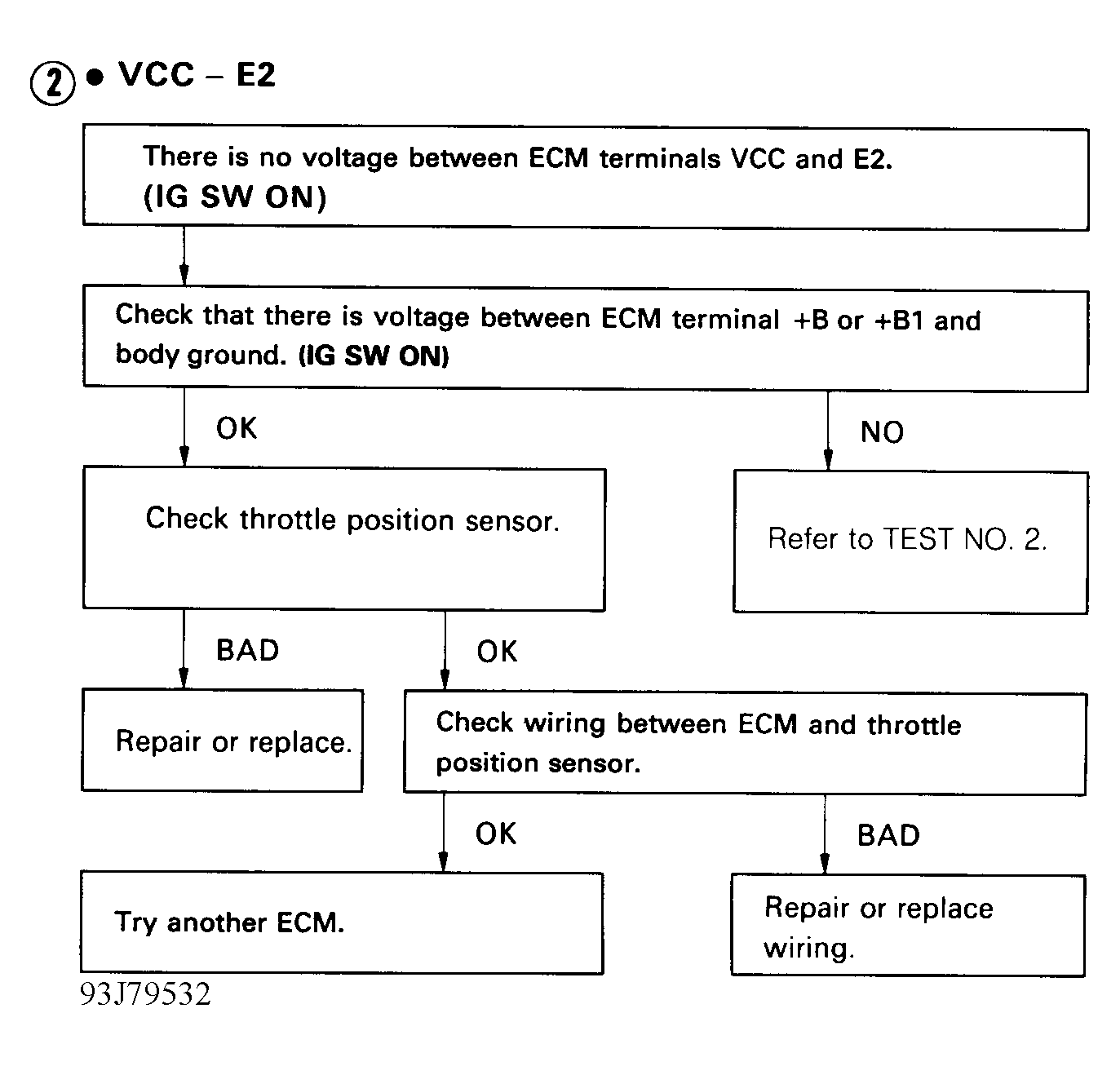

Fig 3: DTC 41 - Diagnostic Flowchart (2 Of 3)

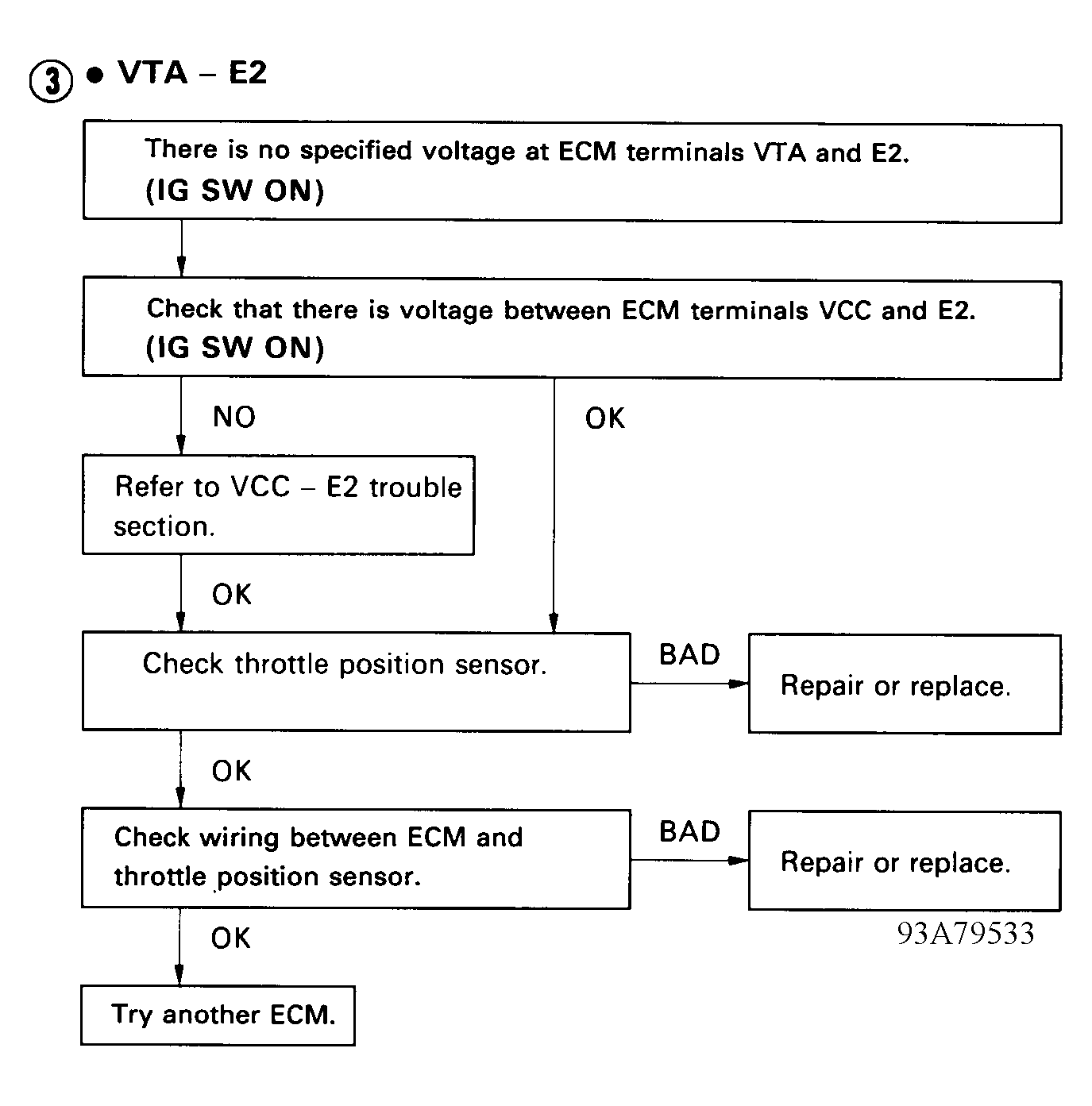

Fig 4: DTC 41 - Diagnostic Flowchart (3 Of 3)
