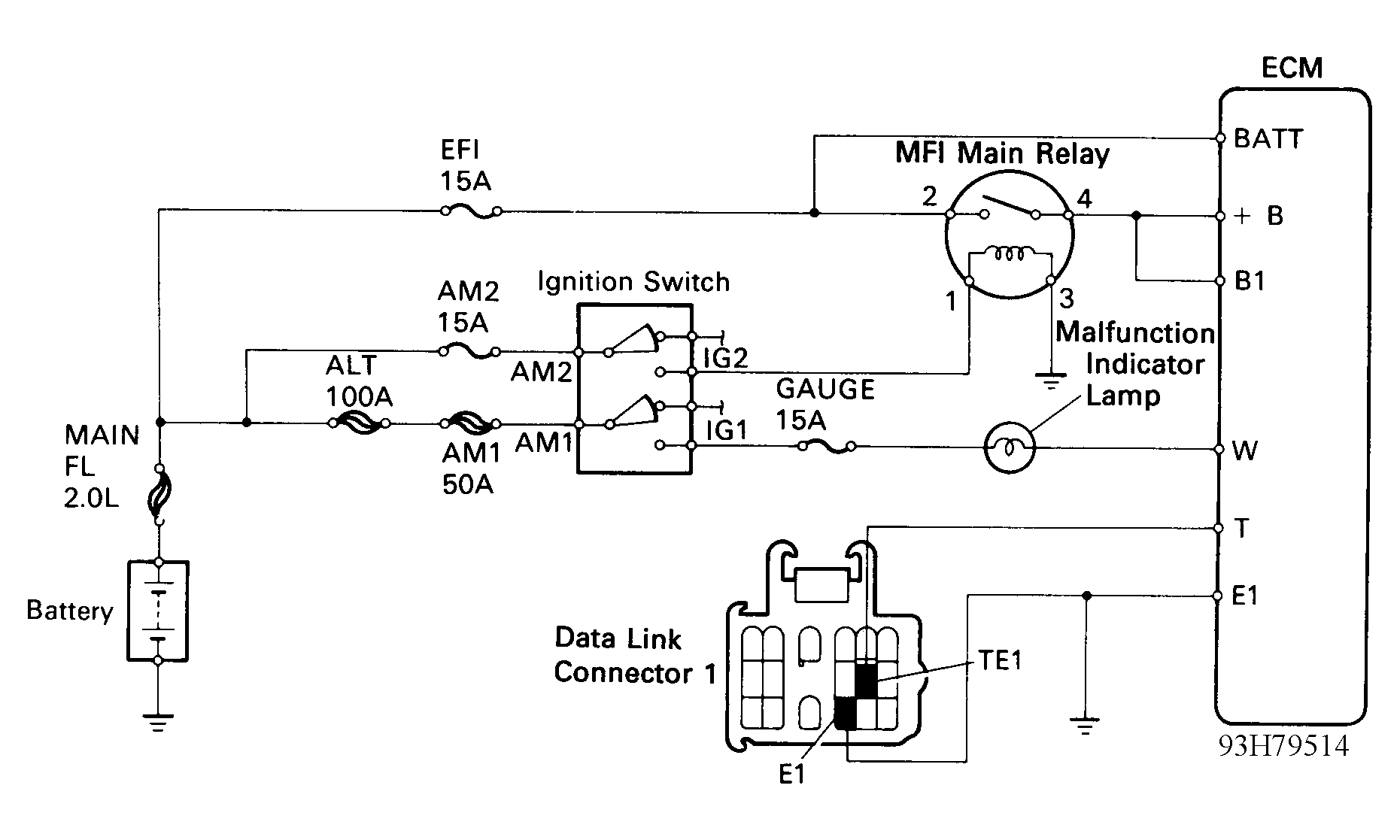

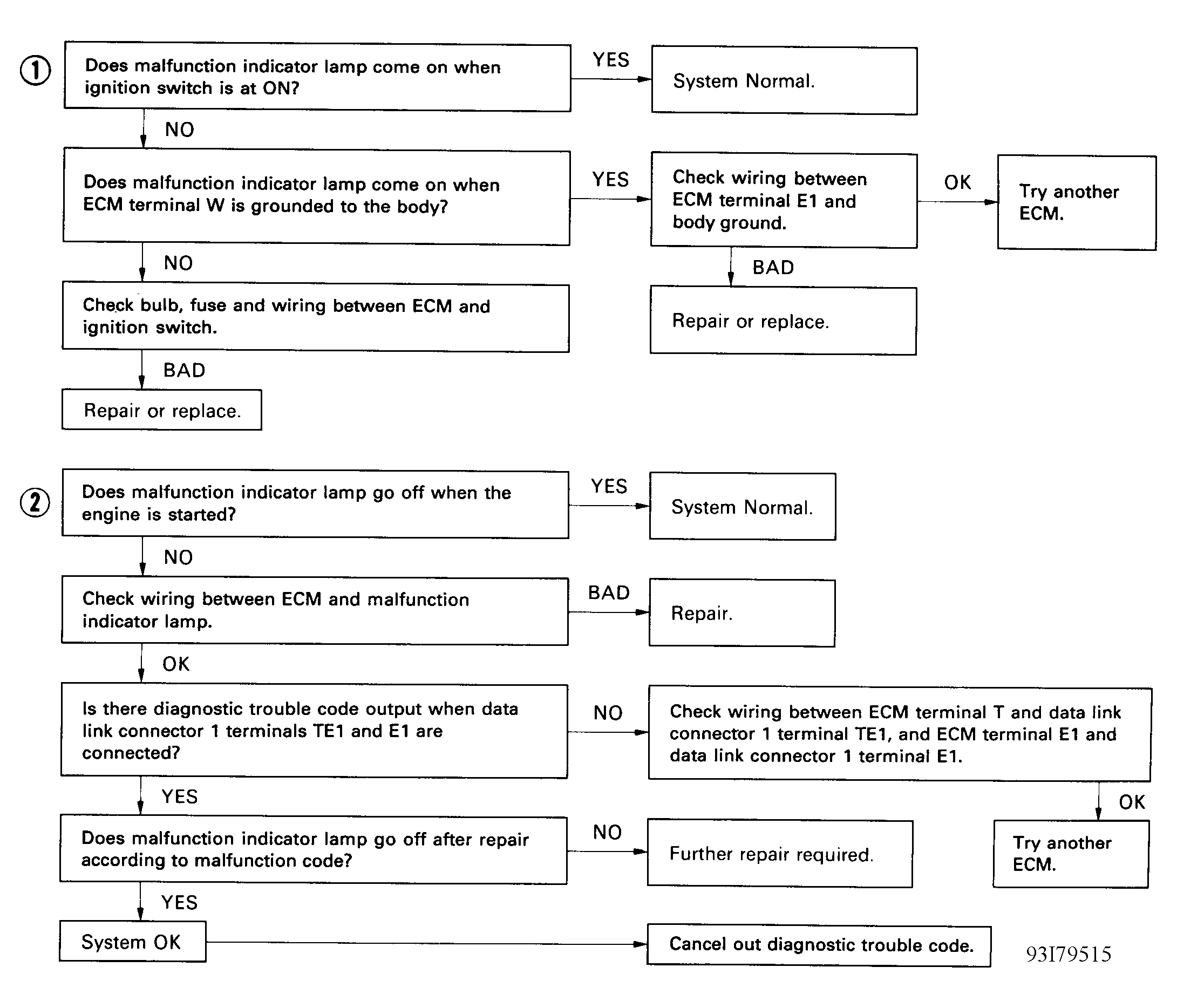

Diagnostic Circuit Check
WARNING: This page is about a different car, the 1994 Toyota Paseo. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Perform all voltage measurements with ECM harness connector installed. Use a high-impedance DVOM (10,000-ohm minimum). Verify battery voltage is greater than 11 volts.
