Fuel Pressure Regulator: Removal

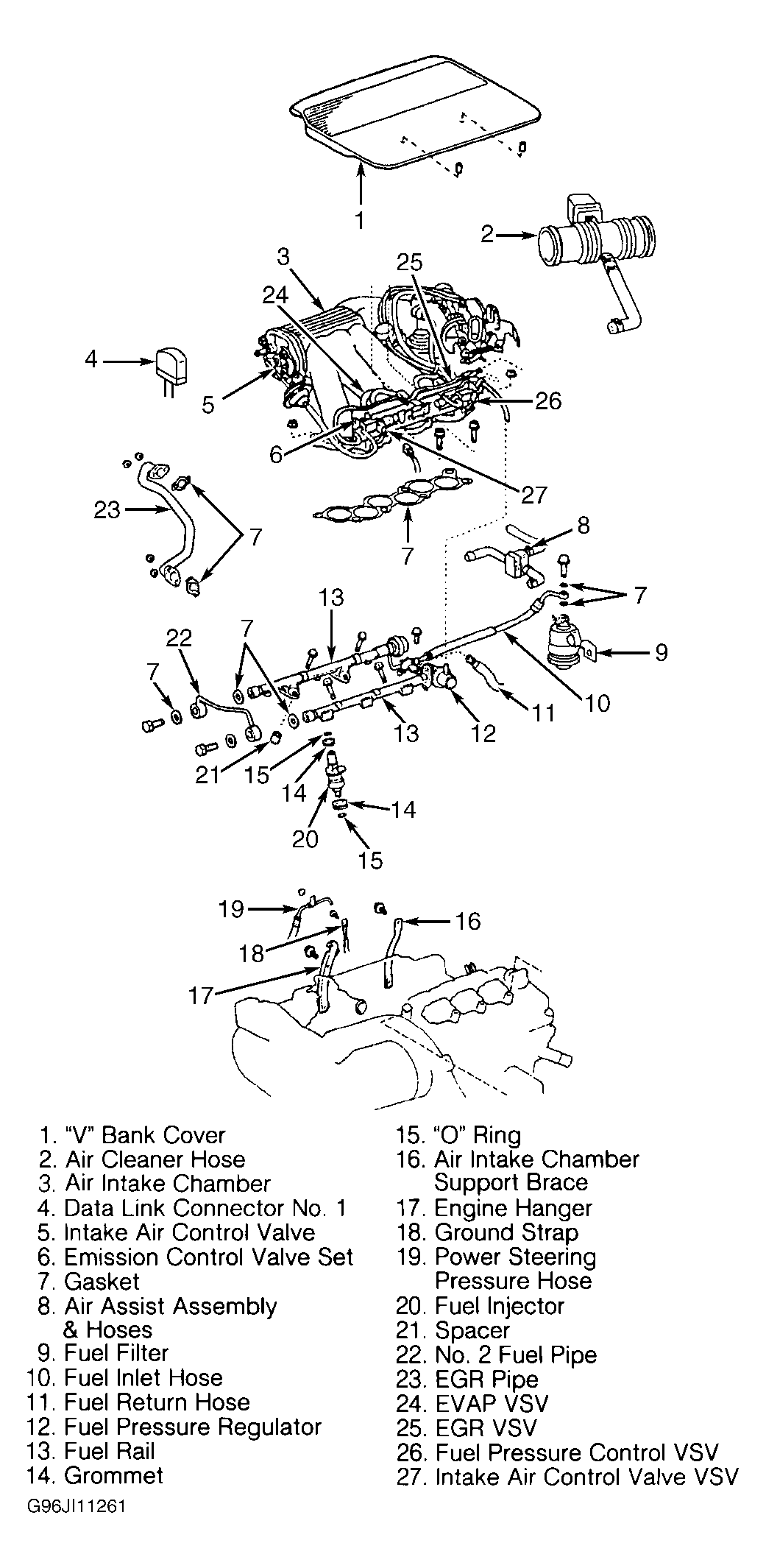

  1. Release fuel pressure. See FUEL SYSTEM PRESSURE RELEASE  under FUEL SYSTEM. Disconnect necessary hoses for access to fuel pressure regulator. Fuel pressure regulator is located on the rear of the front fuel rail. See Figure.
  2. Disconnect vacuum hose and fuel return hose from fuel pressure regulator. Remove bolts and fuel pressure regulator with "O" ring from fuel rail. Remove "O" ring from fuel pressure regulator.
