Power & Ground Circuits

For testing of power/ground circuits, see procedures in the PIN VOLTAGE CHART S article. See ECM LOCATION table for identifying ECM mounting locations.

ECM LOCATION

Model	Location
Camry	Behind Glove Box

NOTE: SeeFig 1 or Fig 2 identify ECM terminals which are used for performing tests on various components in this article.

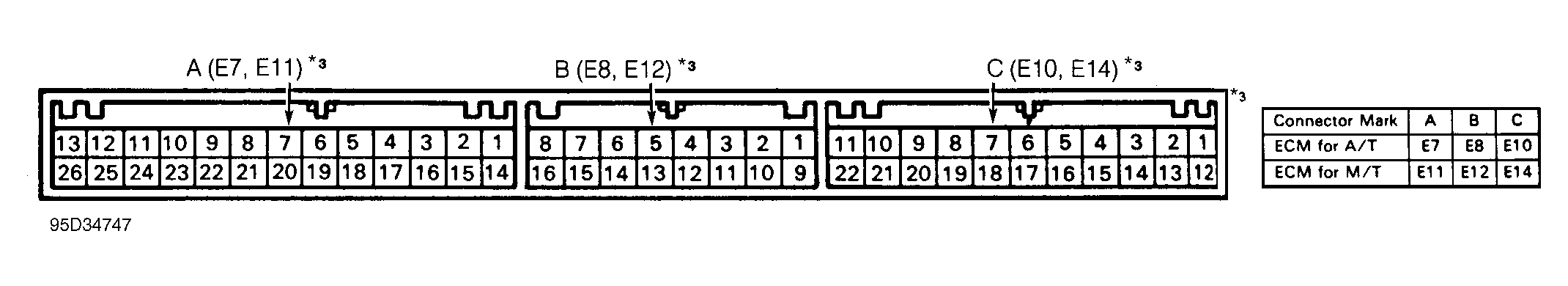

Fig 1: Identifying ECM Terminals (M/T Except Calif.)

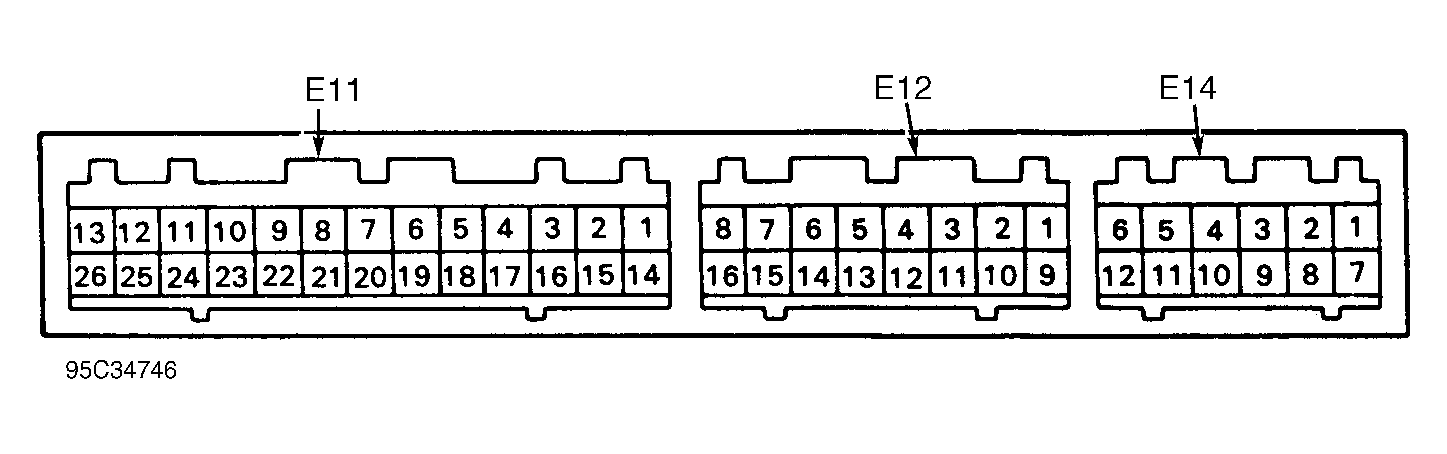

Fig 2: Identifying ECM Terminals (A/T & Calif. M/T)
