Electrical Component Locator: Grounds

GROUNDS

Component Component Location

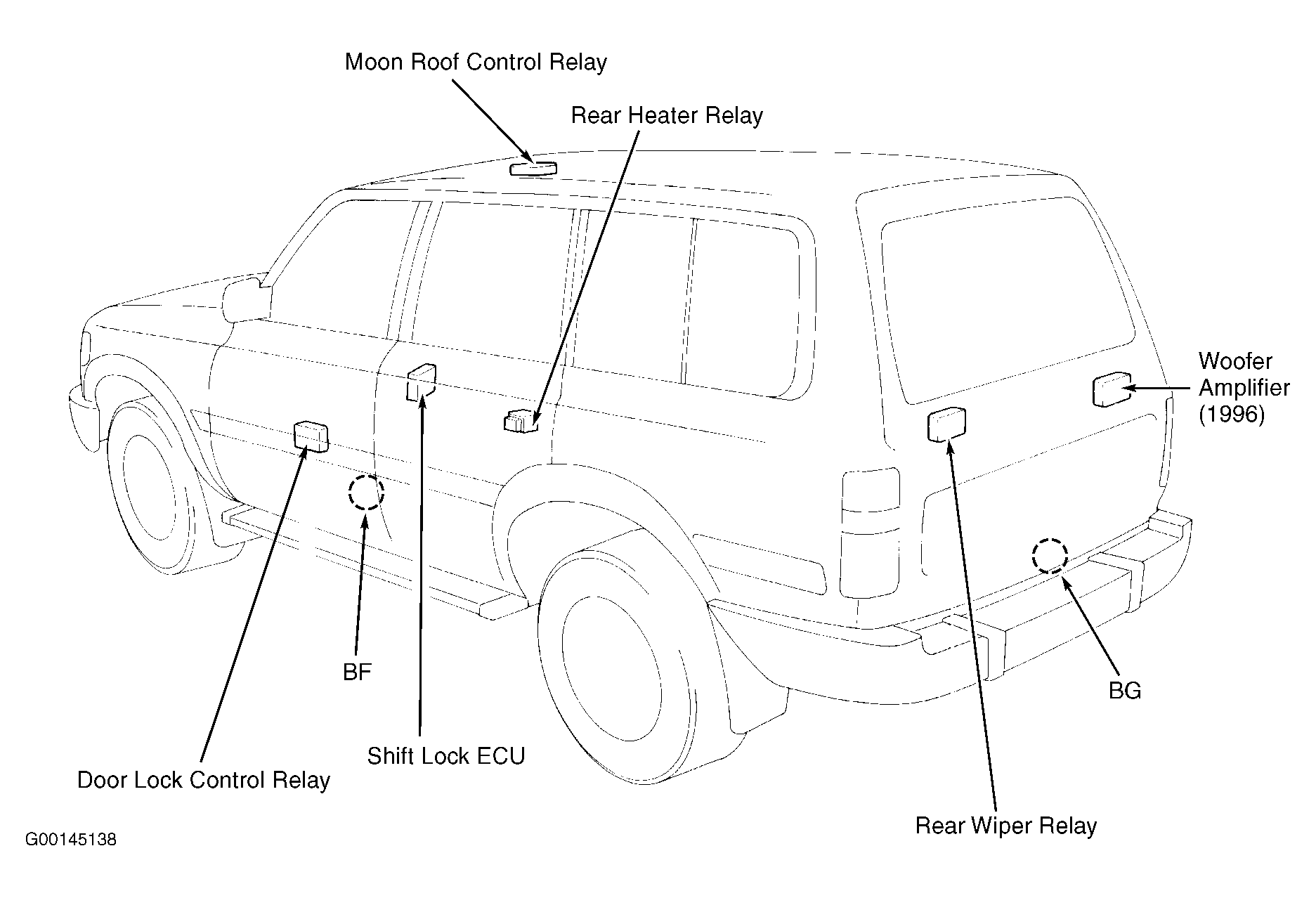

BF Under center console. See Figure.
BG At lower back panel. See Figure.
EA At front of right front fender. See Figure.
EB At front of left front fender. See Figure.
EC At left side of engine. See Figure.

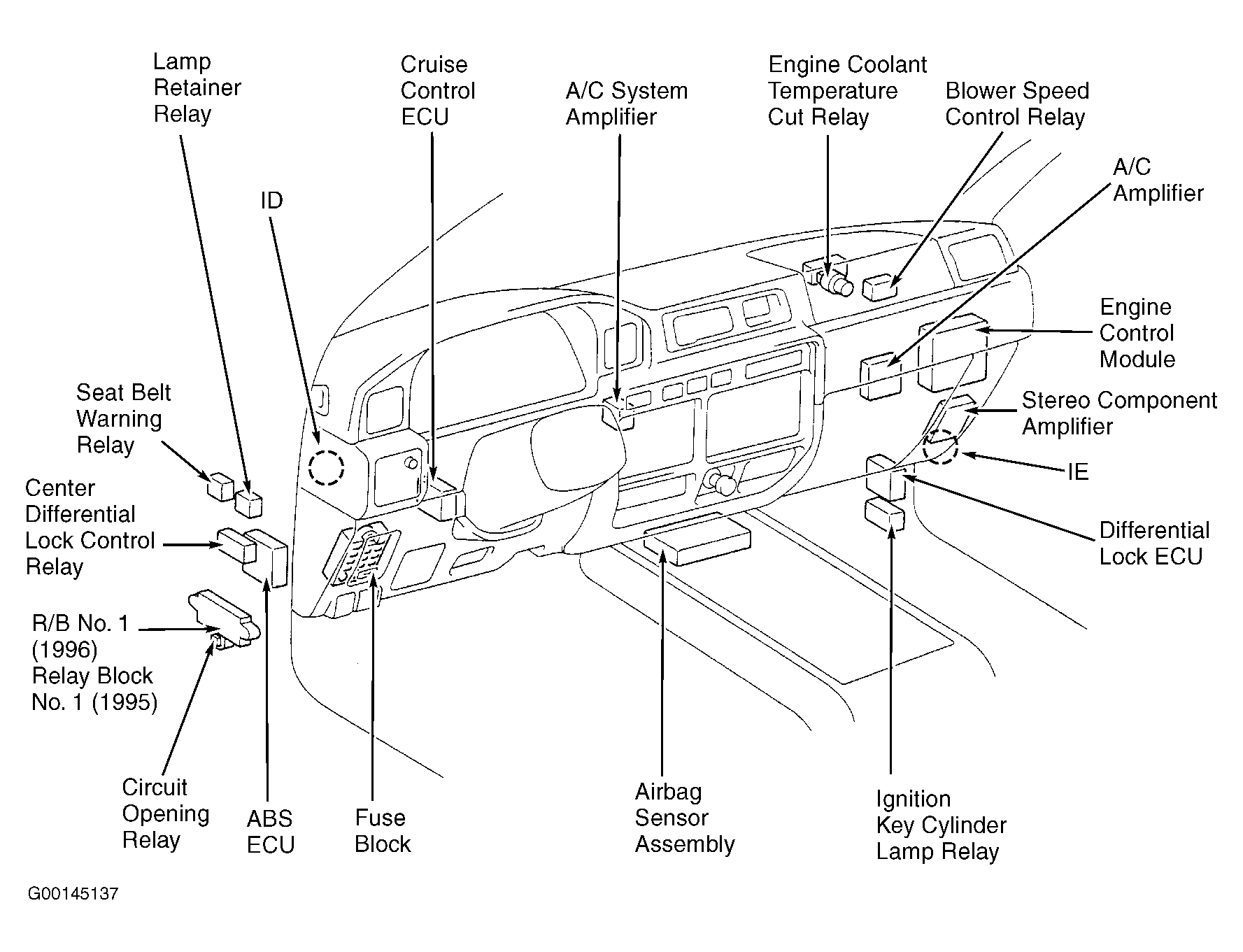

ID At left kick panel. See Figure.
IE At right kick panel. See Figure.
