Component Location

Fig 1: Data Link Connector (DLC) Location

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

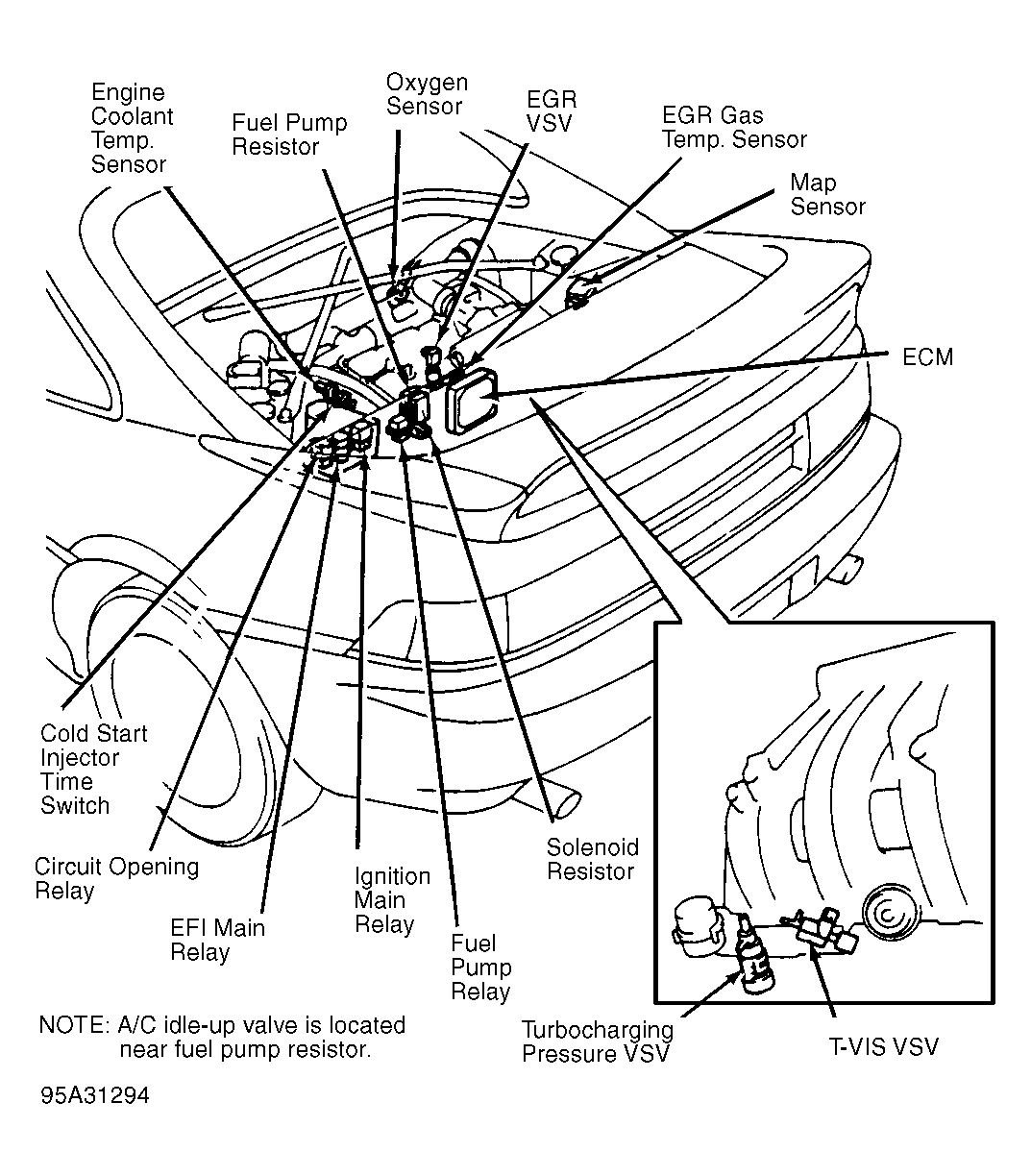

Fig 2: ECM Location

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DLC NO. 1 LOCATION

Model	Location
MR2	Passenger's Side Rear Of Engine Compartment

ECM LOCATION

Model	Location
MR2	Driver's Side Rear Corner Of Engine Compartment
