Component Testing: Computer

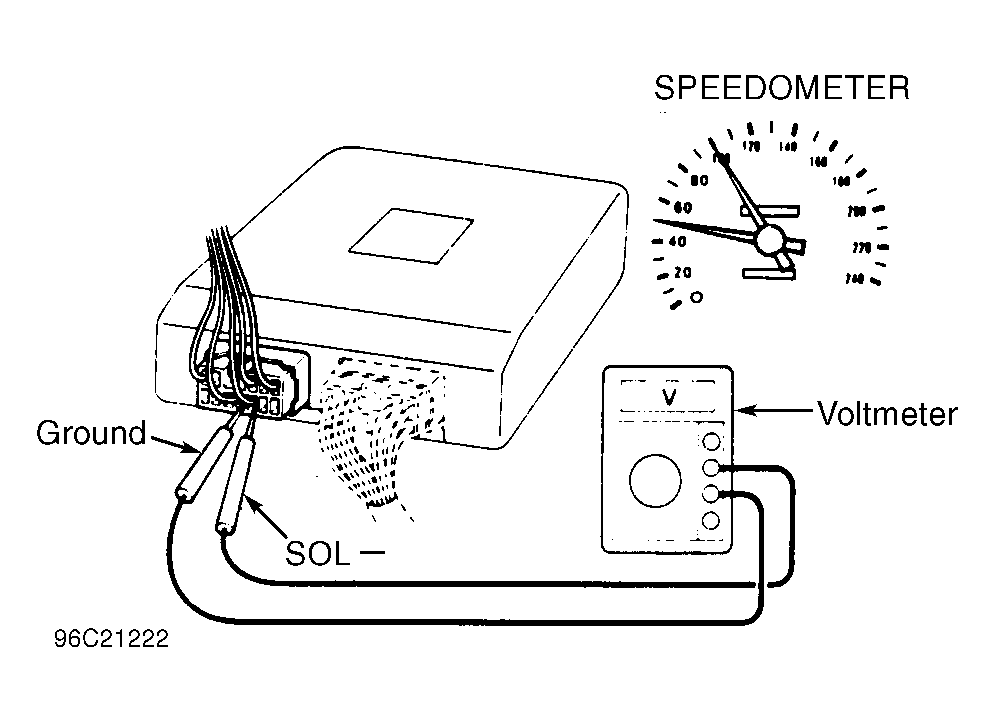

Raise and support vehicle. Remove center console. DO NOT disconnect computer connector. Start engine. Using a voltmeter, measure voltage between terminals GND and SOL (-) of computer connector. See COMPUTER VOLTAGE SPECIFICATIONS table. See Fig 1. If voltage is not as specified, replace computer.
COMPUTER VOLTAGE SPECIFICATIONS
| Test Between | Vehicle Speed MPH (KM/H) | Volts | ||
|---|---|---|---|---|
| SOL (-) & GND | (1) Zero | 0-.05 | ||
| SOL (-) & GND | 31 (50) | .12-.24 | ||
|
||||
