Stoplight Switch Test

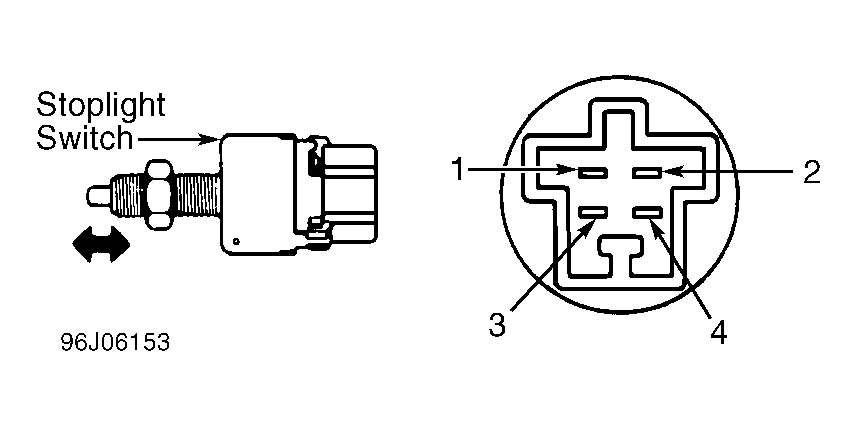

Disconnect stoplight switch connector. Check for continuity between stoplight switch terminals. See TESTING STOPLIGHT SWITCH table. See Fig 1. If continuity is not as specified, replace stoplight switch.
TESTING STOPLIGHT SWITCH
| Condition | Terminals No. | Continuity | |
|---|---|---|---|
| Brake Pedal | |||
| Depressed | 1 & 2 | Yes | |
| Released | 3 & 4 | Yes | |
