Voltmeter Test: Pickup

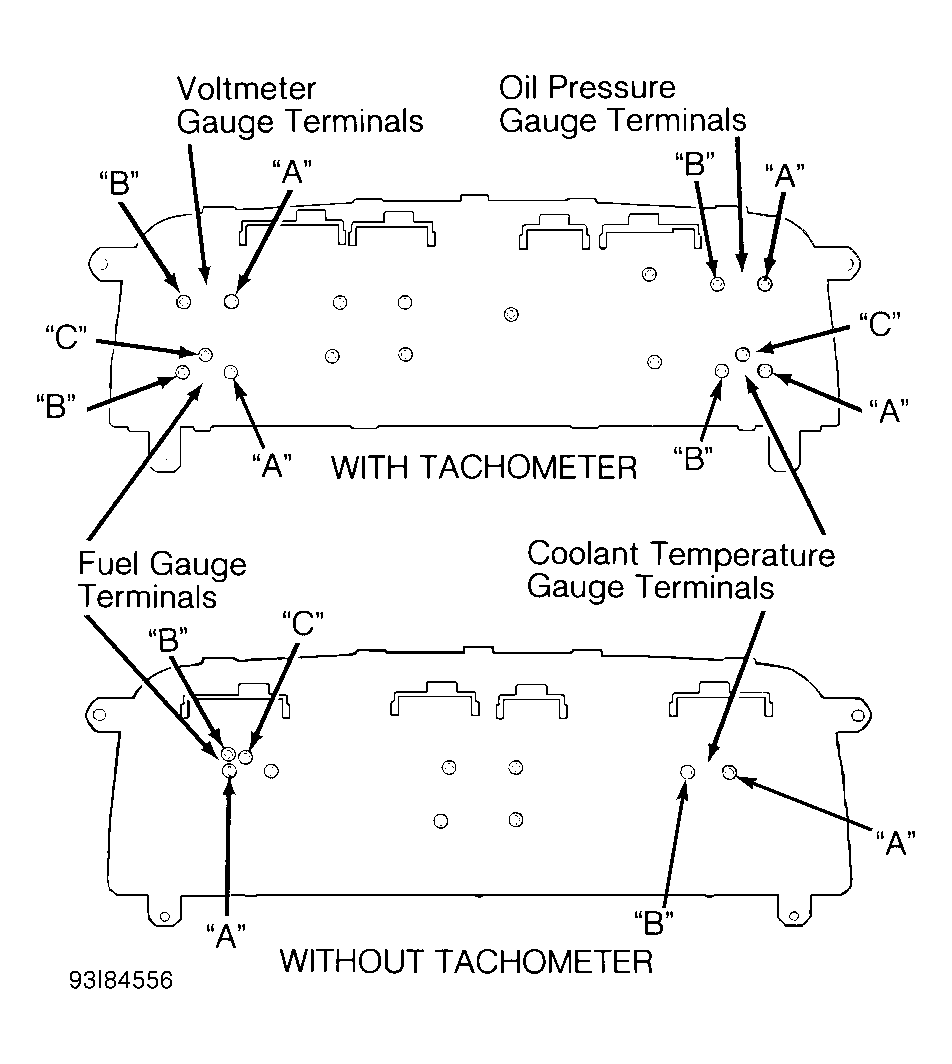

Using an ohmmeter, measure resistance between voltmeter gauge terminals. See Figure. Resistance should be 347 ohms. If resistance is not as specified, replace voltmeter gauge.
