Cruise Control Systems: Description
WARNING:
Deactivate air bag system before performing any service operation. For 1995 Corolla, see AIR BAG RESTRAINT SYSTEM
, for 1996 Corolla, see AIR BAG RESTRAINT SYSTEM
article. DO NOT
apply electrical power to any component on steering column without first deactivating air bag system. Air bag may deploy.

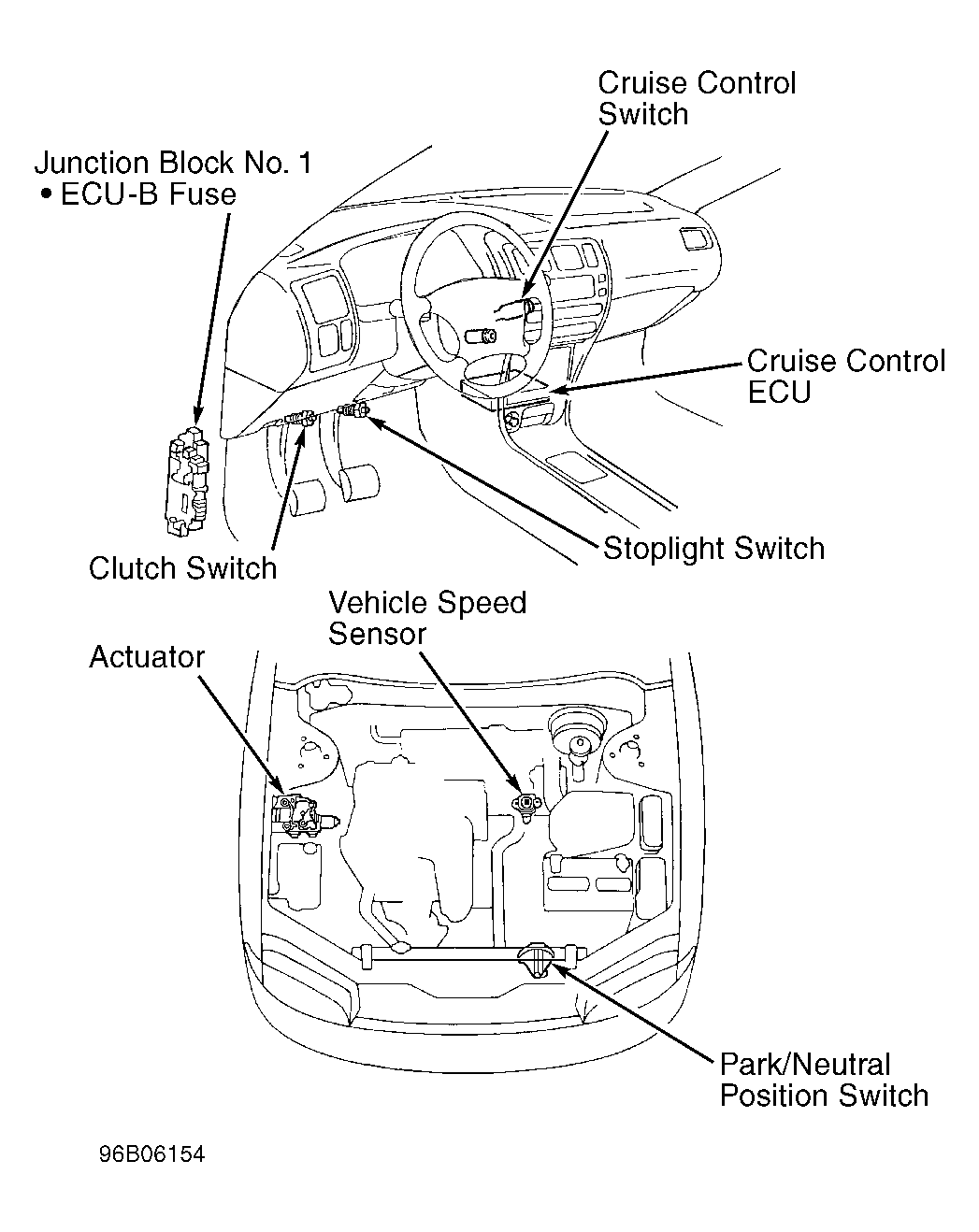

Cruise control system consists of Cruise Control Electronic Control Unit (CC ECU), actuator and associated cables, speed sensor(s), parking brake switch, CRUISE ON-OFF (MAIN) switch, stoplight switch, clutch switch (M/T), park/neutral position switch (A/T) and related wiring. See Fig 1. The system allows vehicle to cruise at a desired speed greater than 25 MPH.
