Fuel Pump Operation Using Data Link Connector No. 1 (Non-Supercharged)
WARNING: This page is about a different car, the 1995 Toyota Previa. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Data link connector No. 1 is located below driver's seat.

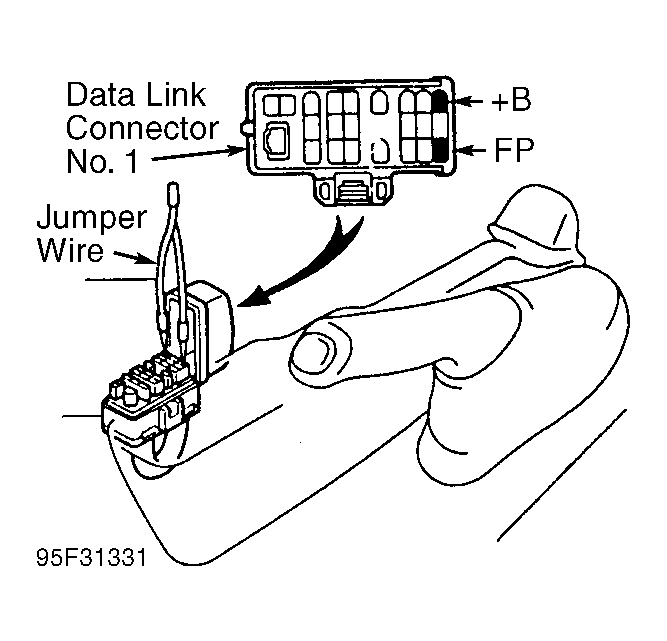

- Install Jumper Wire (SST 09843-18020) between +B and FP terminals of data link connector No. 1. See Fig 1.
- Turn ignition on. Listen for fuel pump operating sound and feel for pressure in fuel line near fuel filter. Turn ignition off. Remove jumper wire. If fuel pump operates, check fuel pressure. See FUEL PRESSURE .
- If fuel pump does not operate, connect a jumper wire from positive battery terminal to FP terminal of data link connector No. 1. If fuel pump operates, EFI main relay, EFI No. 2 relay (if used), circuit opening relay or fuel pump relay may be defective. For relay application and explanation of relay operation, see FUEL PUMP CONTROL CIRCUIT .
- If relays are okay, check wiring circuit and fuses. If fuel pump does not operate, check for defective fuel pump, open circuit between data link connector No. 1 and fuel pump or defective fuel pump ground. See wiring diagram in the WIRING DIAGRAMS article.
