Main Relay (Computer/Fuel System): Locations

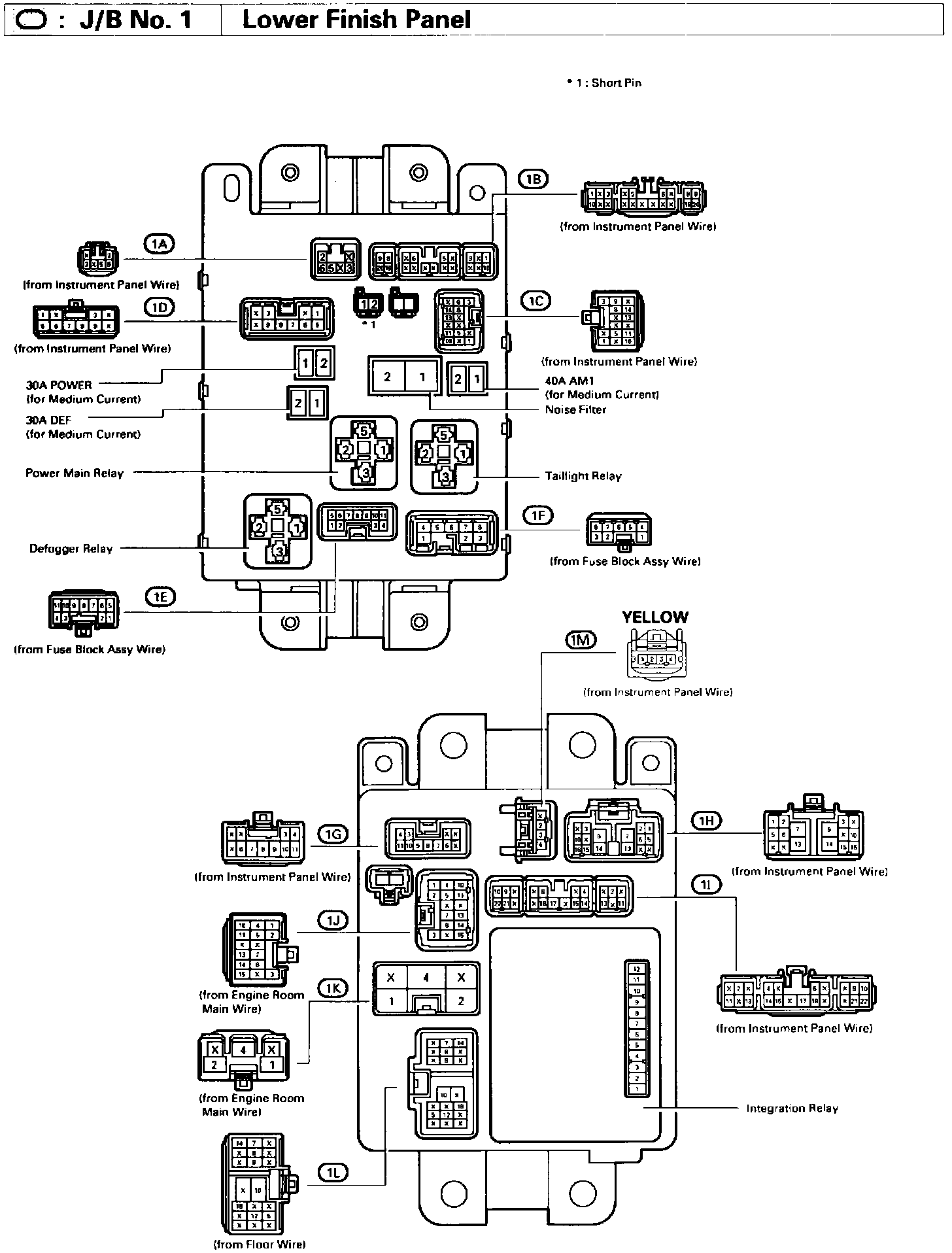

Locations-J/B No.1 Lower Finish Panel (Fig 20):

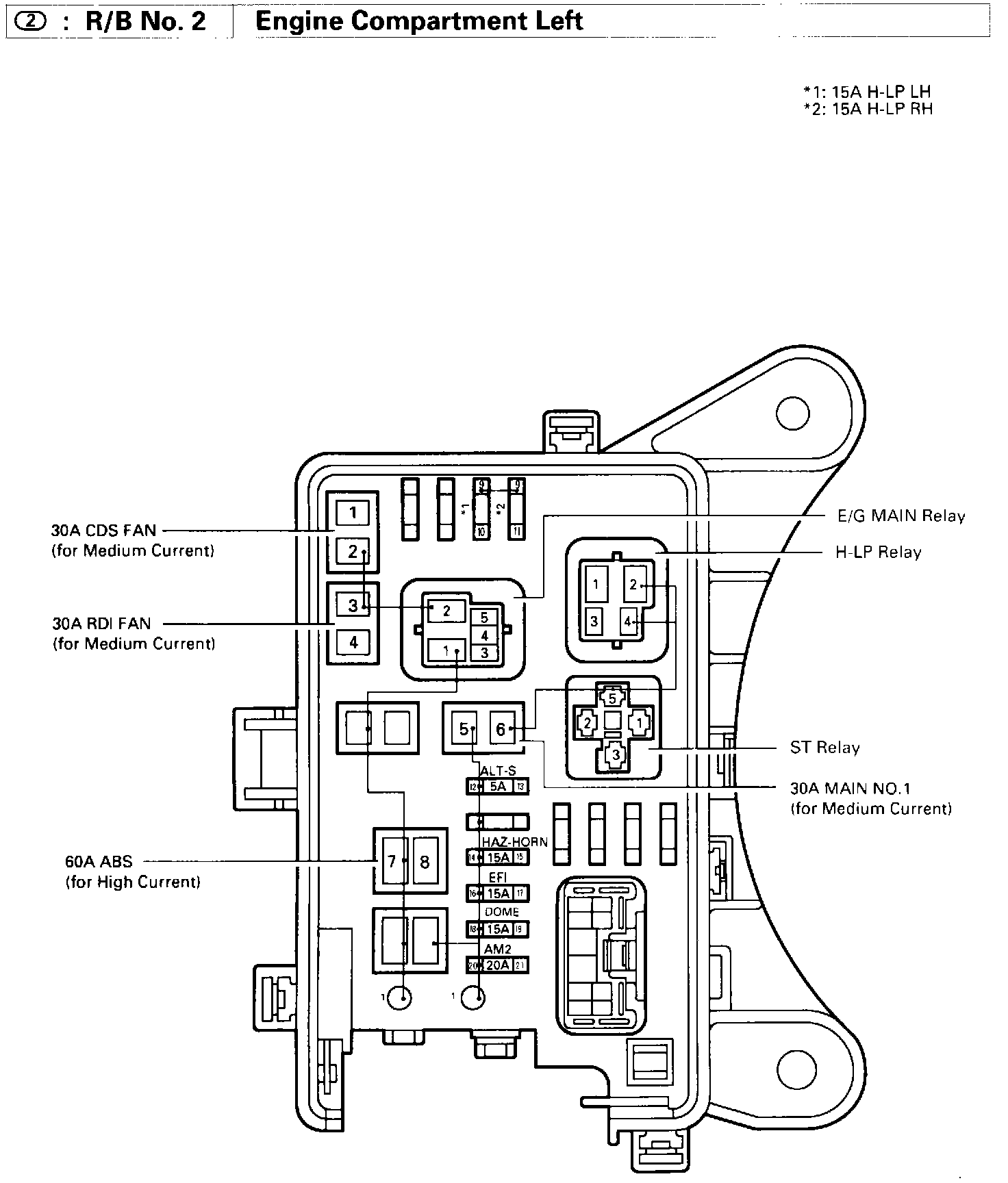

Locations-R/B No.2 Engine Compartment Left (Fig 22):

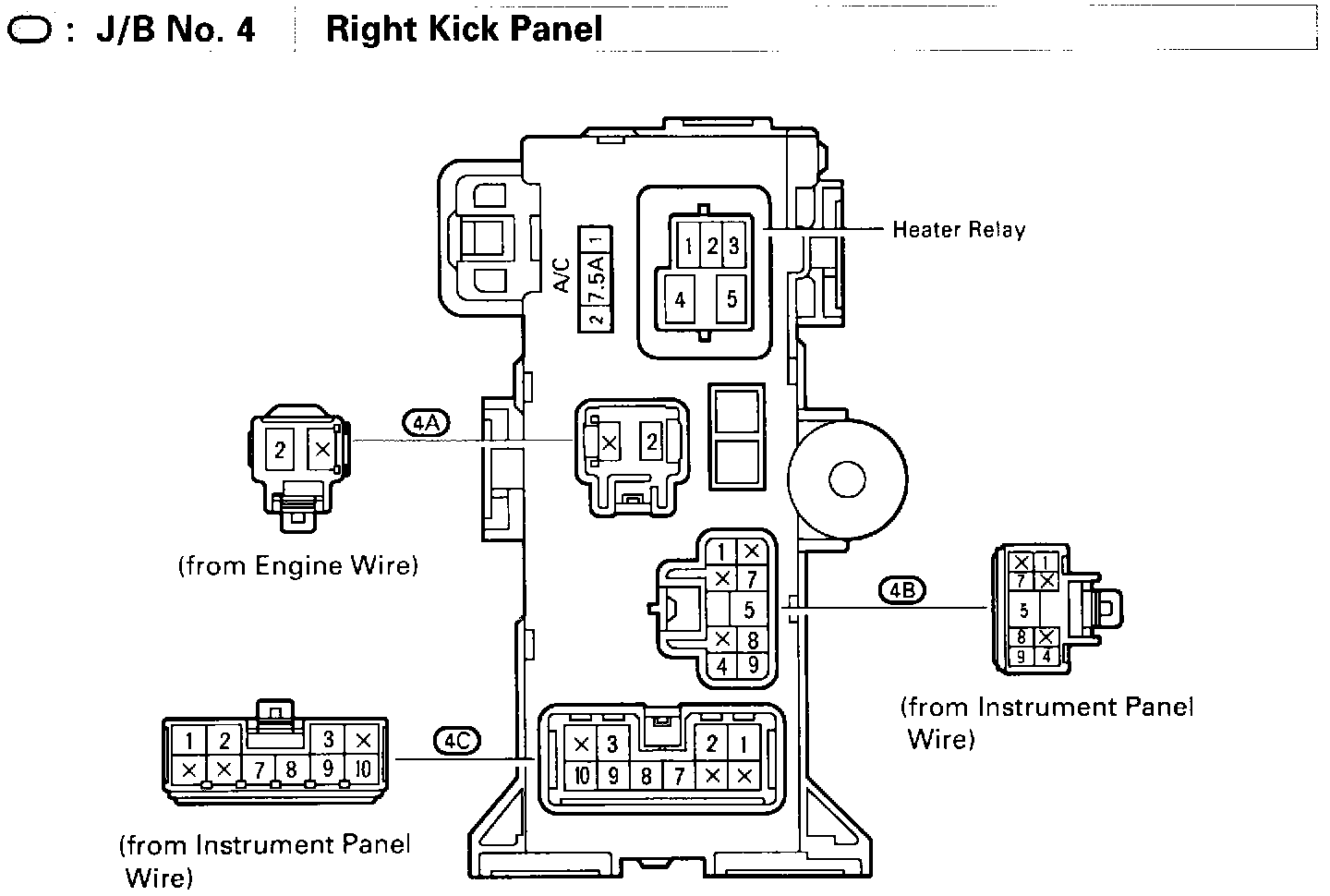

Locations-J/B No.4 Right Kick Panel (Fig 23):

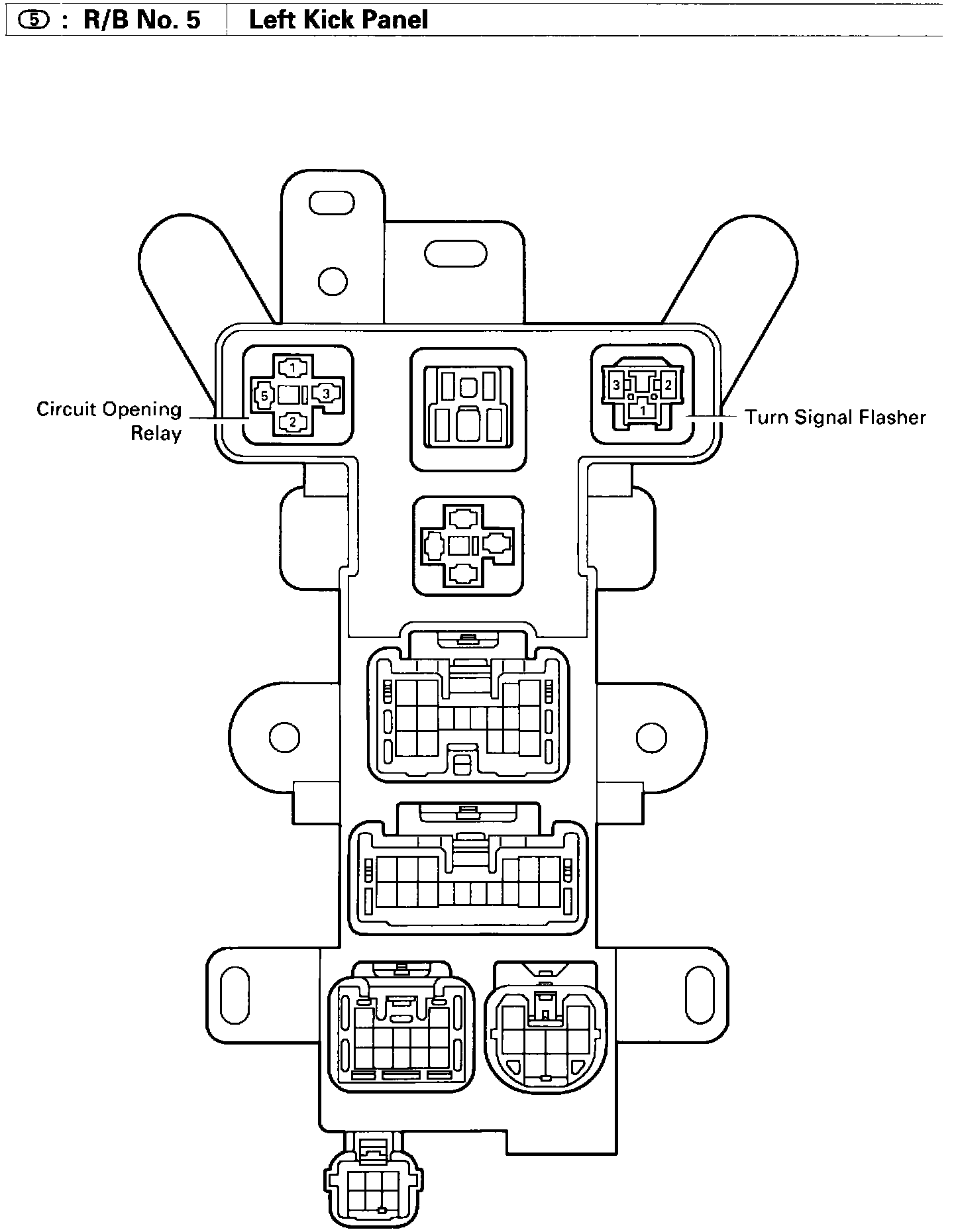

Locations-R/B No.5 Left Kick Panel (Fig 24):

Locations-R/B No.6 Engine Compartment Left (Fig 25):

Locations-Fusible Link Block, Near The Battery (Fig 25):

Locations-Fuse Block Lower Finish Panel (Fig 26):

Locations-Engine Compartment (Fig 18):

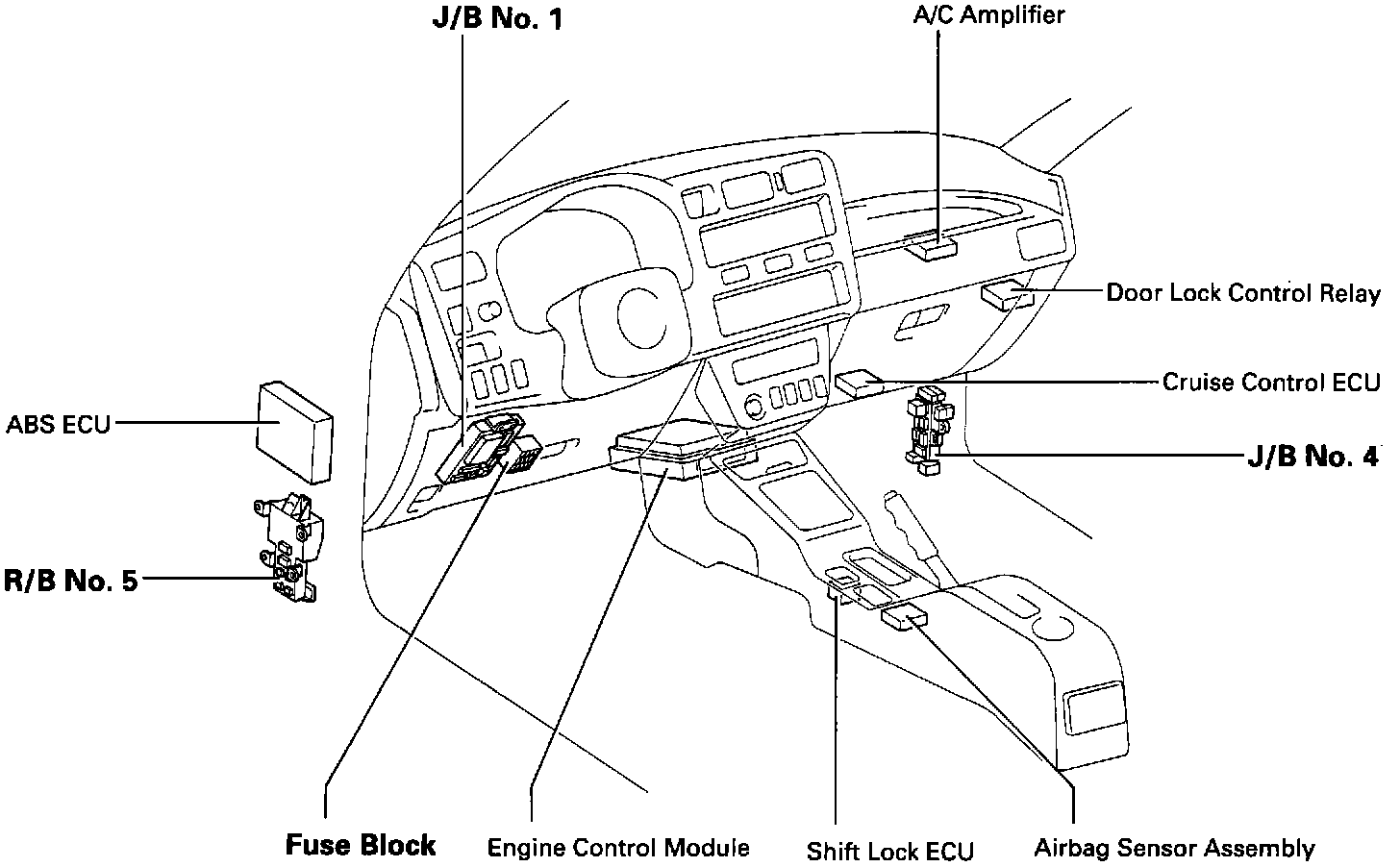

Locations-Instrument Panel (Fig 18):

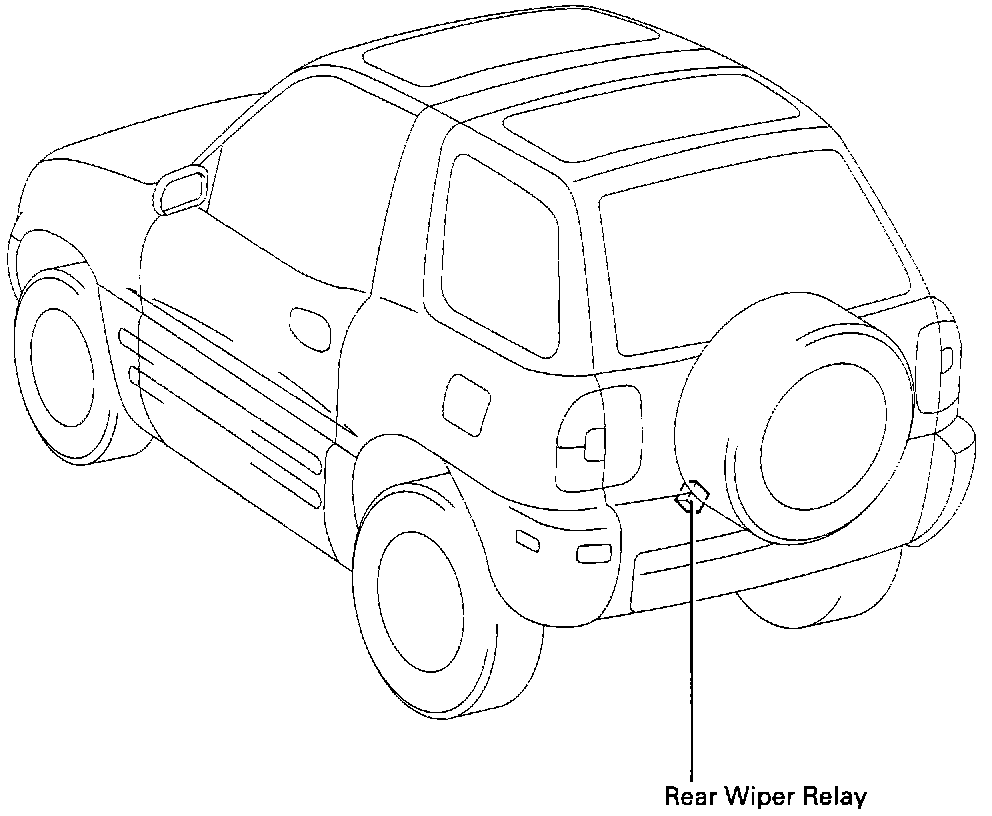

Locations-Body:2 Door (Fig 19):

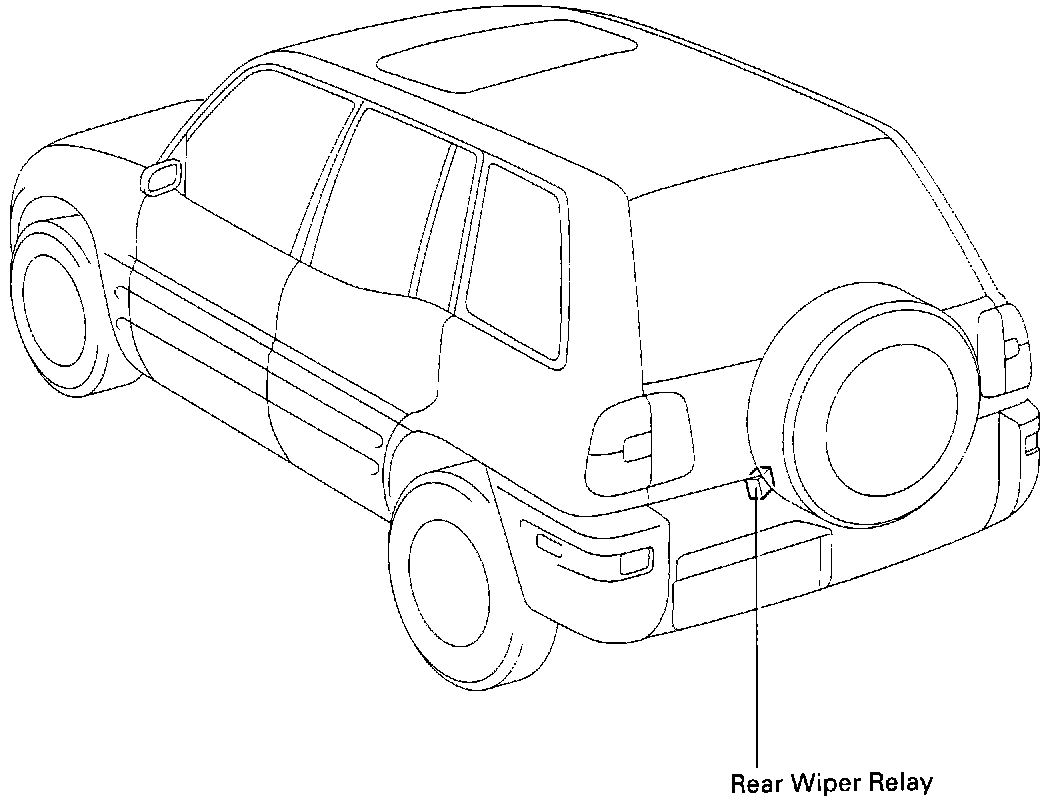

Locations-Body:4 Door (Fig 19):
