Removal & Installation

Crankshaft position sensor is located just behind the crankshaft pulley. See Fig 1. Remove lower engine cover.
On turbo models, remove air intake hose to the charger air cooler for access to generator. On all models, remove lower cooling fan shroud.
Remove drive belt and generator. Disconnect electrical connector at crankshaft position sensor. Remove crankshaft position sensor.
To install, reverse removal procedure. Tighten bolt to specification. See TORQUE SPECIFICATIONS table.

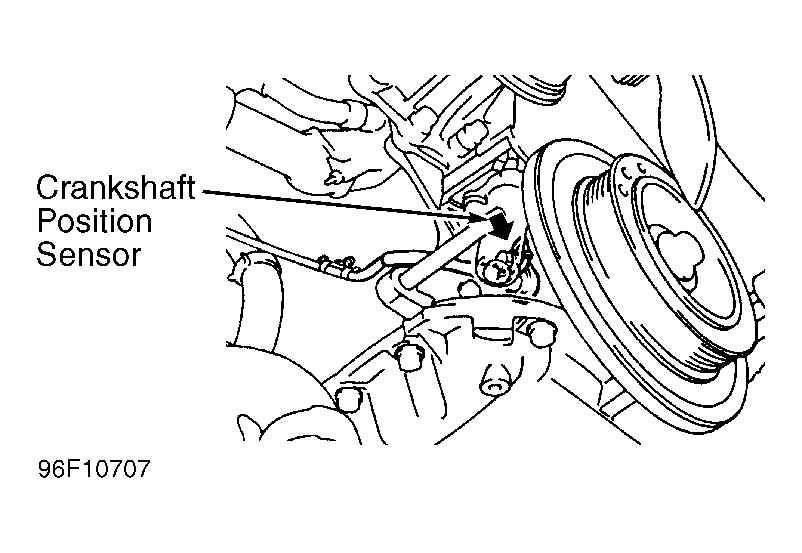

Fig 1: Locating Crankshaft Position Sensor
