DTC 41: IG Power Source Circuit

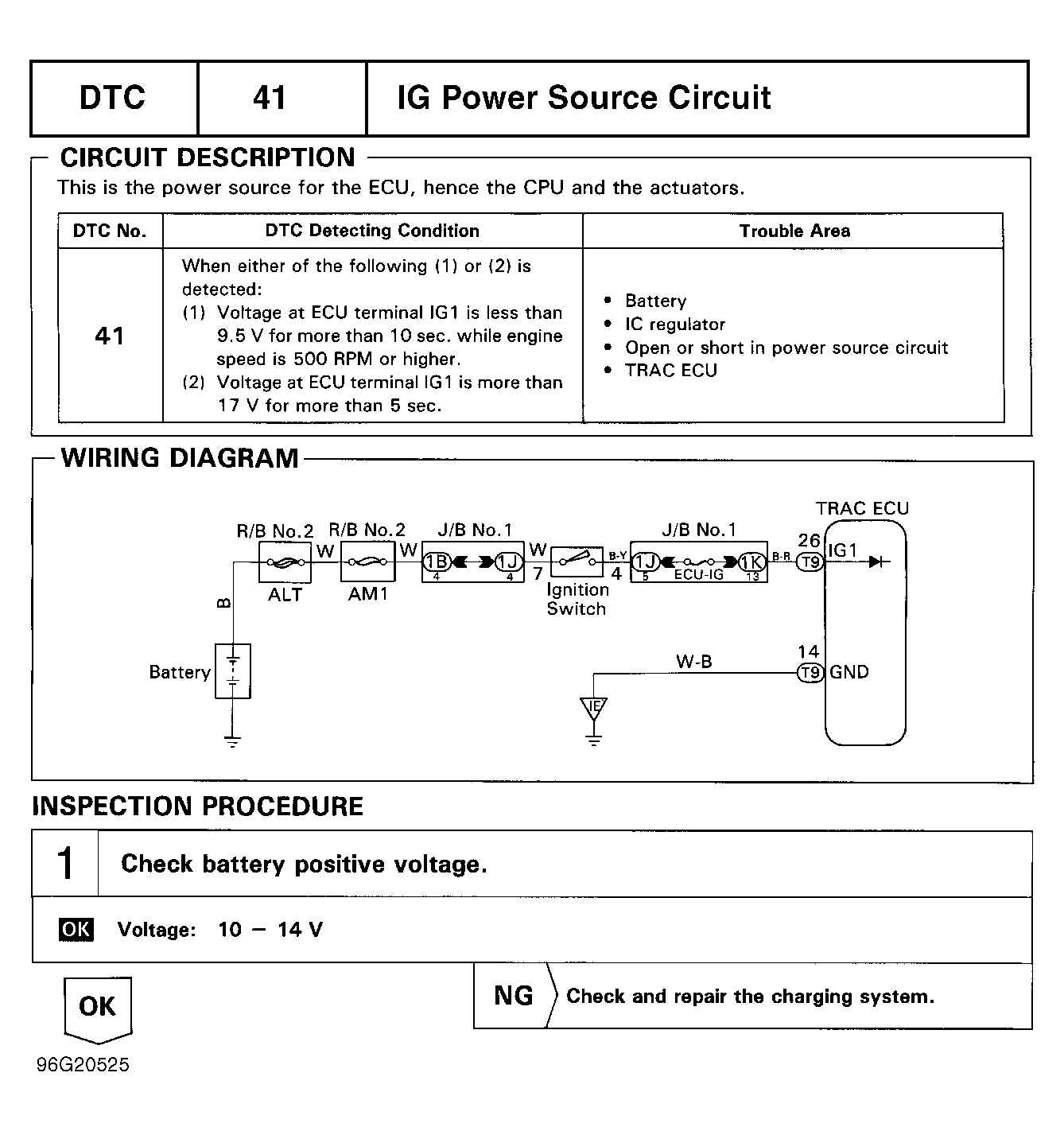

Fig 1: DTC 41 - IG POWER SOURCE CIRCUIT CHART (1 OF 2)
G96G20525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

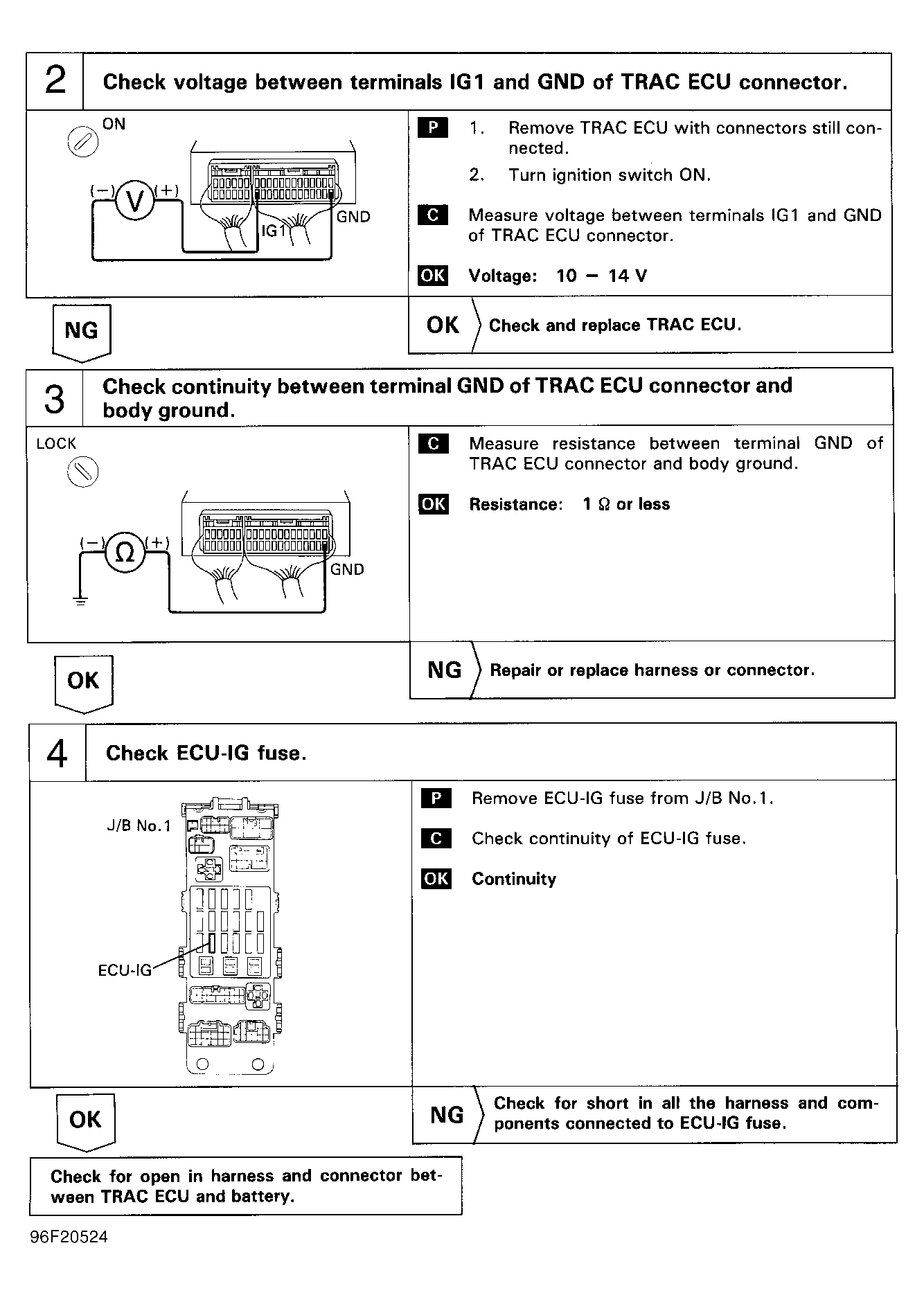

Fig 2: DTC 41 - IG POWER SOURCE CIRCUIT CHART (2 OF 2)
G96F20524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
