Component Testing

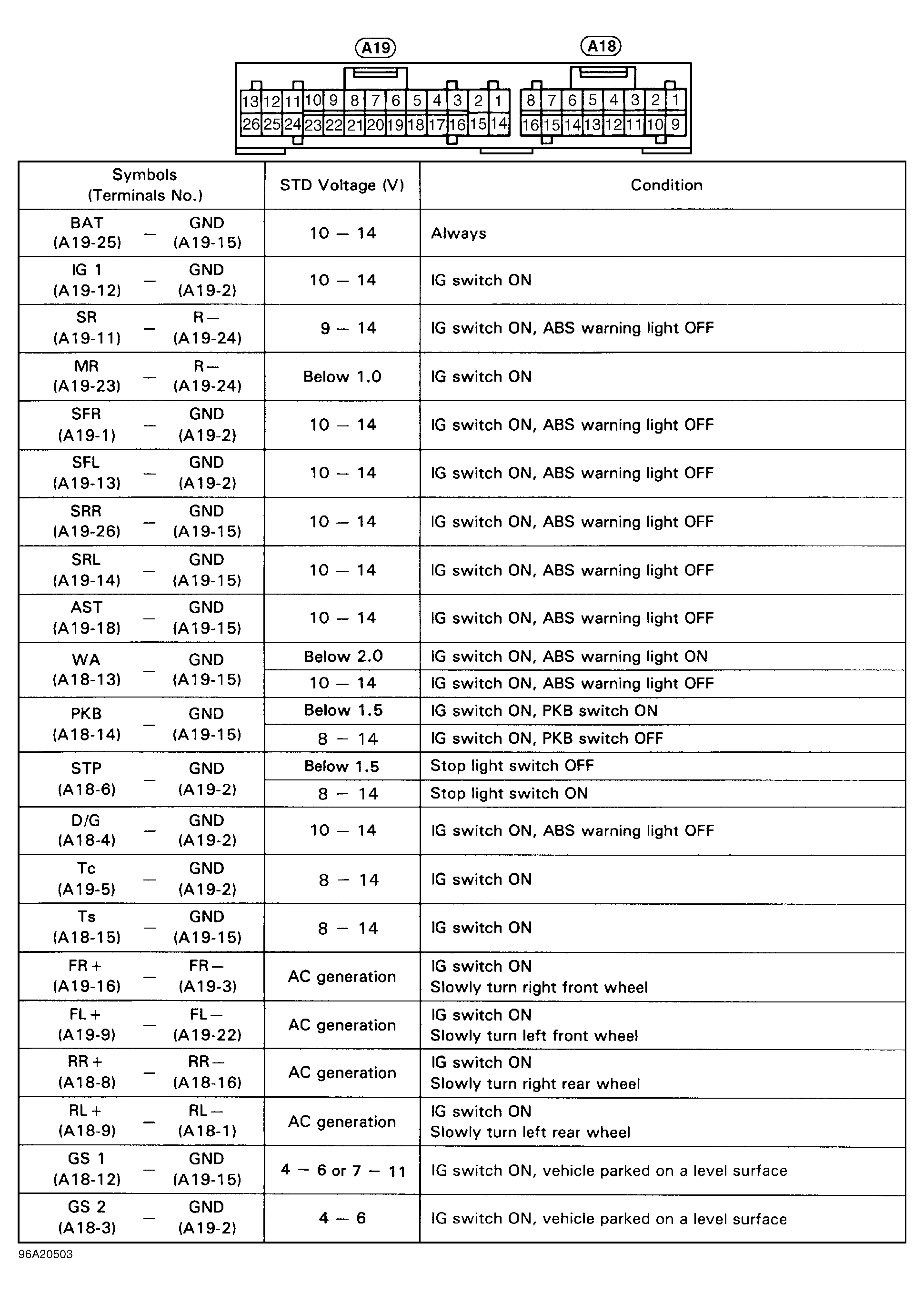

For component testing, see CIRCUIT TESTS . TRAC ECU values can be measured using Toyota Hand-Held Tester and Break-Out Box. TRAC circuits and harness can also be tested by backprobing TRAC ECU connectors and comparing measured voltages with TRAC ECU standard values chart. See Fig 1.
