Removal & Installation

  1. Crankshaft position sensor is located just above crankshaft pulley. See Fig 1. Disconnect electrical at crankshaft position sensor. Remove crankshaft position sensor.
  2. To install, reverse removal procedure. Tighten bolt to specification. See TORQUE SPECIFICATIONS  table.

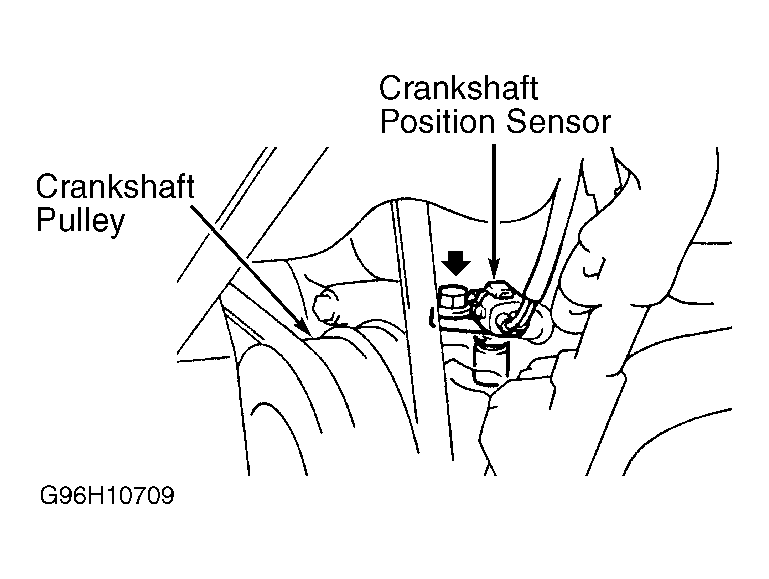

Fig 1: Locating Crankshaft Position Sensor
G96H10709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
