Washer Switch Test

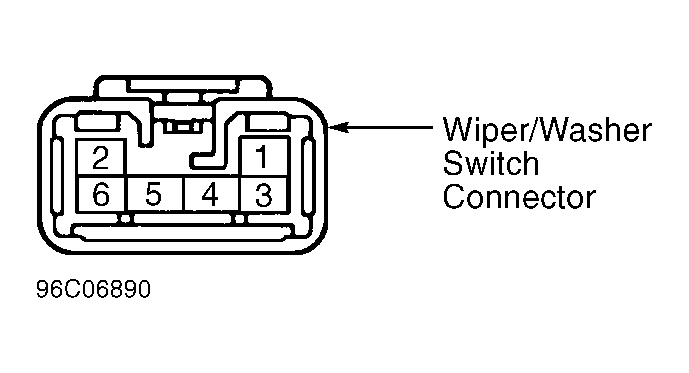

With washer switch in specified position, ensure continuity exists between terminals listed. See WASHER SWITCH CONTINUITY TEST table. See Figure- Figure . Replace complete wiper switch assembly if continuity is not as specified.
WASHER SWITCH CONTINUITY TEST
| Switch Position | (1) Terminals | Continuity | |||
|---|---|---|---|---|---|
| Tercel (Canada) | |||||
| Off | 1, 2, 3, 4, 5 & 6 | No | |||
| On | 3 & 4 | Yes | |||
| Tercel (USA) | |||||
| Off | 2 & 11 | No | |||
| On | 2 & 11 | Yes | |||
|
|||||
