Power Window Switch Continuity Test (Passenger's Side & Rear Switches)

Using an ohmmeter, check continuity between specified terminals with power window switch in specified position. See the POWER WINDOW SWITCH CONTINUITY TEST (PASSENGER'S SIDE & REAR SWITCHES) table. See Fig 1. If continuity does not exist at specified terminals, replace appropriate power window switch.

POWER WINDOW SWITCH CONTINUITY TEST (PASSENGER'S SIDE & REAR SWITCHES)

Application & Position

⁽¹⁾ Terminal No.

Passenger's Door

1 & 5; 3 & 4

OFF

1 & 2; 3 & 4

DOWN

1 & 2; 4 & 5

Rear Door

1 & 2; 3 & 4

OFF

1 & 2; 4 & 5

DOWN

2 & 3; 4 & 5

⁽¹⁾	See Fig 1-3.

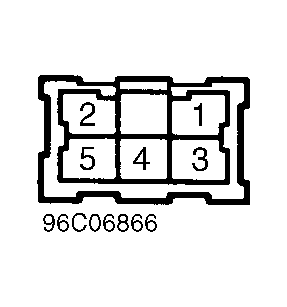

Fig 1: Power Window Switch Connector ID - Passenger's Side & Rear Switches - Rear Door

Fig 2: Power Window Switch Connector ID - Passenger's Side & Rear Switches - Passenger's Door
