A/T Models

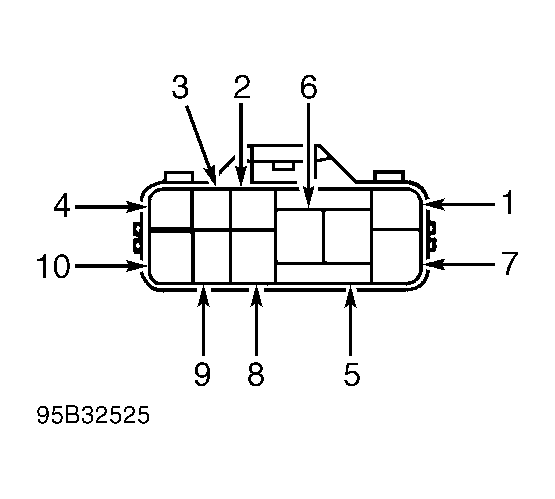

- Disconnect electrical connector from Park/Neutral Position (PNP) switch, mounted on side of transmission/transaxle. Note terminal identification. See Fig 1.
- Using ohmmeter, check for continuity between specified terminals with shift lever in proper positions. See PARK/NEUTRAL POSITION SWITCH SPECIFICATIONS table. If proper continuity cannot obtained, adjust or replace switch as necessary.
PARK/NEUTRAL POSITION SWITCH SPECIFICATIONS
| Shift Lever Position | Terminal Continuity |
|---|---|
| Park | 5 & 6; 4 & 7 |
| Reverse | 4 & 8 |
| Neutral | 5 & 6; 4 & 10 |
| Drive | 4 & 9 |
| 2 | 2 & 4 |
| Low | 3 & 4 |
