Diagnosis & Repair (Using OBD-II Scan Tool)
- Check EVAP VSV, vapor pressure sensor VSV and vapor pressure sensor wiring harness connectors for damaged pins, corrosion and loose wires. Repair as necessary. If connectors are okay, go to next step. For component locations, see THEORY/OPERATION article.
- Check all EVAP related vacuum hoses for cracks, looseness and correct routing. Repair vacuum hoses as necessary. If vacuum hoses are okay, go to next step. For proper vacuum hose routing, see VACUUM DIAGRAMS article.

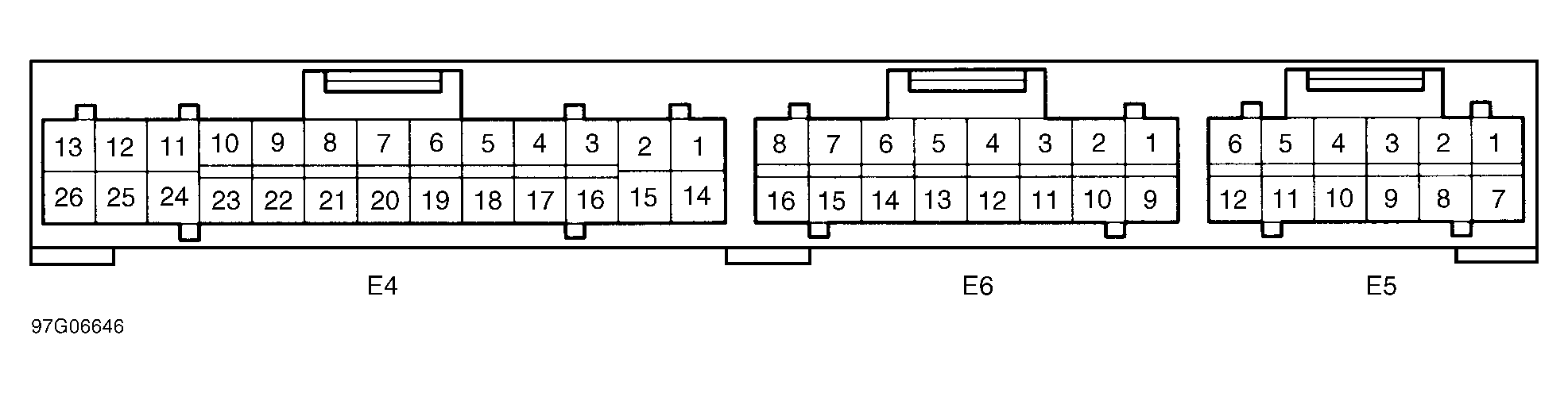

- Access ECM behind glove box. Turn ignition on. Backprobing ECM connector, measure voltage between terminals No. 11 (Light Green/Red wire) and No. 9 (Brown wire) at ECM E6 connector. See Figure. If voltage is 4.5-5.5 volts, go to next step. If voltage is not 4.5-5.5 volts, replace ECM and retest.
- Backprobing ECM connector, measure voltage between terminals No. 12 (Yellow/Black wire) and No. 9 (Brown wire) at ECM E6 connector. Disconnect vacuum hose from vapor pressure sensor. Sensor is located in right rear of engine compartment. Apply pressure or vacuum to sensor as specified. Voltage reading should be as follows:
- 2.9-3.7 volts with no vacuum applied.
- 4.2-4.8 volts with .22 psi (1.5 kPa) applied.
- .5 volt with .59 in. Hg (2.0 kPa) vacuum applied.
If voltage is as specified, go to step 6). If voltage is not as specified, go to next step.
- Check for open or short circuit in wiring harness between vapor pressure sensor and ECM. See appropriate wiring diagram in WIRING DIAGRAMS article. Repair wiring as necessary. If wiring harness is okay, replace vapor pressure sensor.

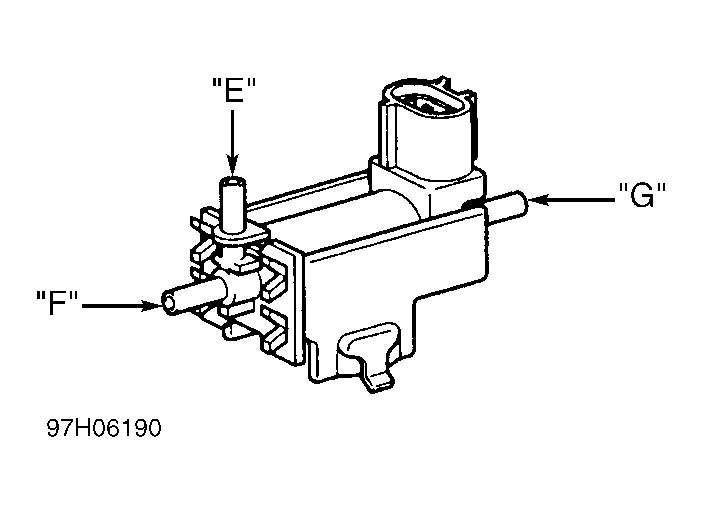

- Disconnect EVAP VSV vacuum hoses. VSV is located near MASS airflow sensor. Apply air pressure to VSV port "E". See Fig 1. Air should not flow from port "F". Access ECM behind glove box. Turn ignition on. Connect jumper wire between ground and terminal No. 7 (Blue/White wire) at ECM E6 connector. See Figure. Air should flow from port "F". If VSV functions as specified, go to step 9). If VSV does not function as specified, go to next step.
- Check EVAP VSV. See EMISSION SYSTEMS & SUB-SYSTEMS in SYSTEM/COMPONENT TESTS article. Replace VSV as necessary. If VSV is okay, go to next step.
- Check for open or short circuit in wiring harness between EFI main relay, EVAP VSV and ECM. See appropriate wiring diagram in WIRING DIAGRAMS article. Repair wiring as necessary. If wiring harness is okay, replace ECM and retest.
- Disconnect vapor pressure sensor VSV vacuum hoses. VSV is mounted on top of EVAP charcoal canister. Apply air pressure to VSV port "E". See Fig 2. Air should flow from port "G". Access ECM behind glove box. Turn ignition on. Connect jumper wire between ground and terminal No. 8 (Green/Yellow wire) at ECM E6 connector. See Figure. Air should flow from port "F". If VSV does not function as specified, go to next step. If VSV functions as specified, check charcoal canister. See EMISSION SYSTEMS & SUB-SYSTEMS in SYSTEM/COMPONENT TESTS article. Replace canister as necessary.
- Check vapor pressure sensor VSV. See EMISSION SYSTEMS & SUB-SYSTEMS in SYSTEM/COMPONENT TESTS article. Replace VSV as necessary. If VSV is okay, go to next step.
- Check for open or short circuit in wiring harness between EFI main relay, vapor pressure sensor VSV and ECM. See appropriate wiring diagram in WIRING DIAGRAMS article. Repair wiring as necessary. If wiring harness is okay, replace ECM and retest.
