Service Point Locations

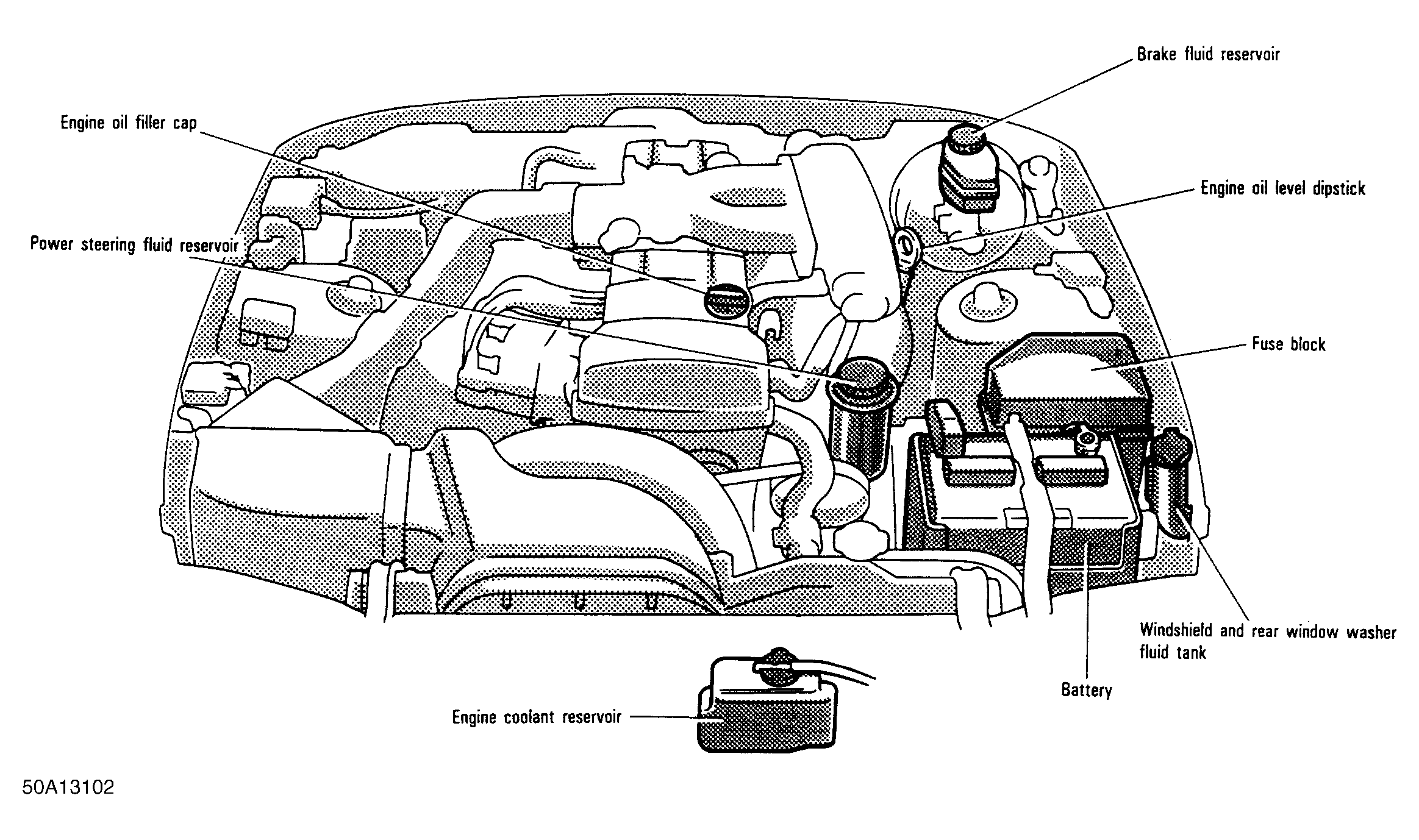

Fig 1: Service Point Locations (2JZ-GE Non-Turbo Engine)
G50A13102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

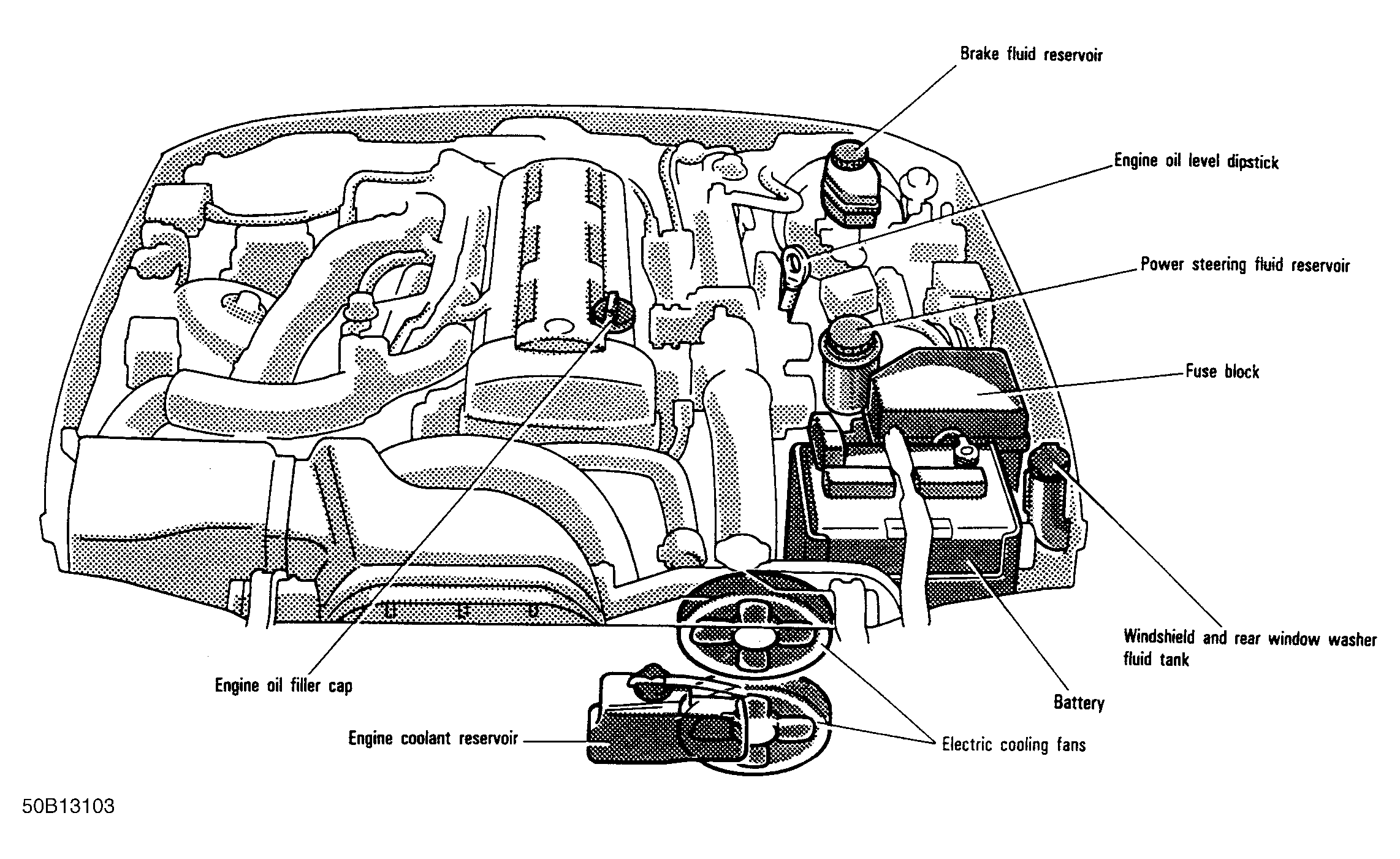

Fig 2: Service Point Locations (2JZ-GTE Turbo Engine)
G50B13103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

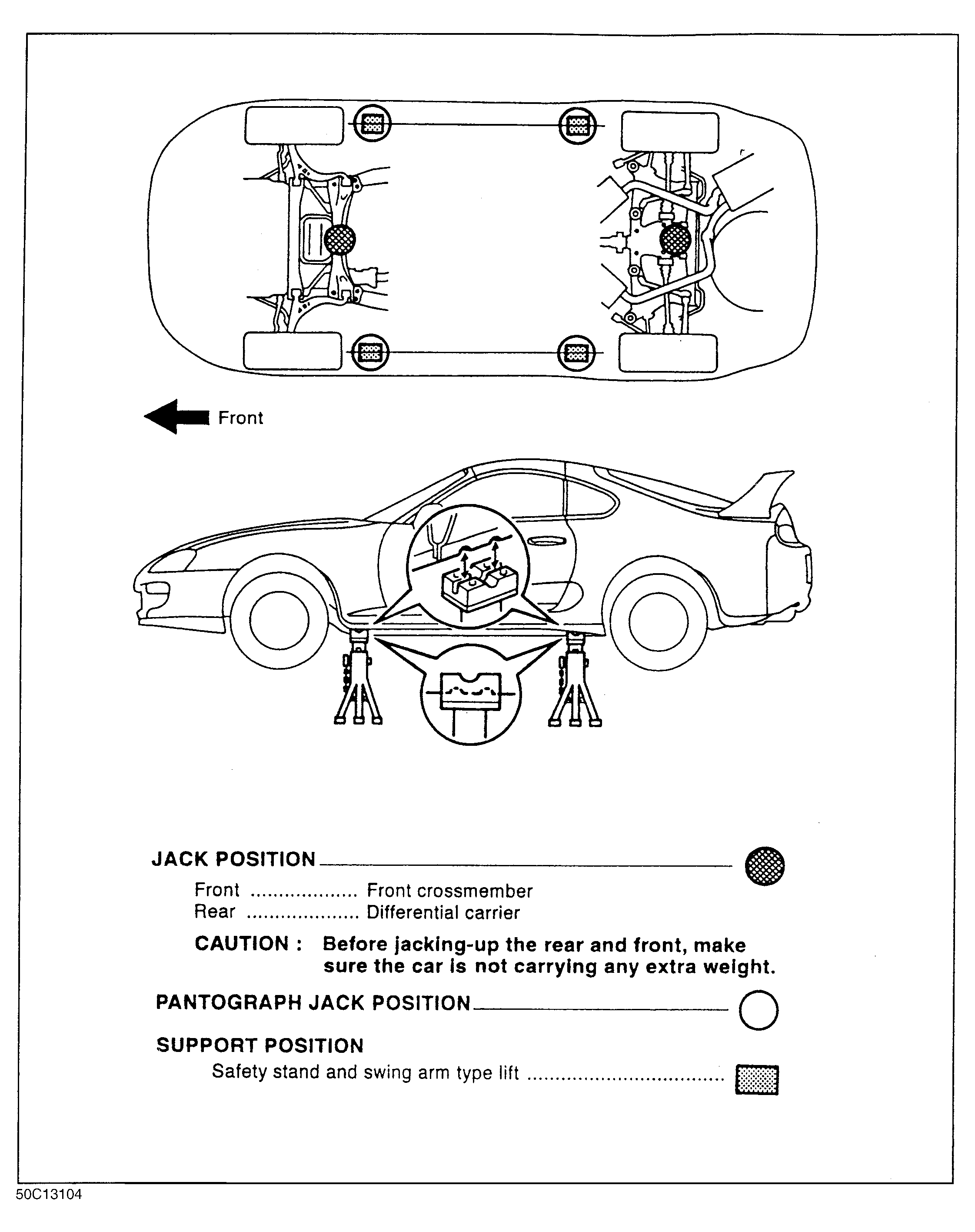

Fig 3: Lift Point Locations
G50C13104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
