Installation (4Runner)

To install, reverse removal procedure using NEW gasket. Tighten fuel pump mounting bracket-to-fuel tank bolts and fuel tank strap bolts to specification. See TORQUE SPECIFICATIONS .
Operate fuel pump and check for fuel leaks. See FUEL PUMP OPERATION under FUEL SYSTEM in appropriate BASIC TESTING article.

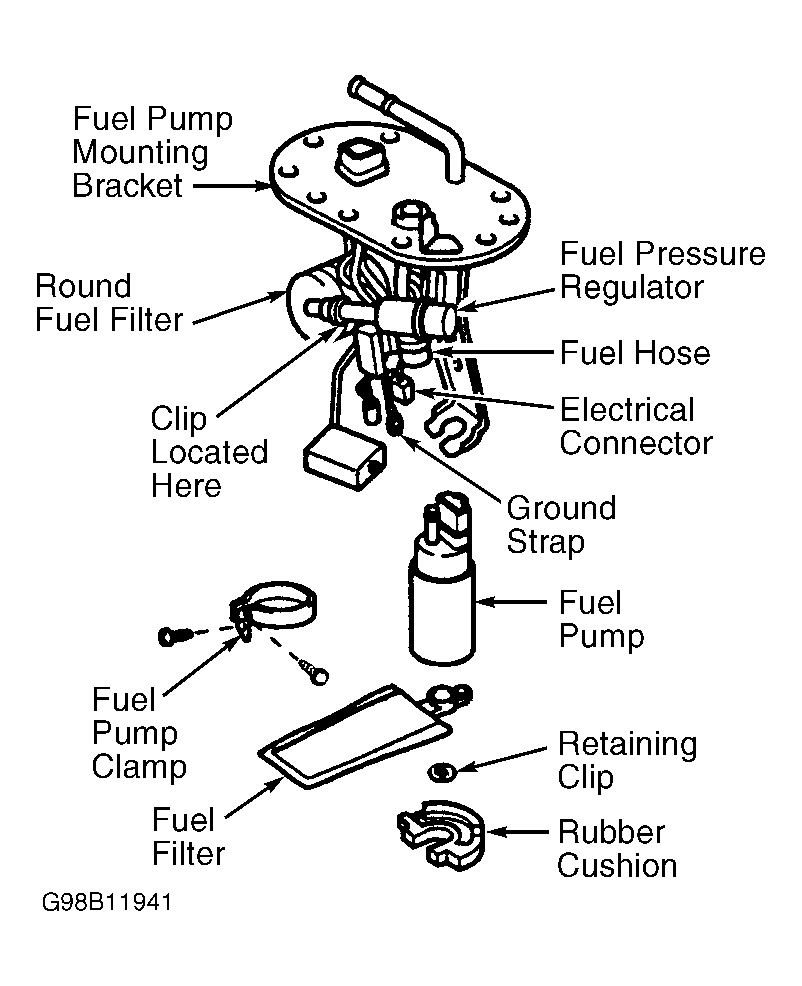

Fig 1: Exploded View Of Fuel Pump & Components (Celica)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

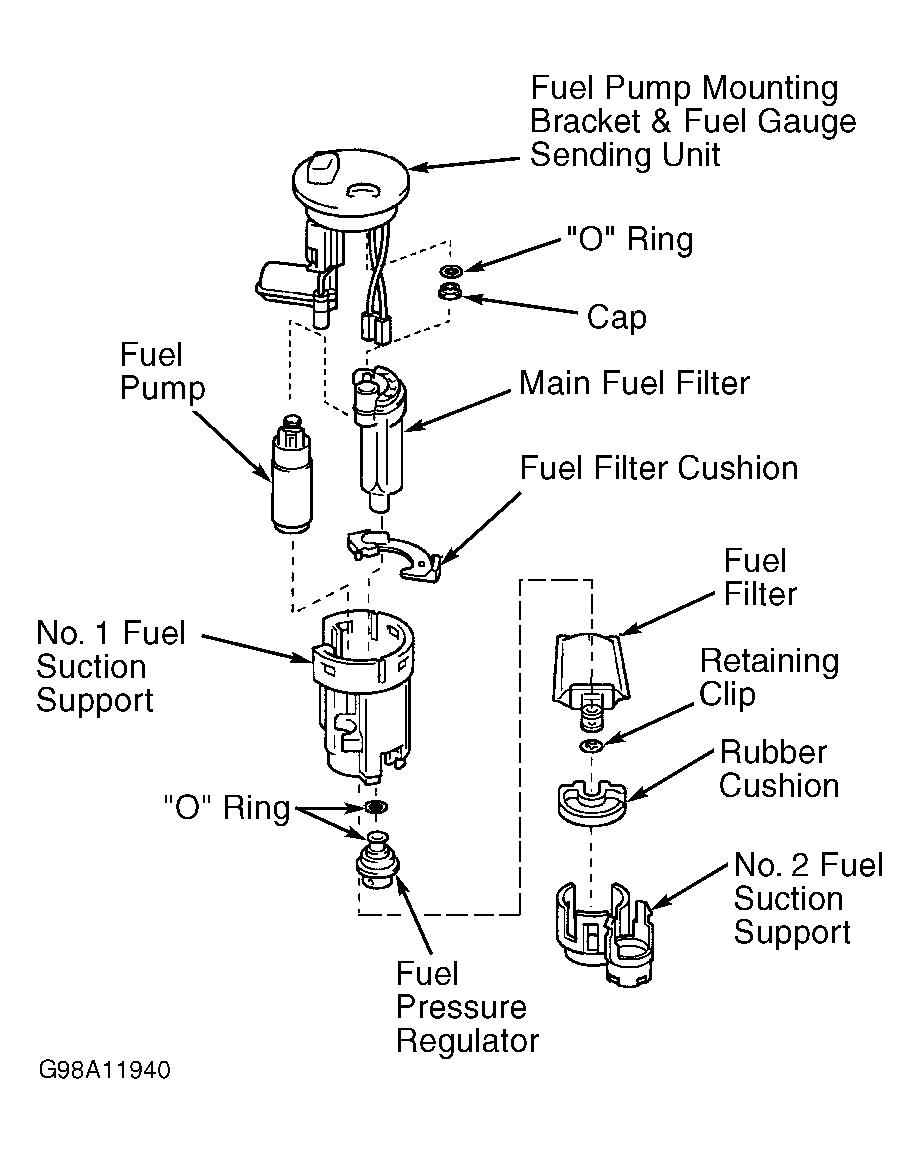

Fig 2: Exploded View Of Fuel Pump & Components (Corolla)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

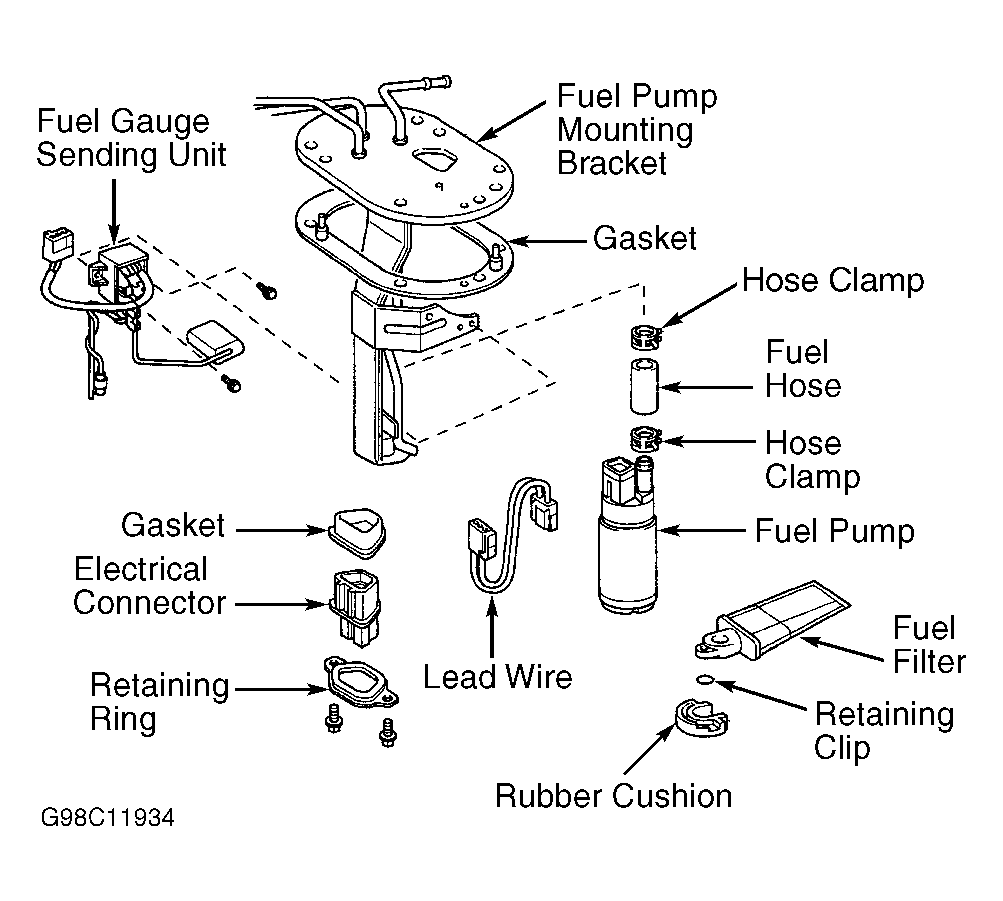

Fig 3: Exploded View Of Fuel Pump & Components (RAV4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Exploded View Of Fuel Pump & Components (Tacoma)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Exploded View Of Fuel Pump & Components (Tercel)

Fig 6: Exploded View Of Fuel Pump & Components (T100)

Fig 7: Exploded View Of Fuel Pump & Components (4Runner)
