Camshaft Position Sensor (Ignition System): Installation

To install, reverse removal procedure using NEW gaskets and NEW "O" rings. Tighten bolt/nuts and fuel pulsation damper to specification. See TORQUE SPECIFICATIONS . Fill cooling system.

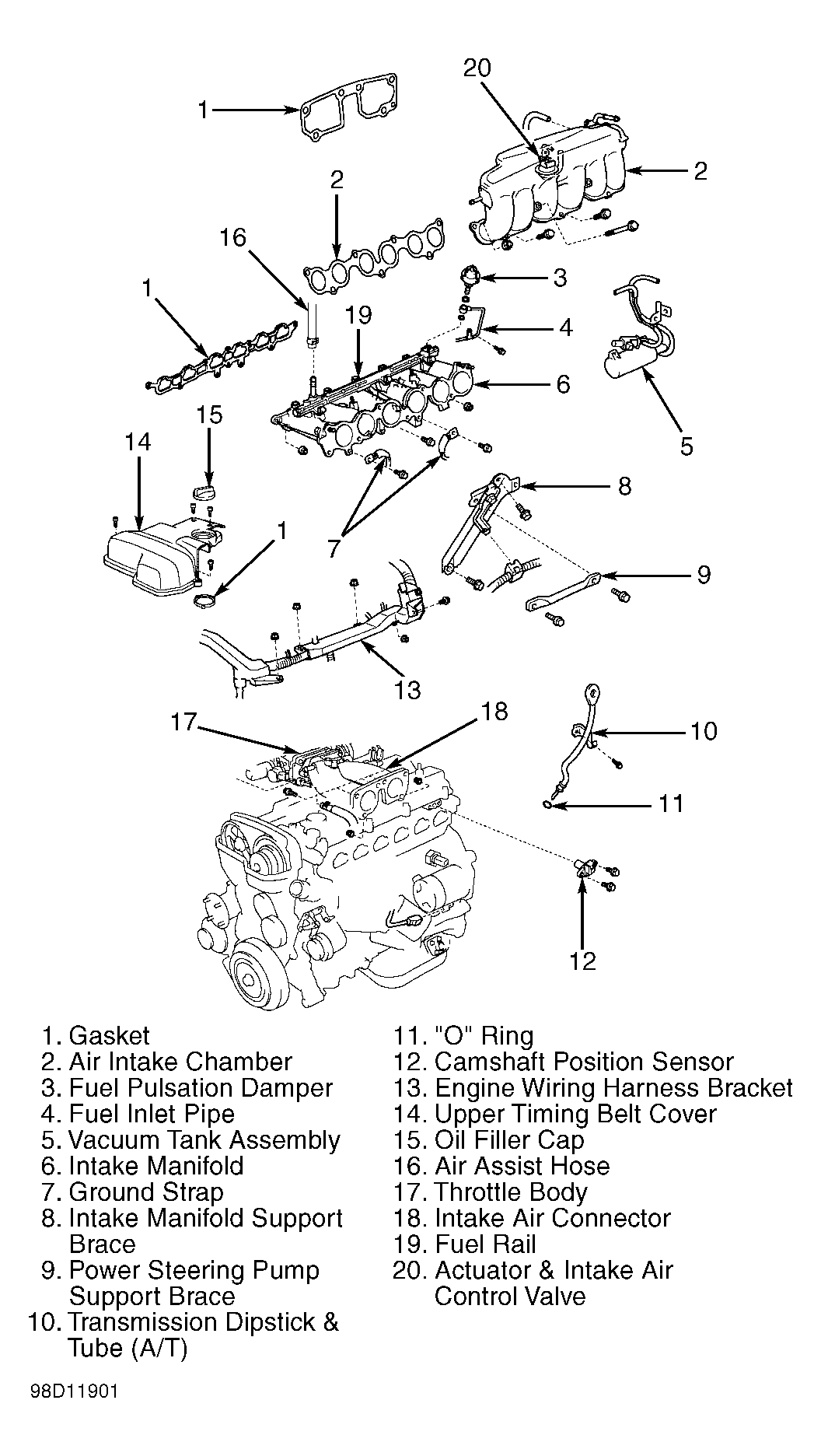

Fig 1: Locating Camshaft Position Sensor, Air Intake Components & Fuel Rail (Non-Turbo)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
