Solenoid Resistor (Turbo)

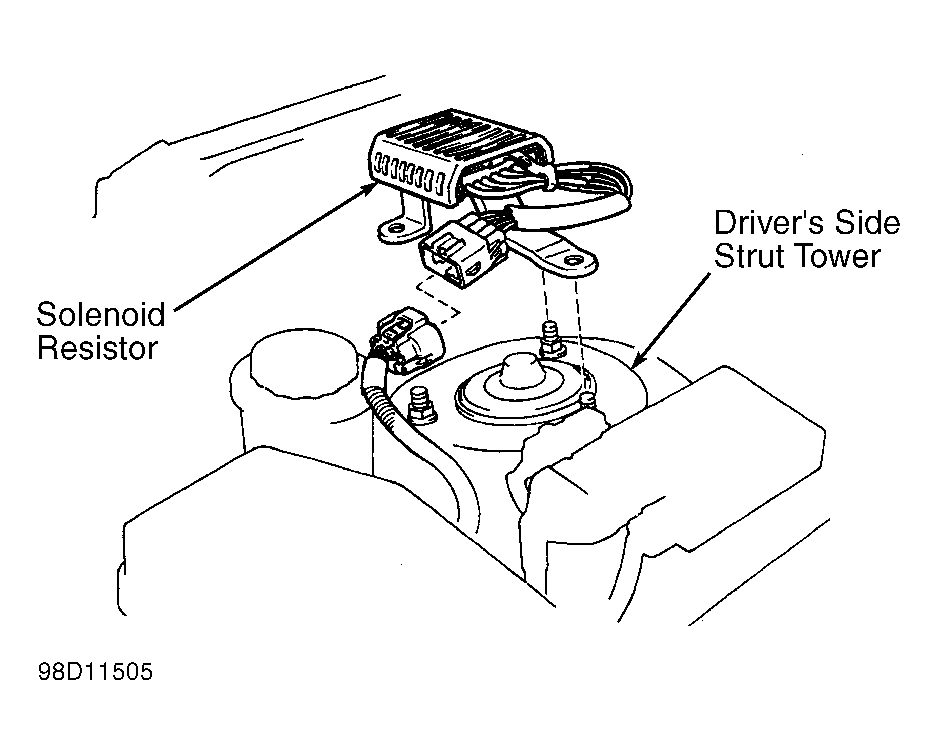

- Solenoid resistor is bolted on top of driver's side front strut tower. See Fig 1. Ensure ignition is off.
- Disconnect electrical connector at solenoid resistor. Using ohmmeter, check resistance between electrical terminal +B and remaining electrical terminals on solenoid resistor. See Fig 2. Replace solenoid resistor if resistance is not 6 ohms at 68°F (20°C).
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
