Control Units
CONTROL UNITS

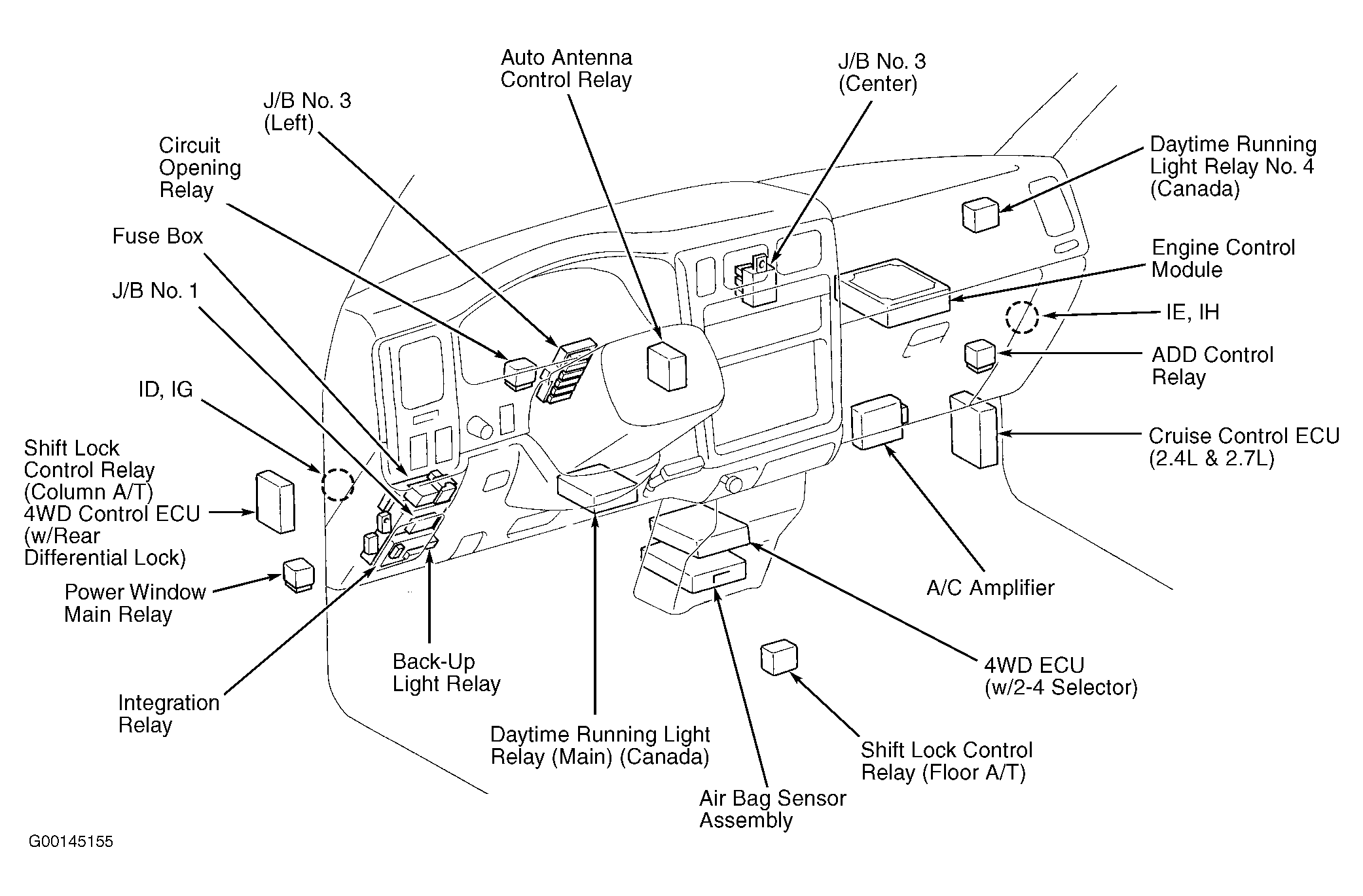

| Component | Component Location |
|---|---|
| ABS Actuator W/ ECU | On right rear of engine compartment. See Figure. |
| A/C Amplifier | Behind right side of dash. See Figure. |
| Air Bag Sensor Assembly | Below center of dash. See Figure. |
| Cruise Control Actuator W/ ECU (3.4L) | On right side of engine compartment. See Figure. |
| Cruise Control ECU (2.4L & 2.7L) | On right kick panel. See Figure. |
| Engine Control Module | Behind right side of dash. See Figure. |
| 4WD Control ECU (W/ Rear Differential Lock) | On upper left kick panel. See Figure. |
| 4WD ECU (W/ 2-4 Selector) | Below center of dash. See Figure. |
